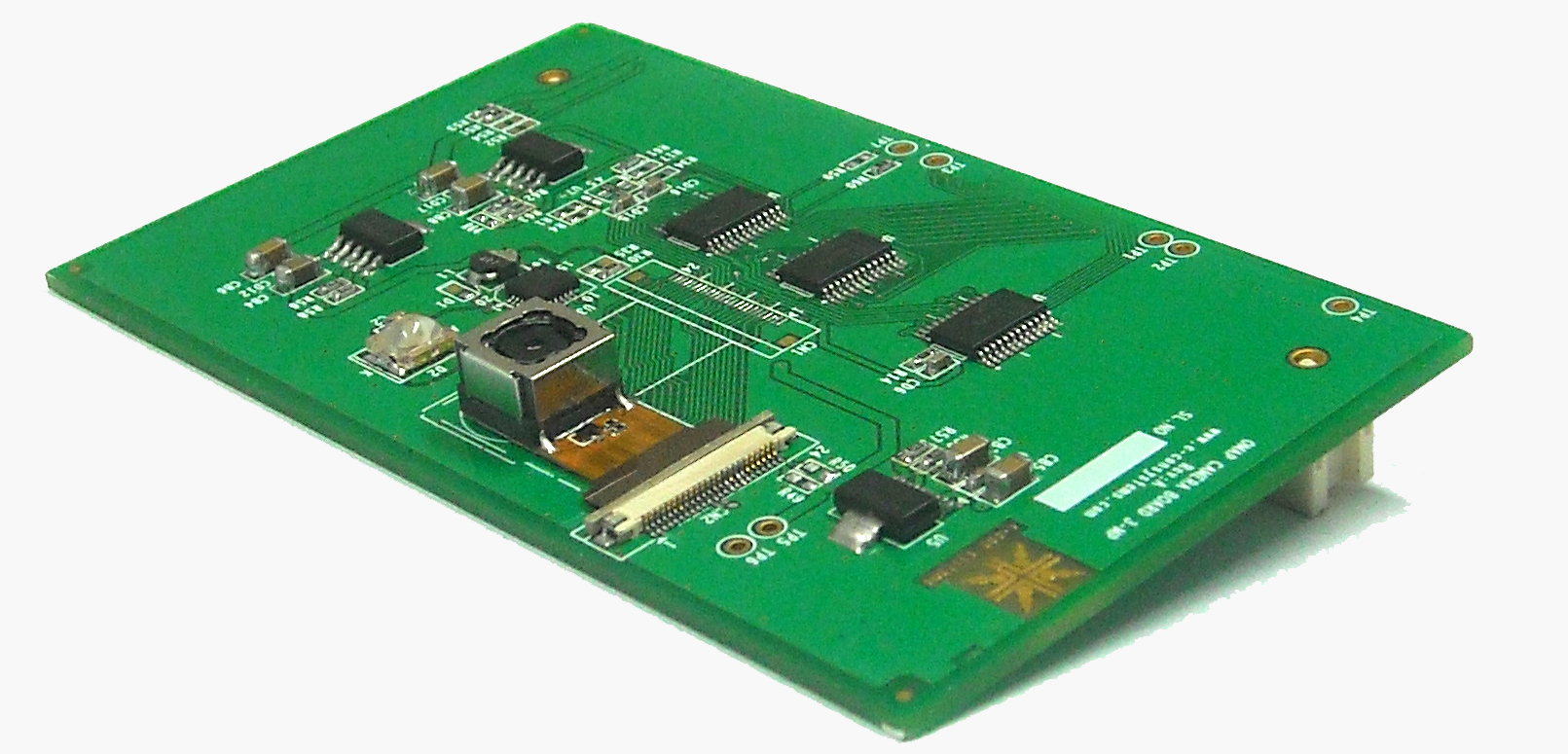

e-CAM Camera Sensor Module |
|
|
|
|
| e-CAM is e-con Systems’ ready to use, plug and play daughter module, which can be interfaced with any CPU that supports YUV422 interface. e-CAM supports 1.3Megapixel fixed focus and 2Megapixel auto focus CMOS image sensor modules. |
| To help customers speed up to the market, e-con has mounted this camera sensor as a “add on” module. Customers can buy this daughter card along with driver dll, driver API and the view finder application source for a one time license fee from e-con systems. E-con has successfully interfaced this module with its PXA270 reference design and also on Karo’s Triton starter kit 3 and starter kit 4. In addition to this, e-con is ready to do custom designs for customers interested in CMOS image sensors other than those provided by e-con. |
|
| Applications |
|
Still image / Video capture |
|
Video surveillance |
|
Video conferencing |
|
Facial recognition |
 |
1D / 2D bar code scanner |
|
|
|
| General Features |
|
Processors supported– PXA270, PXA320 via QCI, AU1250 via CMOS sensor interface |
|
Drivers for Windows CE 5.0/6.0, Windows Mobile and Linux 2.6.x |
|
DirectShow and custom Camera Driver options |
|
JPEG and BMP capture library |
|
Schematics of the module and processor interface is provided |
|
Interface board available for Karo’s Triton PXA270 and Triton PXA320 |
|
Dimensions - PCB (l X b X h) is 30 mm X 34 mm X 1.8 mm |
|
|
 |
Evaluation kits |
| Customers willing to evaluate e-CAM can purchase the PXA270 reference platform or Triton-CAM if they are using Karo's PXA320. Also interface boards are available for AU1250. |
For further information, please write to  . |
|
|
|
| |
|
|
|
|
|
| 2 Megapixel Camera module specifications |
|
Micron 2 Megapixel auto focus sensor |
|
Supports flash |
|
User selectable 16 Auto Focusing regions |
|
Supports simultaneous preview and capture mode |
|
Supports frame rate of up to 15fps @ 1680x1024 |
|
Max Data rate of 80MB/sec, SNR of 42.3dB |
|
Operates from -30 to +70 degrees. Storage at -40 degrees |
|
Sample Application supports Brightness control, White Balancing, Auto Exposure, Auto/Manual focus etc. |
|
Low light mode settings available |
|
|
|
| |
| 1.3 Megapixel camera module specifications |
|
Omnivision 1.3 Megapixel CMOS image sensor. |
|
Supports resolutions up to 15fps @ 1280x1024. |
|
Fixed focus camera module of focal length variable between 5cm - 50cm. |
|
Capture rates - QVGA@30fps, VGA@15fps, SXGA @5 fps |
|
SNR of 40 dB |
|
|
|
|
|
|
|
e-CAM on Sirius
