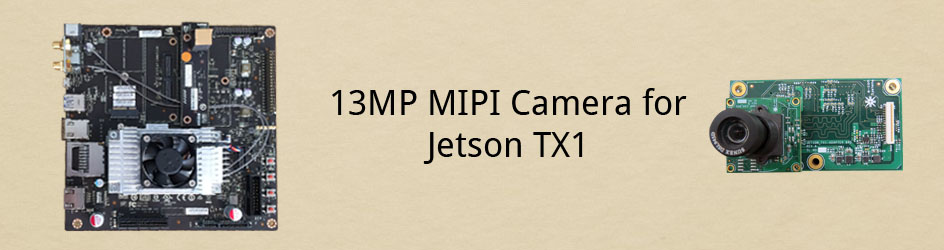

Our 13 MP MIPI camera board for NVIDIA® Jetson TX1 development kit is based on our camera module e-CAM130_CUMI1820_MOD. This e-CAM130_CUMI1820_MOD is based on OnSemi’s AR1820HS MIPI CSI-2.0 sensor.
Some of the key features of our 13MP MIPI Camera are:
- Auto/Manual exposure support along with ISP functions such as brightness, saturation, gain, sharpness etc.
- 4 lane MIPI CSI-2.0 interface
- Maximum data transfer rate of 13MP at 20 fps.
- Also supports 4K UHD at 30 fps and 1080p at 60 fps.
- Support for Face detection and smile detection as an add-on feature
- S-mount lens holder for interchangeable lenses as per requirement
- Supported output formats – YUV422
The Jetson TX1 is the most powerful today and updated sibling of the Jetson TK1 from NVIDIA containing the latest TX1 SoC. Previously we launched our Camera board for the Jetson TK1 – e-CAM130_CUTK1 was highly appreciated by customer and became popular. Now we have brought this same camera module with an even smaller form factor.
Featuring the support for upto 6 MIPI CSI-2.0 cameras, 32 bit and 64 bit processing on ARM® Cortex® -A57 MPCore (Quad-Core) processor, Jetson TX1 can be very useful for building drones and autonomous robot systems etc. With our camera supporting high resolution camera, will be a perfect accessory with the Jetson TX1 for high resolution imaging and high speed processing. Along with the high processing capabilities of the TX1, a full sized product could be completed with unparalleled ease.
Checkout the following video demonstrating the camera working on the Jetson TX1 kit.
We also provide options to camera customization with your own sensors if necessary. Please contact sales@e-consystems.com with your requirements and we’ll get back to you.
Dilip Kumar is a computer vision solutions architect having more than 8 years of experience in camera solutions development & edge computing. He has spearheaded research & development of computer vision & AI products for the currently nascent edge AI industry. He has been at the forefront of building multiple vision based products using embedded SoCs for industrial use cases such as Autonomous Mobile Robots, AI based video analytics systems, Drone based inspection & surveillance systems.
11 comments
How can three of these cameras be hooked up? Your board seems to plug in to camera connector with no provision for expansion.
Is it supported by v4l?
Hi Ina,
This adapter board is only meant for testing a single MIPI camera. However we do have another prototype board available for the Jetson TX1 which supports connecting multiple cameras (upto 6). It should be launched shortly. Watch our blog page for more updates.
And yes, the camera can be accessed using any V4L2 application.
Check this page for info on connecting multiple cameras on the Jetson TX1.
https://www.e-consystems.com/blog/camera/products/6-mipi-csi-2-cameras-support-for-jetson-tx1/
Where can I buy these cameras in China?
Firstly, We haven’t launched this camera yet. Our team is working on it, We will be launching it very soon. Secondly, we don’t have any distributors/Suppliers in China but you can purchase it directly from our Webstore once it gets launched. We ship products to China.
We have launched e-CAM130_CUTX1 – 13MP MIPI CSI-2 Camera for Jetson TX1. Please check our online store: https://www.e-consystems.com/webstore.asp#130CUTX1
Dear Sales, I want to learn “13MP MIPI CSI-2 Camera for Jetson TX1” price.
and I’m from Turkey. Could you dispatch via USPS? Regards
Dear Emrah,
We haven’t finalized the price for this product yet. Our product team is working on it. We do ship products to Turkey. We use Fedex/UPS/DHL for shipping. Please write to sales@e-consystems.com for more information.
We have launched e-CAM130_CUTX1 – 13MP MIPI CSI-2 Camera for Jetson TX1. Our camera product price is US$299(with out lens) & US$349(with lens). Please check our online store: https://www.e-consystems.com/webstore.asp#130CUTX1
Are you any closer to launching this 13MP MIPI CSI-2 Camera for Jetson TX1
Hi robert,
We have launched the 13MP MIPI camera for TX1. Kindly check the following link :
https://www.e-consystems.com/13mp-nvidia-jetson-tx1-camera-board.asp
