e-CAM50_CURB- 5MP AR0521 Raspberry Pi 4 Color Camera

Raspberry Pi 4 Cameras

Highlights

  • Houses e-CAM55_CUMI0521_MOD - 5.0 MP Camera Module with S-mount lens holder
  • High-speed MIPI CSI-2 interface to connect with the CPU
  • Plugs in to Raspberry Pi 4 kit
  • Multi-board solution

Sample Price

ContactUs

Documents

Download Document

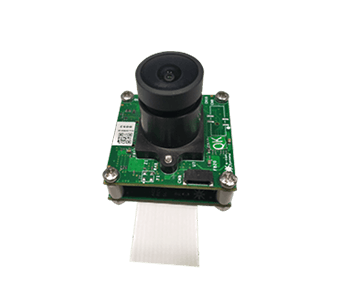

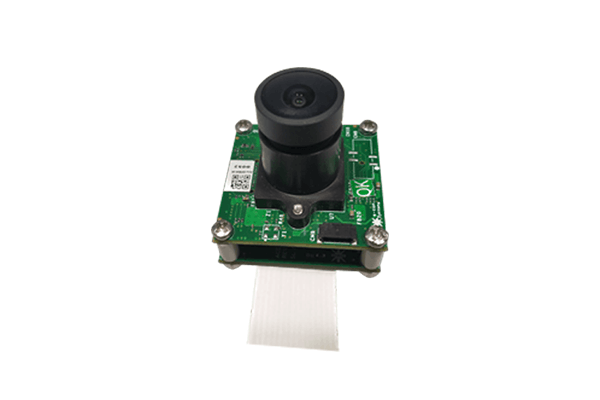

e-CAM50_CURB is a 5MP MIPI CSI 2 color camera for the Raspberry Pi 4 kit. It is based on the 1/2.5" AR0521 CMOS color image sensor from onsemi®.

This compact and low-power yet high-performance 5 MP camera module also has a built-in ISP, which has been fine-tuned to ensure the best image quality from the sensor. Hence, the e-CAM50_CURB is perfect for building next-generation AI-powered embedded vision applications.

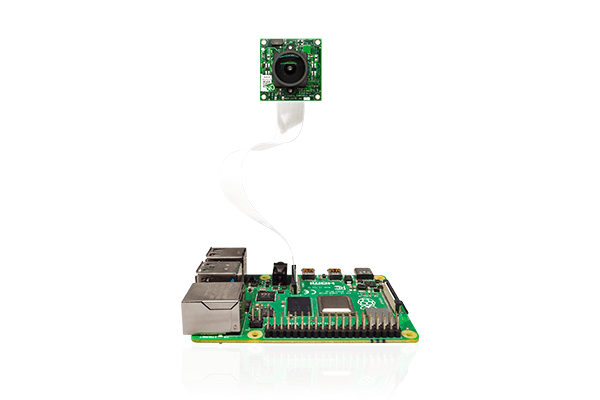

The camera module can be directly connected to the Raspberry Pi 4 development kit using a 15-cm FPC cable. It is capable of uncompressed streaming data at a high resolution of HD (1920x720) at 120fps, FHD (1920x1080) at 65fps and 5 MP (1920x1080) at 60 fps. This camera also has an M12 lens holder (S-mount) - allowing customers to use their preferred lens.

Refer pdfDatasheet  for more details.

  • Key features:
    • Frame Rate: HD @ 100fps, Full HD @ 65fps & 5MP @ 28fps
      Refer pdfDatasheet for more details.
    • Uncompressed UYVY streaming
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: MIPI CSI-2
    • Connector: FPC flex cable
    • Cable Length: 15cm
  • Module features:
    • Sensor: AR0521 from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: 5MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/2.5"
    • Output Format: Uncompressed UYVY format
    • Pixel Size: 2.2μm x 2.2μm
    • Sensor Active Area: 2592H x 1944V
    • Array Size: 2592H x 1944V
    • Responsivity: 18.8 Ke-/luxsec
    • SNR: 40 dB
    • Dynamic Range: 74.3 dB
    • Holder: M12 (S-Mount)
    • FOV: 140.5°(D), 110°(H), 82°(V) (with the lens provided by e-con)
  • Electrical and Mechanical:
    • Operating Voltage: 3.3V +/- 5%
    • Operating Temperature Range: -30°C to 70°C
    • Typical power consumption: 1.65W
    • Size in mm (l x b x h): 30mm x 30mm
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
Linux camera driver:

The e-CAM50_CURB is a MIPI 2-lane camera and it requires a custom camera driver for Raspberry Pi 4 kit. e-con Systems® provides the camera driver along with the camera board

  • V4L2 Linux driver for MIPI CSI-2 camera module:
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
    • yocto build support with econ camera driver and user space application integrated
  • Camera Controls:
    • Brightness
    • Contrast
    • Saturation
    • White balance
    • Gamma
    • Gain
    • H Flip
    • V Flip
    • Sharpness
    • Exposure
    • ROI size
    • Denoise
    • Exposure Compensation
    • Pan
    • Tilt
    • Zoom
  • Please contact camerasolutions@e-consystems.comfor any customization or porting of camera driver to your requirements.
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download 18MP Camera Documents

e-CAM50_CURB
  • Hardware
    • e-CAM55_CUMI0521_MOD - 5 MP AR0521 MIPI camera module
    • Adaptor board
    • Base board
    • FPC cable
    • Lens (optional)
  • Software
    • Linux
      • prebuild yocto and Raspbian images for out of the box Evalution
      • V4L2 - Linux driver source code
