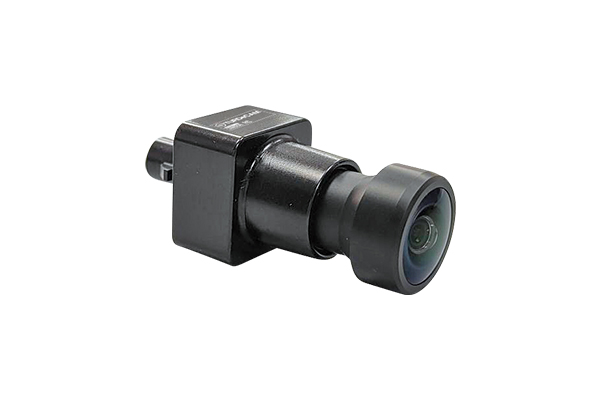

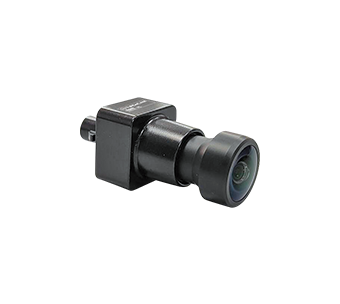

The world's smallest automotive camera, STURDeCAM84 is an 8MP GMSL2 Automotive grade (IP69K) HDR camera powered by onsemi AR0823 sensor. This 4K miniature camera stands out with its remarkable features, including super-exposure pixel technology that provides up to 150 dB high dynamic range (HDR) with LED flicker mitigation (LFM) operation. Its 150dB HDR capability ensures reliable images even in challenging outdoor light conditions. This camera, which comes with an IP69K-rated enclosure, is supplied with an IP69K M12 lens that is focused and glued at the factory. Additionally, this camera supports both 3-meter and 15-meter coaxial cables.
Refer
Datasheet for complete frame rate details.
- Key features:
-
- Frame Rate:
- 8MP @ 30 fps
Datasheet for complete frame rate details.
- Output format: RAW 12-bit
- GMSL2 Interface to transmit power and data up to 15m
- IP69K Automotive grade enclosure
- S-mount IP69K complaint lens focused and glued at factory
- Light weight, versatile and portable design
- Frame Rate:
- Interface:
-
- Interface: GMSL2
- Connector: FAKRA connector
- Cable Length: upto 15m
- Sensor features:
-
- Sensor: AR0823AT from onsemi®
- Focus Type: Fixed focus
- Sensor Resolution: 8.3MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/1.8"
- Output Format: RAW 12-bit
- Pixel Size: 2.1μm x 2.1μm
- Sensor Active Area: 3840 (H) ×2160 (V)
- Array Size: 3840 (H) ×2160 (V)
- Holder: M12 (S-Mount)
- FOV: 140.1° (D) x 121.2°(H) x 67.2° (V) (with the lens provided by e-con)
- Electrical & Mechanical:
-
- Operating Voltage: 5 to 15V with +/- 5% tolerance
- Operating Temperature Range: -40°C to 80°C
- Power requirements: TBD

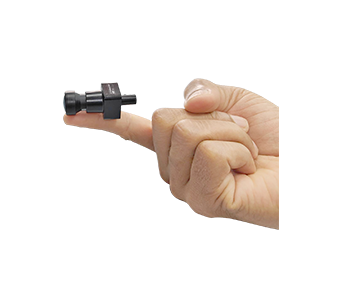

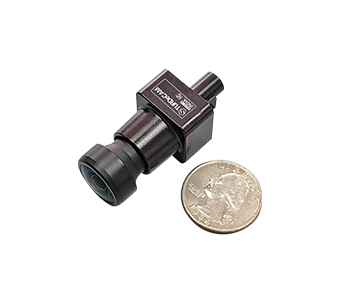

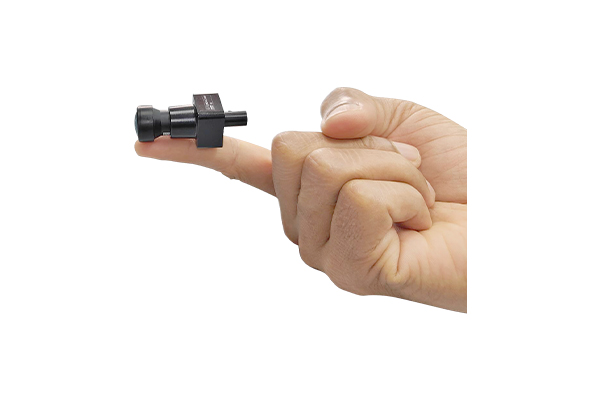

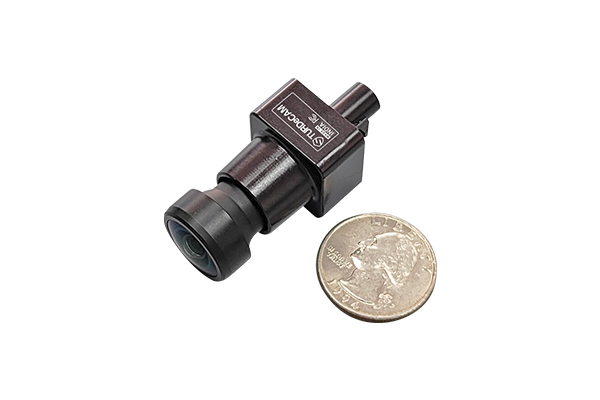

- World's Tiniest 4K Automotive Camera - Size in mm (l x b): 20.8mm x 20.8mm (with IP69K Enclosure)
- Miscellaneous:
-
- Compliance: RoHS
- Compliant with Road vehicles and Automotive standards
| Product Code | Supported Platforms | Sample Price (1 Unit) |
|---|---|---|
STURDeCAM84_CUOAGX Kit Contents
|
NVIDIA® Jetson AGX Orin / Xavier™ Dev Kit |
|
STURDeCAM84_CUONXKit Contents
|
NVIDIA® Jetson ORIN™ NX / Nano Dev Kit |
|
STURDeCAM84_CUOAGX-NVIDIA® Jetson ORIN™ NX / Nano Dev Kit
STURDeCAM84_CUONX-NVIDIA® Jetson AGX Orin™/ AGX Xavier™ Dev Kit
STURDeCAM84 - Customization for other Application Processor platforms:
e-con Systems® provides camera driver development, customization and porting services for STURDeCAM84 on any application platform as per customer requirements.
STURDeCAM84 - Customization:
e-con provides customization for the following requirements:
- IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
- Length of the co-axial cable
- Change of lens to meet your FOV and other requirements
- Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
- Support for other processor platforms
- Camera and feature customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
