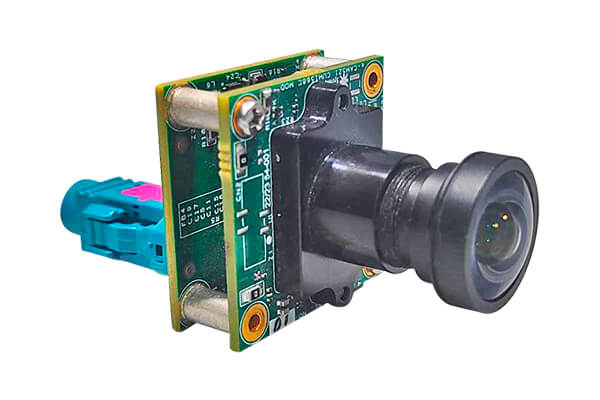

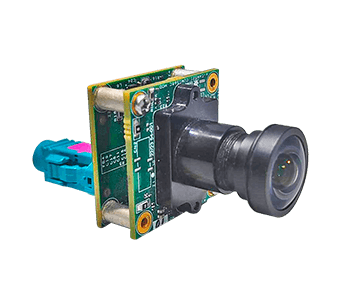

The NileCAM56_CUOAGX is a high-performance 5MP camera module designed for seamless integration with the NVIDIA® Jetson AGX Orin™ developer kit. Built on the 1/1.8" Sony Pregius S IMX568 back-side illuminated image sensor, this camera delivers exceptional image quality with superior low-light performance.
Featuring a GMSL2 interface, the NileCAM56_CUOAGX ensures high-speed, long-distance data transmission with minimal latency. Its global shutter technology eliminates motion blur, making it ideal for capturing fast-moving objects with precision.
This makes the NileCAM56_CUOAGX an excellent choice for applications such as automatic number plate recognition (ANPR), traffic monitoring, factory automation, and conveyor monitoring.
Refer
Datasheet for complete frame rate details.
- Key features:
-
- Frame rate: Full HD @ 109 fps, 5MP @ 60 fps
ReferDatasheet for complete frame rate details.
- Output Format: YUV(NV12)
- High-speed MIPI CSI-2 interface to connect with the CPU
- S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements.
- Lightweight, versatile, and portable design
- Frame rate: Full HD @ 109 fps, 5MP @ 60 fps
- Interface:
-
- Interface: GMSL2
- Connector: FAKRA connector
- Cable length: 15m
- Module features:
-
- Sensor: : Sony® Pregius S IMX568
- Focus Type: Fixed focus
- Sensor Resolution: 5MP
- Chroma: Color
- Shutter Type: Global Shutter
- Optical Format: 1/1.8"
- Output Format: RAW Bayer
- Pixel Size: 2.74μm x 2.74μm
- Sensor Active Area: 2472 (H) x 2064 (V)
- Array Size: 2472 (H) x 2128 (V)
- Holder: M12 (S-Mount)
- FOV: 120°(D), 104.8°(H), 58.7°(V) (with the lens provided by e-con)
- Electrical and Mechanical:
-
- Operating Voltage: 12V+/- 250mV
- Operating Temperature Range: -30°C to 70°C
- Typical power consumption: TBD
- Size in mm (l x b) :
- Serializer board: 30 x 30 mm
- Deserializer Board - 80.8 x 55 mm
- Miscellaneous:
-
- Compliance: RoHS
- Linux camera driver:
- Supported Jetpack & L4T Version:
-
- NVIDIA® Jetson AGX Orin™ - JetPack 6.2.0 L4T36.4.3
- V4L2 Linux driver for MIPI CSI-2 camera module:
-
- Video preview
- Still Image capture
- Camera controls via IOCTLs
- Sample application with source Code for Linux:
-
- Video Preview
- Still Image capture at selected resolutions
- Camera Controls:
-
- Exposure Time Range
- Gain Range
- ISP Digital Gain Range
- Sensor Mode Index
- Frame Rate Range
- De-Noise Mode
- De-Noise Strength
- Edge Enhance Mode
- Edge Enhance Strength
- Auto Exposure (AE) Antibanding Mode
- Auto White Balance (AWB) Mode
- AE Lock
- Trigger
- Trigger Frequency
- AWB Lock
- Output Size
- Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.

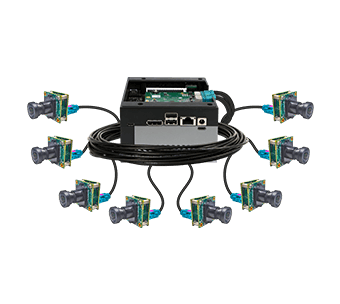

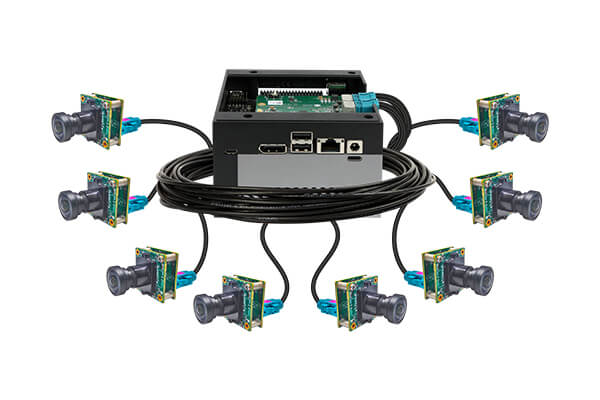

Full-fledged Linux camera driver for NileCAM56_CUOAGX with NVIDIA® Jetson AGX Orin™ developer kit. The camera driver source code can be ported to any NVIDIA AGX Orin platform.
NileCAM56_CUOAGX - Customization and Porting Services for other Application Processor platforms:
e-con Systems™ provides camera driver development, customization and porting services for NileCAM56_CUOAGX on any application platform as per customer requirements.
NileCAM56_CUOAGX - Customization:
e-con provides customization, development and porting services for the following requirements:
- IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
- Length of the co-axial cable
- Change of lens to meet your FOV and other requirements
- Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
- Support for other processor platforms
- Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
