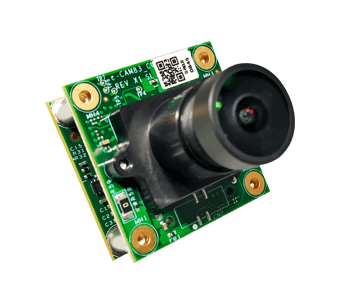

NileCAM85 - Sony® Starvis IMX715 GMSL2 Camera Module (15m cable support)

• Key features:
• • Frame Rate: Streams 4K @ 30fps
    Refer Datasheet for complete frame rate details.
  • Output format: Uncompressed RAW10/RAW12 format
  • S-mount lens holder for flexibility to choose a lens as per application requirements
  • Lightweight, versatile, and portable design
• Interface:
• • Interface: GMSL2
  • Connector: FAKRA connector
  • Cable Length: 15m
• Sensor features:
• • Sensor: IMX715 from SONY® STARVIS
  • Focus Type: Fixed focus
  • Sensor Resolution: 8MP
  • Chroma: Color
  • Shutter Type: Electronic Rolling Shutter
  • Optical Format: 1/2.8"
  • Output Format: RAW 10/12-bit
  • Pixel Size: 1.45μm x 1.45μm
  • Sensor Active Area: 3848(H) x 2168(V)
  • Array Size: 3840(H) x 2160(V)
  • Holder: M12 (S-Mount)
  • FOV: 131° (D), 113° (H), 61° (V) (with the lens provided by e-con)
• Electrical & Mechanical:
• • Operating Voltage: 5 to 15V with +/- 5% tolerance
  • Operating Temperature Range: -30°C to 70°C
  • Typical power consumption: TBD
  • Size in mm (l x b): 30 x 30 mm
• Miscellaneous:
• • Compliance: RoHS
• Launched on:

Part No	Supported Platforms	Sample Price (1 Unit)	Purchase
NileCAM85_CUQRB5 Kit Contents NileCAM85 - IMX715 Camera Module with Lens Deserializer board Three meters coaxial cable	Qualcomm® Robotics RB5 Development Kit



   Datasheet

NileCAM85 - 8MP GMSL2 Camera Module Product Specification

NileCAM85 - Customization for other Application Processor platforms:

e-con Systems® provides camera driver development, customization and porting services for Nile3CAM85 on any application platform as per customer requirements.

NileCAM85 - Customization

e-con provides customization, development and porting services for the following requirements:

• IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications
• Length of the co-axial cable
• Change of lens to meet your FOV and other requirements
• Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
• Support for other processor platforms
• Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com
