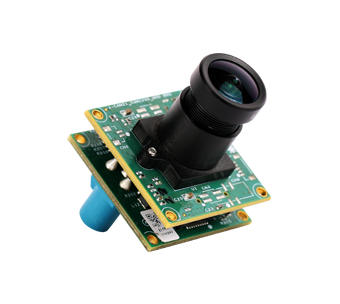

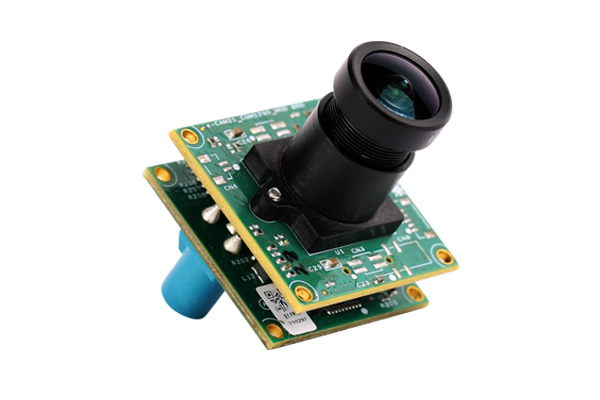

NileCAM210_CUQRB5 is a 2 MP GMSL camera for Qualcomm® Robotics RB5 development kit. It is based on a 1/2.8" Sony® STARVIS IMX462 image sensor which helps in producing excellent images even in low light conditions.

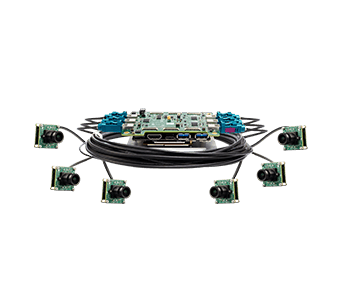

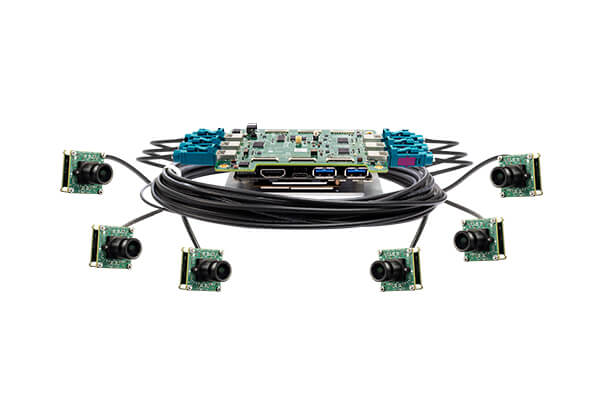

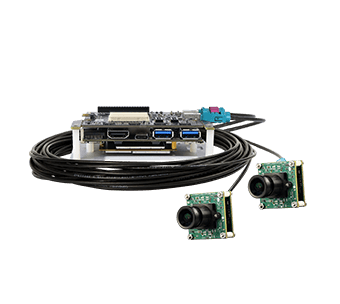

This multi-camera solution supports up to six camera modules with the Qualcomm® Robotics RB5 development kit and is capable of streaming Full HD @ 30fps.
Refer
Datasheet for complete frame rate details.
- Key features:
-
- Frame Rate:
- Streams Full HD @ 30fps
Datasheet for complete frame rate details.
- Uses Qualcomm QRB5165 ISP for image processing
- S-mount lens holder for flexibility to choose a lens as per application requirements
- Lightweight, versatile, and portable design
- Frame Rate:
- Interface:
-
- Interface: GMSL2
- Connector: FAKRA connector
- Cable Length: 3m/15m
- Sensor features:
-
- Sensor: IMX462 sensor from SONY® Starvis
- Focus Type: Fixed focus
- Sensor Resolution: 2MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/ 2.8"
- Output Format: RAW 10/12-bit
- Pixel Size: 2.9 μm x 2.9 μm
- Sensor Active Area: 1945H x 1097V
- Array Size: 1945H x 1109V
- Holder: S-Mount
- FOV: TBD
- Electrical & Mechanical:
-
- Operating Voltage: 5 to 15V with +/- 5% tolerance
- Operating Temperature Range: -30°C to 70°C
- Typical power consumption: TBD
- Size in mm (l x b): serializer board - 30 x 30 mm
- Miscellaneous:
-
- Compliance: RoHS
- Launched on:
- gstreamer based camera application for:
-
- Camera streaming over Ethernet and WIFI (H.264 encoded)
- HDMI streaming (NV12)
- Snapshot image capture in JPEG and RAW Bayer
- H.264 and H.265 encoded video recording
- Camera Controls:
-
- Gamma
- Denoise
- Gain
- Exposure etc.
- Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
| Product Code | Description | Sample Price (1 Unit) |
|---|---|---|
| NileCAM210_CUQRB5_CHLC_1H01R1 |
Single camera with 3M cable & Deserializer board for QRB5165 Dev Kit |
|
| NileCAM210_CUQRB5_CHLC_3H01R1 |
Three camera with 3M cable & Deserializer board for QRB5165 Dev Kit |
|
NileCAM210_CUQRB5_CHLC_1H01R1-Single camera with 3M cable & Deserializer board for QRB5165 Dev Kit
Sample Price (1 Unit)-
NileCAM210_CUQRB5_CHLC_3H01R1-Three camera with 3M cable & Deserializer board for QRB5165 Dev Kit
Sample Price (1 Unit)-
NileCAM210_CUQRB5 - Customization for other Application Processor platforms:
e-con Systems™ provides camera driver development, customization and porting services for NileCAM210_CUQRB5 on any application platform as per customer requirements.
NileCAM210_CUQRB5 - Customization:
e-con provides customization, development and porting services for the following requirements:
- IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications
- Length of the co-axial cable
- Change of lens to meet your FOV and other requirements
- Support for other processor platforms
- Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
