NileCAM80 - 4K SONY® IMX415 GMSL2 Camera Module with 15m cable support

Jetson AGX Orin Cameras | GMSL Cameras

Highlights:

  • Houses 8MP Sony® STARVIS IMX415 Camera Module
  • Ultra-Low light performance
  • Gigabit Multimedia Serial Link 2 (GMSL2) interface with FAKRA connector
  • Shielded coaxial cable to transmit power and data up to 15m
  • Optional IP67-rated enclosure with antifogging capability

Sample Price

ContactUs

Documents

Download Document

Evaluate NileCAM80 with,

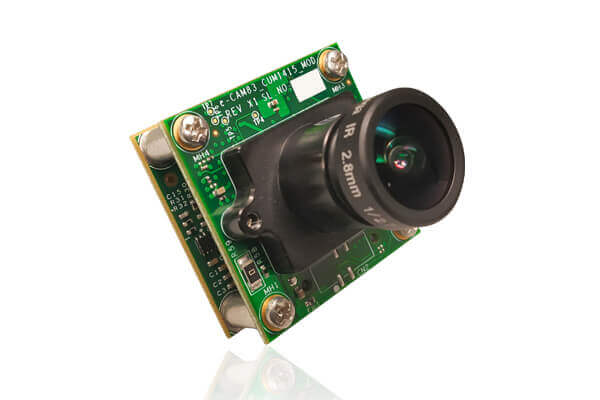

The NileCAM80 is a 4K GMSL 2 camera module based on the Sony® STARVIS IMX415 sensor. This 4K Sony camera features an M12 lens holder, allowing customers to use the lens of their choice. It is ideal for applications requiring wide-area monitoring, such as parking lot management, traffic monitoring systems, smart surveillance, and sports vision.

This GMSL camera streams high frame rate, uncompressed video data at 8MP at 30 fps and 1080p at 60 fps, with very low latency over distances of up to 15 meters.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate: Streams HD @ 60fps, Full HD @ 42 fps, 4K @ 22 fps
      Refer pdfDatasheet for complete frame rate details.
    • Output format: RAW 10-bit
    • S-mount lens holder for flexibility to choose a lens as per application requirements
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GMSL2
    • Connector: FAKRA connector
    • Cable Length: 15m
  • Sensor features:
    • Sensor: IMX415 sensor from SONY® Starvis
    • Focus Type: Fixed focus
    • Sensor Resolution: 8MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/2.8"
    • Output Format: RAW 10-bit
    • Pixel Size: 1.45μm x 1.45μm
    • Sensor Active Area: 3864H x 2192V
    • Array Size: 3864H x 2192V
    • Holder: M12 (S-Mount)
    • DFOV: 131°(D) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 5 to 15V with +/- 5% tolerance
    • Operating Temperature Range: -30°C to 70°C
    • Typical power consumption: TBD
    • Size in mm (l x b): 30 x 30 mm
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
Part No Supported Platforms Sample Price
(1 Unit) 		Purchase
NileCAM80_CUOAGX
Kit Contents

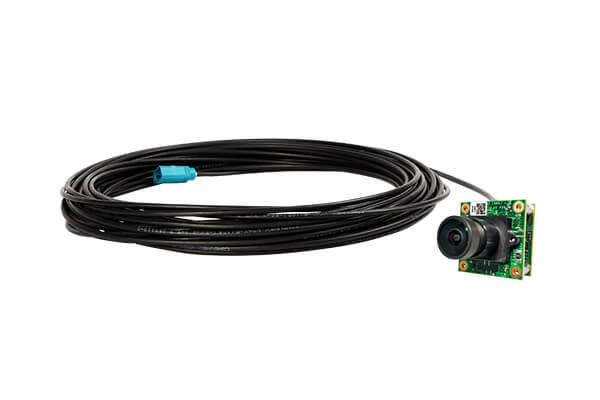

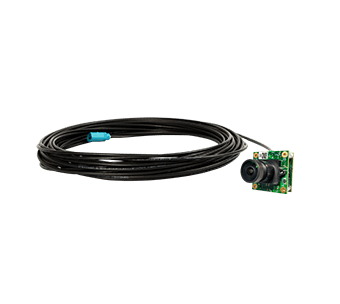

  • NileCAM80 - IMX415 8MP GMSL2 camera
  • Deserializer board
  • 15 meters coaxial cable
 NVIDIA® Jetson AGX Orin™ / AGX Xavier™
-		 ContactUs

NileCAM80_CUOAGX-NVIDIA® Jetson AGX Orin™ / AGX Xavier™

Sample Price (1 Unit)--

ContactUs



 Bullat Arrow  Datasheet

Download Full HD GMSL2 Camera Documents

NileCAM80 - Customization for other Application Processor platforms:

e-con Systems® provides camera driver development, customization and porting services for NileCAM80 on any application platform as per customer requirements.

NileCAM80 - Customization

e-con provides customization, development and porting services for the following requirements:

  • IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other processor platforms
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com

ContactUs
