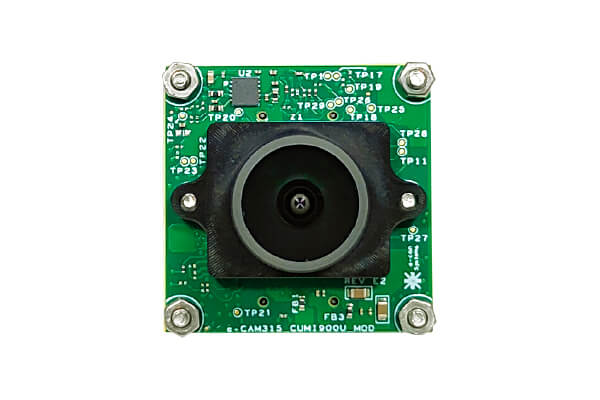

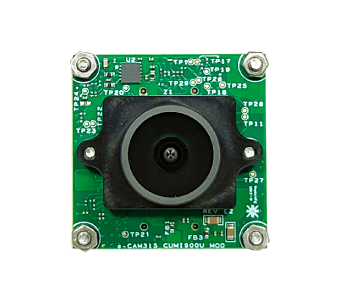

The e-CAM315_CUMI900_MOD is a high-performance 3.2 MP HDR Global Shutter camera module featuring a Pregius S™ Sony® IMX900 CMOS sensor, designed to deliver advanced HDR image quality with exceptional speed. Its global shutter technology ensures superior image capture without motion blur. The e-CAM315_CUMI900_MOD camera module also comes with advanced features such as Fast Auto Exposure for rapid adaptation to lighting changes, 100,000 fps fast capture capability for ultra-high-speed imaging, Quad HDR processing up to 120 dB for superior contrast handling and Self-Trigger Functionality for activity-based automated image capture.
This HDR global shutter camera module seamlessly interfaces with NVIDIA® Jetson AGX Orin™, Jetson Orin™ NX, Jetson Orin Nano™, and Qualcomm® platforms. It is available in both color and monochrome variants. The module offers versatile interface options such as USB, GMSL and MIPI, providing seamless integration capabilities for a wide range of applications.
Fast Auto Exposure
Self Trigger
Quad HDR (Monochrome)
Global Shutter
| Product Name | Interface | Supported Platforms | Max no. of Cameras Supported | Chroma | Documents | Sample Price | |
|---|---|---|---|---|---|---|---|

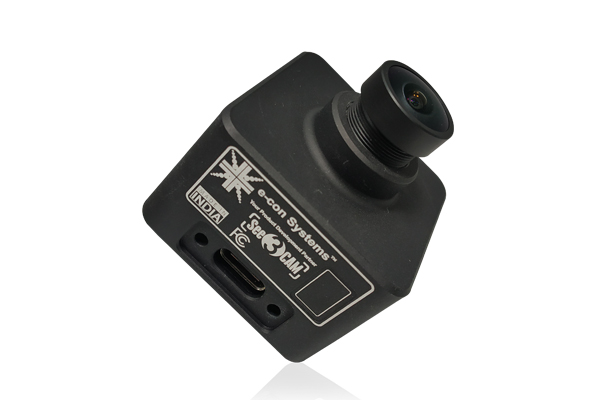

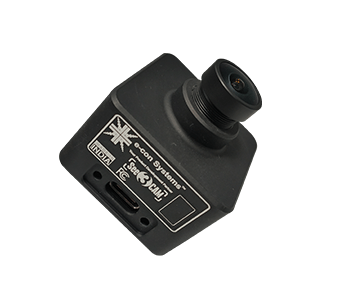

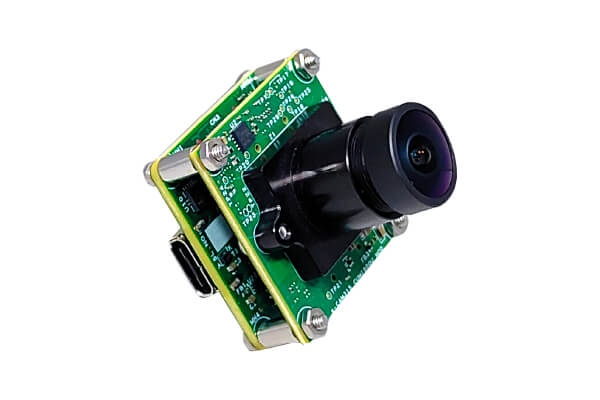

| See3CAM_37CUGM | USB 3.0 | x86, x64, Linux, Industrial PCs | 1 | Monochrome |
|
USD 249 199 |
|
| See3CAM_37CUG | USB 3.0 | x86, x64, Linux, Industrial PCs | 1 | Color | - |
- |
|

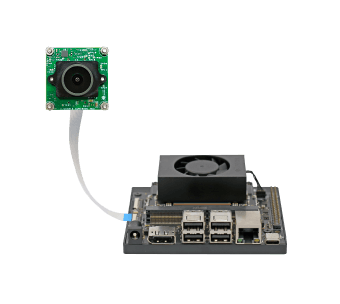

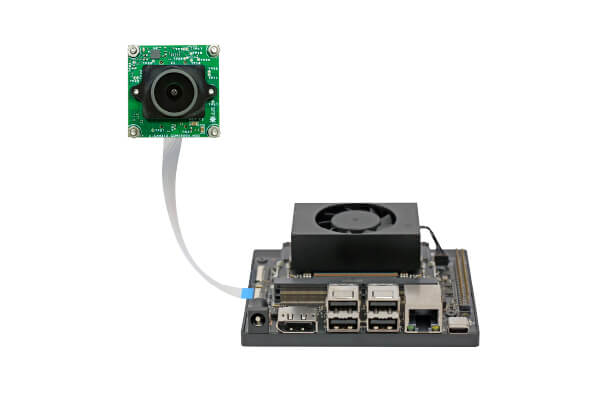

| e-CAM37M_CUONX | MIPI CSI-2 | NVIDIA® Jetson Orin™ NX/Orin Nano™ | 2 | Monochrome |
|
- |
|
| e-CAM37_CUONX | MIPI CSI-2 | NVIDIA® Jetson Orin™ NX/Orin Nano™ | 2 | Color | - |
- |
|
| STURDeCAM37M | GMSL2 | NVIDIA® Jetson AGX Orin™ | 8 | Monochrome | - |
- |
|
| STURDeCAM37 | GMSL2 | NVIDIA® Jetson AGX Orin™ | 8 | Color | - |
- |
|
Offer closes on 07th Mar, 2025
Module Feature :
| Module Features | |
|---|---|
| Sensor | Sony® Pregius S IMX900 |
| Focus Type | Fixed Focus |
| Resolution | 3.2MP |
| Chroma | Color / Monochrome |
| Shutter Type | Global Shutter |
| Optical Format | 1/3.1" |
| Output Format | RAW 8-bit/10-bit/12-bit |
| Pixel Size | 2.25 μm x 2.25 μm |
| Sensor Active Area | 2064 (H) x 1552 (V) |
Key Features :
| Key Features | |
|---|---|
| Frame Rate | Streams 3MP @117fps (10-bit) |
| Output format | RAW 8-bit/10-bit/12-bit |
| Compliance |
|
| Electrical and Mechanical | |
| Operating Voltage | 3.3V ±5% |
| Operating Temperature Range |
|
| Typical Power Consumption (W) |
|
| Size in mm (l x b) |
|
e-CAM315_CUMI900_MOD Documents
