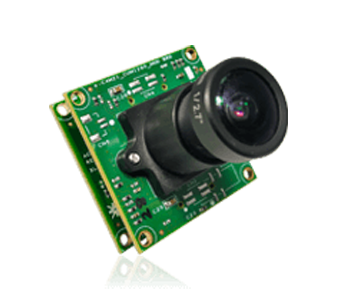

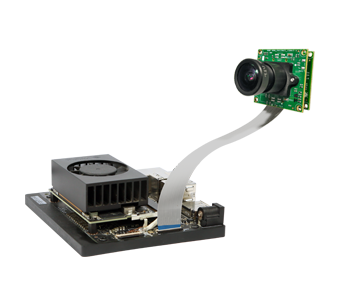

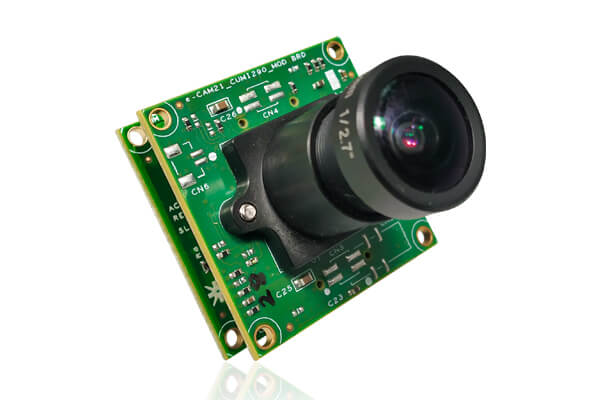

e-CAM22_CUONX is a Full HD ultra-lowlight MIPI camera for NVIDIA® Jetson ORIN NX / ORIN Nano developer kit. This ultra-low light camera is based on the SONY STARVIS™ IMX462 color CMOS image sensor and it can be directly connected with the NVIDIA® Jetson ORIN NX / ORIN Nano developer kit.
e-CAM22_CUONX stands out in its superior near-infrared performance. The high sensitivity of this camera helps to capture images in extremely low lighting conditions as 0 lux, which makes it suitable for night vision applications and medical microscopes.
Refer
Datasheet for complete frame rate details.
- Key features:
-
- Frame Rate:
- HD @ 60 fps, Full HD @ 60fps
Datasheet for complete frame rate details.
- Standard M12 lens holder for use with customized optics or lenses for various applications
- Lightweight, versatile, and portable design
- Frame Rate:
- Interface:
-
- Interface: MIPI CSI-2
- Connector: FPC flex cable
- Cable Length: 30cm
- Sensor features:
-
- Sensor: IMX462 from Sony® Starvis
- Focus Type: Fixed focus
- Sensor Resolution: Full HD
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/2.8"
- Output Format: RAW 12 bit
- Pixel Size: 2.9μm x 2.9μm
- Sensor Active 1937H x 1097V
- Array Size: 1937H x 1097V
- Holder: M12 (S-Mount)
- DFOV: 121.35° (with the lens provided by e-con)
- Electrical & Mechanical:
-
- Operating Voltage: 3.3V +/- 5%
- Operating Temperature Range: -30°C to +70°C
- Typical power consumption: TBD
- Size in mm (l x b x h): 30mm x 30mm
- Miscellaneous:
-
- Compliance: RoHS
- Launched on:
Linux camera driver:
Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's e-CAM22_CUONX on NVIDIA® Jetson Orin NX / Orin Nano™ developer kit.
- Supported Jetpack & L4T Version
-
- NVIDIA® Jetson™ ORIN NX / Orin nano - JetPack 5.1.1 L4T35.3.1
- V4L2 Linux driver for MIPI CSI-2 camera module:
-
- Video preview
- Still Image capture
- Camera controls via IOCTLs
- Sample application with source Code for Linux:
-
- Video Preview
- Still Image capture at selected resolutions
- Camera Controls:
-
- Exposure (both manual and automatic)
- Brightness
- Sensor Gain
- Exposure Time
- Frame Rate
- Sensor Mode Index
- Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
- e-CAM221_CUMI462_MOD - Full HD MIPI Camera Module with lens
- Adaptor board
- Flex Cable (15 cm)
- Linux Driver & Sample Application
- Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
