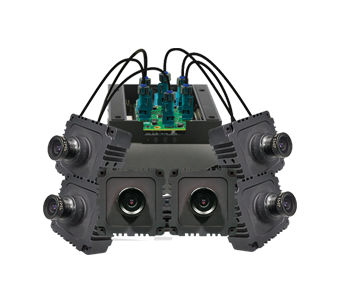

STURDeCAM21_CUOAGX is one of the latest products in the series of IP67-rated cameras from e-con Systems that is compatible with NVIDIA AGX Xavier dev kit and NVIDIA AGX ORIN dev kit. It is a GMSL2 HDR camera that comes with the LFM (Led Flicker Mitigation) feature. Based on the AR0233AT sensor from onsemi, this Full HD camera also comes with a high-performance Image Signal Processor (ISP) which means that it is highly optimized for the best possible image output.
The camera uses the GMSL2 interface to connect to the host and offers a maximum length of 15 meters with a shielded coaxial cable and FAKRA connector. In addition, STURDeCAM21_CUOAGX is a multi-camera solution with the ability to connect up to 8 cameras - making it suitable for pretty much any application that requires a multi-camera setup.
This GMSL2 camera is designed to transfer Full HD data in the uncompressed UYVY format at 30 fps while the VGA resolution can offer a frame rate of 60 fps. Compatibility with NVIDIA AGX Xavier dev kit and NVIDIA AGX ORIN dev kit also makes this camera an ideal solution for some of the most modern embedded vision applications.
Refer
Datasheet for complete frame rate details.
- Key features:
-
- Frame Rate:
- Asynchronous Mode: Full HD @ 30 fps & VGA @ 60 fps
- Synchronous Mode: Full HD @ 30 fps & VGA @ 30 fps
Datasheet for complete frame rate details.
- Output format: Uncompressed UYVY format
- High-speed MIPI CSI-2 interface to connect with the CPU

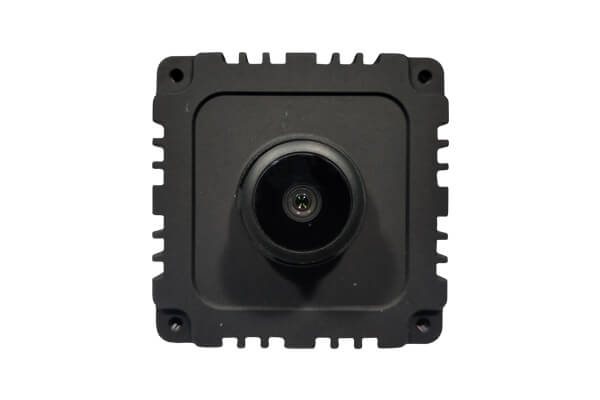

- S-mount IP67 compliant lens focused and glued at our factory
- Lightweight, versatile, and portable design
- Frame Rate:
- Interface:
-
- Interface: GMSL2
- Connector: FAKRA connector
- Cable Length: 15m
- Module features:
-
- Sensor: AR0233AT from onsemi®
- Focus Type: Fixed focus
- Sensor Resolution: Full HD
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/2.5"
- Output Format: Uncompressed UYVY
- Pixel Size: 3μm x 3μm
- Sensor Active Area: 2048(H) X 1280(V)
- Array Size: 2048(H) X 1280(V)
- Responsivity: 30.4 Ke-/lux-sec
- SNR: 43.1 dB
- Dynamic Range: Max up to 140 dB
- Holder: M12 (S-Mount)
- FOV: 113.83°(D), 98.22°(H), 50.34°(V) (with the lens provided by e-con)
- Electrical & Mechanical:
-
- Operating Voltage: 5 to 15V with +/- 5% tolerance
- Operating Temperature Range: -40°C to 85°C
- Typical power consumption: 14.328W (6 cameras streaming condition)
- Size in mm (l x b): 42 x 42 mm
- Miscellaneous:
-
- Compliance: RoHS
- IP67 Certified
- Launched on:
- Linux camera driver:
Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's STURDeCAM21_CUOAGX Jetson developer kit. The camera driver source code can be ported to any NVIDIA® Jetson AGX Orin™ / AGX Xavier™ platform and even to support the secondary MIPI CSI-2 interface of NVIDIA® Jetson AGX Orin™ / AGX Xavier™.
- Supported Jetpack & L4T Version
-
- Jetson AGX Orin™ - JetPack 6.0 L4T 36.3.0
- Jetson AGX Xavier™ - JetPack 5.1.2 L4T35.4.1
- V4L2 Linux driver for MIPI CSI-2 camera module
-
- Video preview
- Still Image capture
- Camera controls via IOCTLs
- Sample application with source Code for Linux:
-
- Video Preview
- Still Image capture at selected resolutions
- Camera Controls
-
- Brightness
- Contrast
- Saturation
- White Balance (both manual and automatic)
- Horizontal Flip
- Vertical Flip
- Power Line Frequency
- Sharpness
- Exposure Time
- Pan
- Tilt
- ROI Window Size
- HDR
- Color Kill
- Exposure (both manual and automatic)
- Denoise
- Special Effects
- Lens Correction Mode
- Gain
- Camera Health Monitor: Ensures resilient camera streaming by monitoring sensor, MCU, and GMSL link health
- Please contact camerasolutions@e-consystems.comfor any customization or porting of camera driver to your requirements.
| Part No | Suported Platform | Sample Price (1 Unit) |
Purchase |
|---|---|---|---|

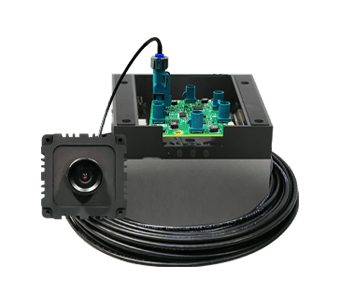

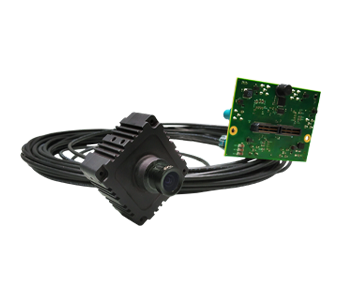

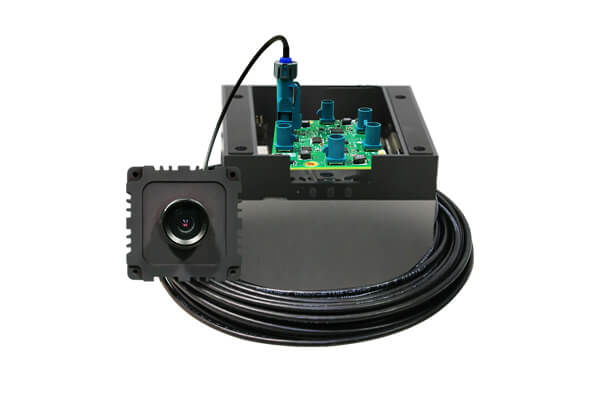

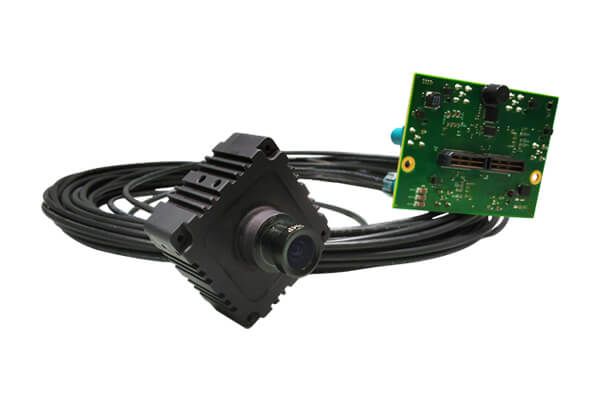

| STURDeCAM21_CUOAGX_1H02R1 | Single camera for NVIDIA® Jetson AGX Orin™ / AGX Xavier Dev kit with 15M coaxial cable |
|
|

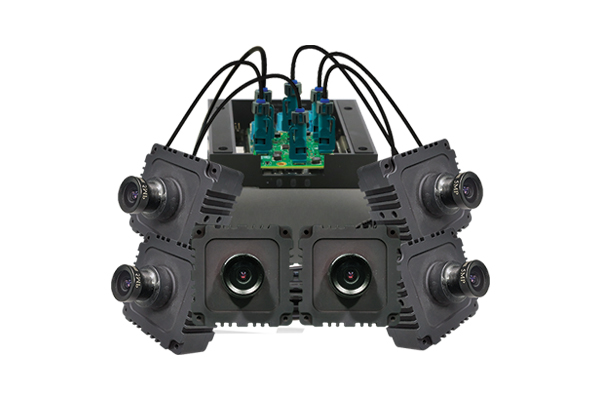

| STURDeCAM21_CUOAGX_6H02R1 | Six cameras for NVIDIA® Jetson AGX Orin™ / AGX Xavier Dev kit with 15M coaxial cable |
|
|
| STURDeCAM21_CUOAGX_1H01R1 | Single camera for NVIDIA® Jetson AGX Orin™ / AGX Xavier Dev kit with 3M coaxial cable |
|
|
| STURDeCAM21_CUOAGX_6H01R1 | Six cameras for NVIDIA® Jetson AGX Orin™ / AGX Xavier Dev kit with 3M coaxial cable |
|
|
| STURDeCAM21_CUOAGX_4H02R1 | Four cameras for NVIDIA® Jetson AGX Orin™ / AGX Xavier Dev kit | - |
|

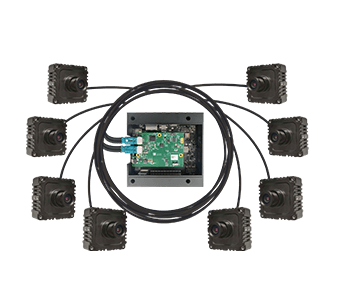

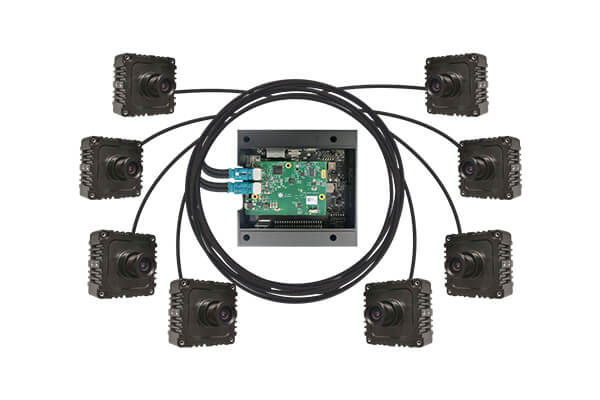

| STURDeCAM21_CUOAGX_8H02R1 | Eight cameras for NVIDIA® Jetson AGX Orin™ / AGX Xavier Dev kit | - |
|
STURDeCAM21_CUOAGX_1H02R1-Single camera for NVIDIA® Jetson AGX Orin™ / AGX Xavier Dev kit with 15M coaxial cable
Sample Price (1 Unit)-
STURDeCAM21_CUOAGX_6H02R1-Six cameras for NVIDIA® Jetson AGX Orin™ / AGX Xavier Dev kit with 15M coaxial cable
Sample Price (1 Unit)-
STURDeCAM21_CUOAGX_1H01R1-Single camera for NVIDIA® Jetson AGX Orin™ / AGX Xavier Dev kit with 3M coaxial cable
Sample Price (1 Unit)-
STURDeCAM21_CUOAGX_6H01R1-Six cameras for NVIDIA® Jetson AGX Orin™ / AGX Xavier Dev kit with 3M coaxial cable
Sample Price (1 Unit)-
STURDeCAM21_CUOAGX_4H02R1-Four cameras for NVIDIA® Jetson AGX Orin™ / AGX Xavier Dev kit
Sample Price (1 Unit)--
STURDeCAM21_CUOAGX_8H02R1-Eight cameras for NVIDIA® Jetson AGX Orin™ / AGX Xavier Dev kit
Sample Price (1 Unit)--
STURDeCAM21_CUOAGX - Customization for other Application Processor platforms:
e-con Systems™ provides camera driver development, customization and porting services for STURDeCAM21_CUOAGX on any application platform as per customer requirements.
STURDeCAM21_CUOAGX - Customization
e-con provides customization, development and porting services for the following requirements:
- Change of lens to meet your FOV and other requirements
- Support to other NVIDIA® Jetson platforms from other vendors
- To support other processor platforms
- Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
