e-CAM50_CUONX - 5MP AR0521 Color Camera for NVIDIA® Jetson Orin NX / Orin Nano

Highlights:

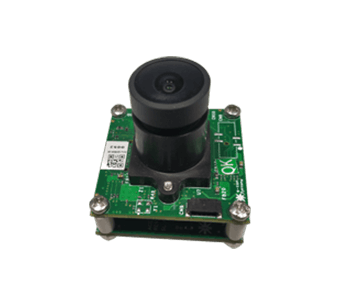

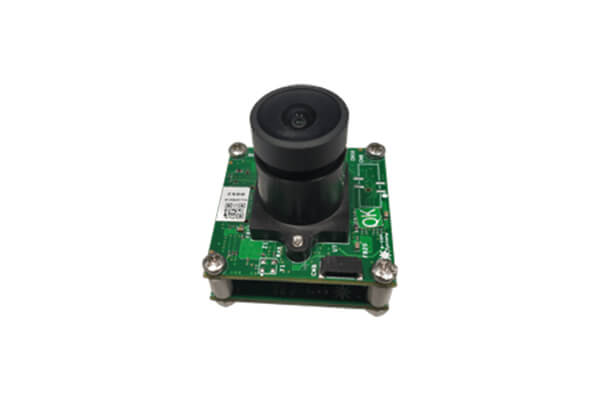

  • Houses e-CAM55_CUMI0521_MOD - 5.0 MP Camera Module with S-mount lens holder
  • High-speed MIPI CSI-2 interface to connect with the CPU

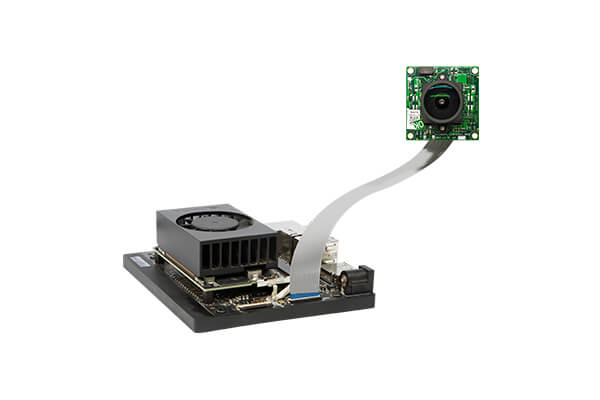

  • Plugs in to NVIDIA® Jetson Orin NX / Orin Nano Developer Kit

Sample Price

buy now

Documents

Download Document

Excluding Shipment Charges

Supported Platforms,

e-CAM50_CUONX houses e-CAM55_CUMI0521_MOD, a 5.0 MP camera module with an S-mount lens holder.

This camera is based on a 1/2.5" AR0521 CMOS image sensor from onsemi® and can be connected to NVIDIA® Jetson ORIN™ NX/NVIDIA® Jetson ORIN Nano™ developer Kit using MIPI CSI 2 interface.

Also, the camera's ISP has been fine-tuned to bring out the best image quality from the sensor making it ideal for the next generation of AI devices.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate:
      • HD @ 100fps, Full HD @ 65fps & 5MP @ 28fps
      Refer pdfDatasheet for complete frame rate details.
    • Uncompressed UYVY streaming
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: MIPI CSI-2
    • Connector: FPC flex cable
    • Cable Length: 15cm
  • Sensor features:
    • Sensor: AR0521 from onsemi®
    • Focus Type: Fixed focus / Auto focus*
    • Sensor Resolution: 5MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/2.5"
    • Output Format: Uncompressed UYVY format
    • Pixel Size: 2.2 μm x2.2 μm
    • Responsivity: 18.8 Ke-/luxsec
    • Dynamic Range: 74.3 dB
    • SNR: 40 dB
    • Sensor Active Area: 2592H x 1944V
    • Array Size: 2592H x 1944V
    • Holder: M12 (S-Mount)
    • DFOV: 140.5° (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 3.3V +/- 5%
    • Operating Temperature Range: -30°C to +70°C
    • Typical power consumption: TBD
    • Size in mm (l x b x h): 30mm x 30mm
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
  • * - Liquid lens option is available for this product and can be provided on request. Please contactcamerasolutions@e-consystems.com
Linux camera driver:

Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's e-CAM50_CUONX on NVIDIA® Jetson Orin NX / Orin Nano™ developer kit.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson™ ORIN NX / Orin nano - JetPack 5.1.2 L4T35.4.1
  • V4L2 Linux driver for MIPI CSI-2 camera module:
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
  • Camera Controls:
    • Brightness
    • Contrast
    • Saturation
    • White Balance (both manual and automatic)
    • Gamma
    • Gain
    • Horizontal Flip
    • Vertical Flip
    • Sharpness
    • Exposure (both manual and automatic)
    • Pan
    • Tilt
    • Zoom
    • ROI Window Size
    • Denoise
    • Exposure Compensation
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
 Bullat Arrow  Datasheet

Download 5MP Camera Documents

  • e-CAM55_CUMI0521_MOD - 5.0 MP MIPI Camera Module with lens
  • Adaptor board
  • Flex Cable (15 cm)
  • Linux Driver & Sample Application
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.

Targeted Applications
