e-CAM519_CUMI335_MOD - Sony® Starvis™ IMX335 Camera Module

Highlights:

  • 5MP camera based on Sony STARVIS IMX335 CMOS image sensor
  • High signal-to-noise ratio (SNR)
  • Ultra Low Light Sensitivity
  • Supported platforms - NVIDIA Jetson AGX ORIN / Xavier / Xavier NX development kits

Sample Price

ContactUs

Documents

Download Document

Evaluate e-CAM519_CUMI335_MOD with,

camera for Jetson AGX Orin™

Jetson AGX ORIN®

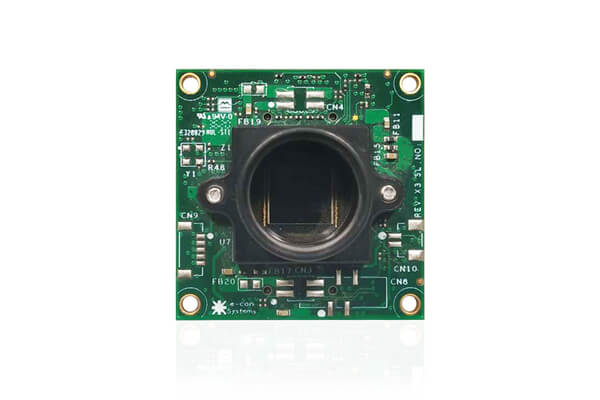

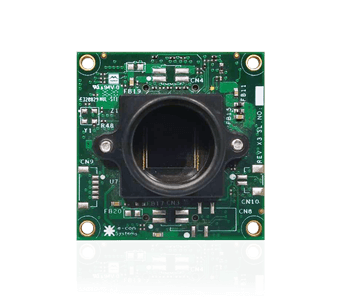

e-CAM519_CUMI335_MOD is a 5MP low light camera module based on the 1/2.8" Sony STARVIS IMX335 CMOS image sensor. It is a high-speed 4-lane MIPI-CSI2 camera that comes with a form factor of 30x30mm. Also, this is a fixed focus rolling shutter camera that has a pixel size of 2.0 μm (H) x 2.0 μm (V).

What helps this camera stand out is its extreme low light sensitivity and high SNR (Signal to Noise Ratio). It also comes with the S-mount lens holder making it easy for product developers to choose the lens of their choice. The output format of the camera is RAW 12-bit/10-bit while delivering images of 5MP @ 30fps and 1080p @ 30fps.

e-CAM519_CUMI335_MOD can be readily evaluated with some of the most popular processing platforms including NVIDIA Jetson AGX Orin, NVIDIA Jetson AGX Xavier, and NVIDIA Jetson Nano. In addition to offering these off-the-shelf features, e-con differentiates from its competition by providing extensive customization services on camera hardware as well as firmware.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate: 5MP @ 30fps & 1080p @ 30fps
      Refer pdfDatasheet for complete frame rate details.
    • Utilizes NVIDIA® Jetson's ISP for image processing
    • High-speed 4-lane MIPI-CSI2 interface
    • S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements
    • Output Format - RAW 12-bit/10-bit
    • Formfactor - 30mmx30mm
  • Module features:
    • Sensor: IMX335 from SONY® STARVIS™
    • Focus Type: Fixed focus
    • Sensor Resolution: 5MP
    • Chroma: Color
    • Shutter type: Electronic Rolling Shutter
    • Optical format: 1/2.8"
    • Output Format: RAW 12 bit / 10bit
    • Pixel size: 2.0 μm x 2.0 μm
    • Sensor Active Area: 2592 (H) x 1944 (V)
    • Array Size: 2592 (H) x 1944 (V)
    • Holder: S-Mount
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
 Bullat Arrow  Datasheet

Documents 5MP MIPI Camera Module Product Spec

  • NVIDIA® Jetson Xavier NX Dev Kit
  • NVIDIA® Jetson AGX Orin™ Dev Kit
  • NVIDIA® Jetson AGX Xavier™ Dev Kit
  • Customers interested in customizing the same camera module or planning to use a different camera/sensor module can contact camerasolutions@e-consystems.com and explain their requirements.



e-CAM519_CUMI335_MOD - Customization for other Application Processor platform:

e-con provides customization for this e-CAM519_CUMI335_MOD on any application platform as per customer requirements.

e-CAM519_CUMI335_MOD Customization

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization for C/CS mount lens
  • Driver development for any OS: Linux, Android
  • Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, Raspberry Pi and any other processor
  • Camera and features customization based on specific requirements
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
