e-CAM50_CU96 - 5.0 MP camera for Rockchip RK3399

e-CAM50_CU96 is a 5MP Fixed focus MIPI camera for 96Boards compliant Rock960 developer kit featuring Rockchip RK3399 processor. This 4-lane MIPI Camera for Rock960 board is based on our popular low-light camera module, e-CAM55_CUMI0521_MOD which has 1/2.5" AR0521 CMOS Image sensor from onsemi® and a built-in Image Signal Processor (ISP). It has S-mount (M12) lens holder which allows customers to choose and use the lens according to their requirement.

With Capability to stream 5MP at 25fps, Rockchip is perfect partner for e-CAM50_CU96 to run application requiring high resolution images. e-CAM50_CU96's compliance with 96boards' standards enables fast evaluation of Rockchip RK3399 processor for imaging applications.

Key Features
Module Features
Software
Documents
Kit Contents

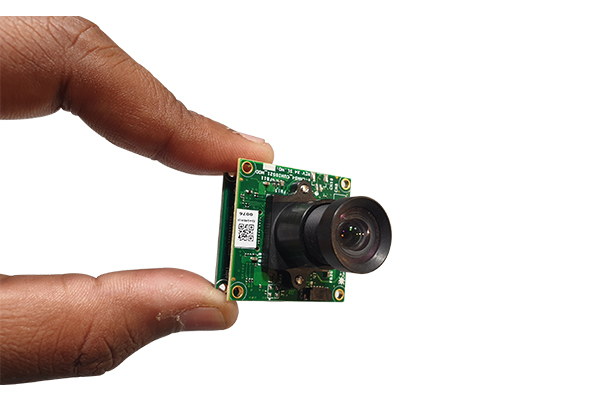

Houses e-CAM55_CUMI0521_MOD - 5.0 MP Camera Module with S-mount lens holder
High-speed 4-lane MIPI CSI-2 interface to connect with the CPU

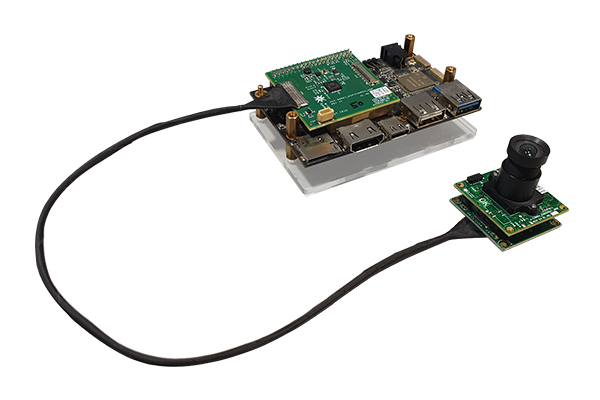

Plugs into 96Boards compliant Rock960 board
Frame Rate:

Resolutions	UYVY
HD (1280 x 720)	70 fps
FHD (1920 x 1080)	60 fps
QHD (2560 x 1440)	35 fps
5MP (2592 x 1944)	25 fps

Linux camera driver (V4L2) for 5.0 MP MIPI CSI-2 camera module
Operating Temperature Range: -30°C to 70°C
Sample streaming commands for camera preview
Gstreamer-1.0 support for video recording and network streaming
Multi board solution
Lightweight, versatile, and portable design
RoHS compliant
Launched on:

Sensor:AR0521 from onsemi®

Focus Type:Fixed focus / Auto focus*

Resolution:5MP CMOS Image Sensor. 1/2.5" Optical format

Sensor type:5MP CMOS Electronic Rolling Shutter Sensor with Bayer RGB Color Filter Array

Pixel size:2.2 µm x2.2 µm

Sensor Active Area:2592H x 1944V

Responsivity:18.8 Ke-/luxsec

SNR:40 dB

Dynamic Range:74.3 dB

Output Format:Uncompressed UYVY format

Shutter type:Electronic Rolling Shutter

Holder:S-Mount

ISP:On-board high performance ISP

FOV :5MP - 140.5°(D), 110°(H), 82°(V) (with the lens provided by e-con)

* - Liquid lens option is available for this product and can be provided on request

Linux camera driver:

Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's e-CAM50_CU96 on Rock960 board.

V4L2 Linux driver for MIPI CSI-2 camera module
- Video preview
- Camera controls via IOCTLs
Sample source Code for Linux:
- Video Preview
- Gstreamer commands for video preview
Camera Controls
- Brightness
- Contrast
- Saturation
- White Balance (both manual and automatic)
- Gamma
- Gain
- Horizontal Flip
- Vertical Flip
- Sharpness
- Exposure (both manual and automatic)
- Digital Zoom

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Download e-CAM50_CU96 - Technical Documents:

User Manual

pdf e-CAM50_CU96 Getting Started Manual

Download Selected Documents

Kit Contents:

Hardware:

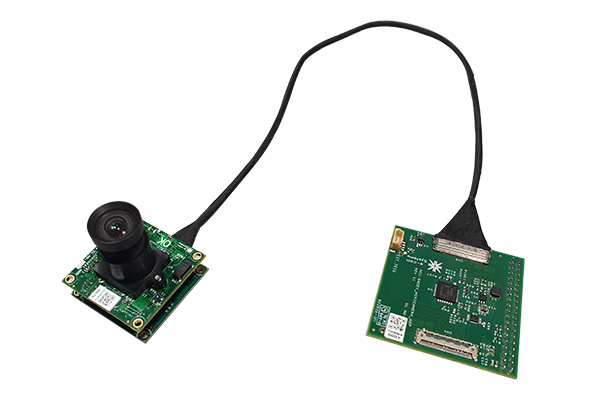

- e-CAM50_CU96 - 5MP MIPI Camera board (contains the e-CAM55_CUMI0521_MOD camera module, base board, adaptor board and a micro-coaxial cable)
Software:
- V4L2 - Linux driver
- Gstreamer commands for video preview
Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.
