FarVis22: 2MP 10x Optical Zoom Camera(AF) for NVIDIA Orin/Nano

Overview

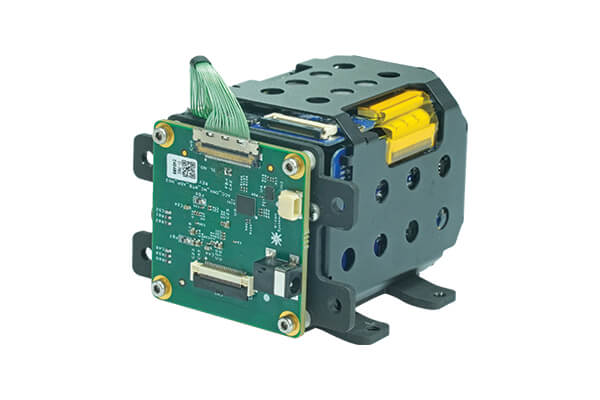

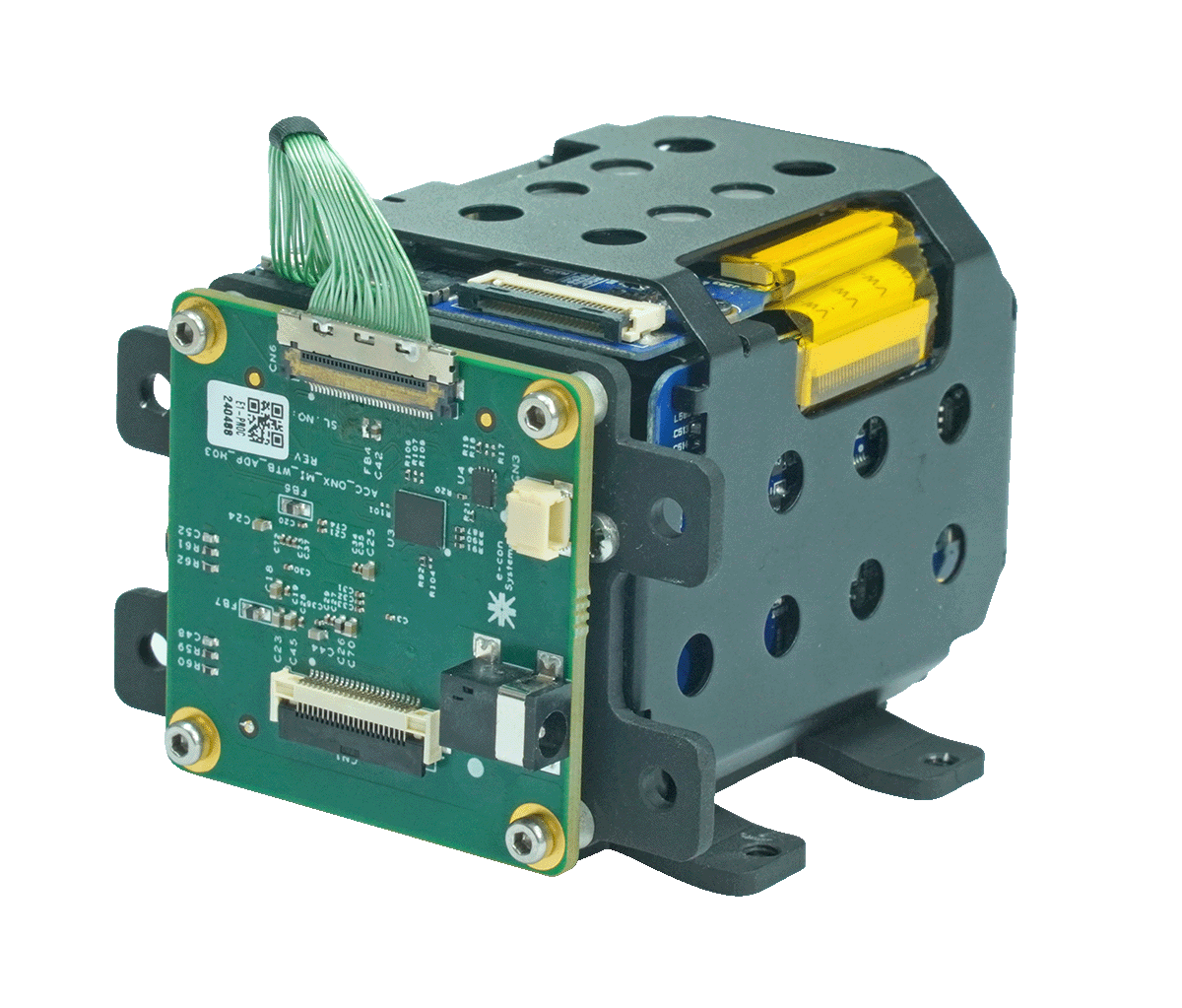

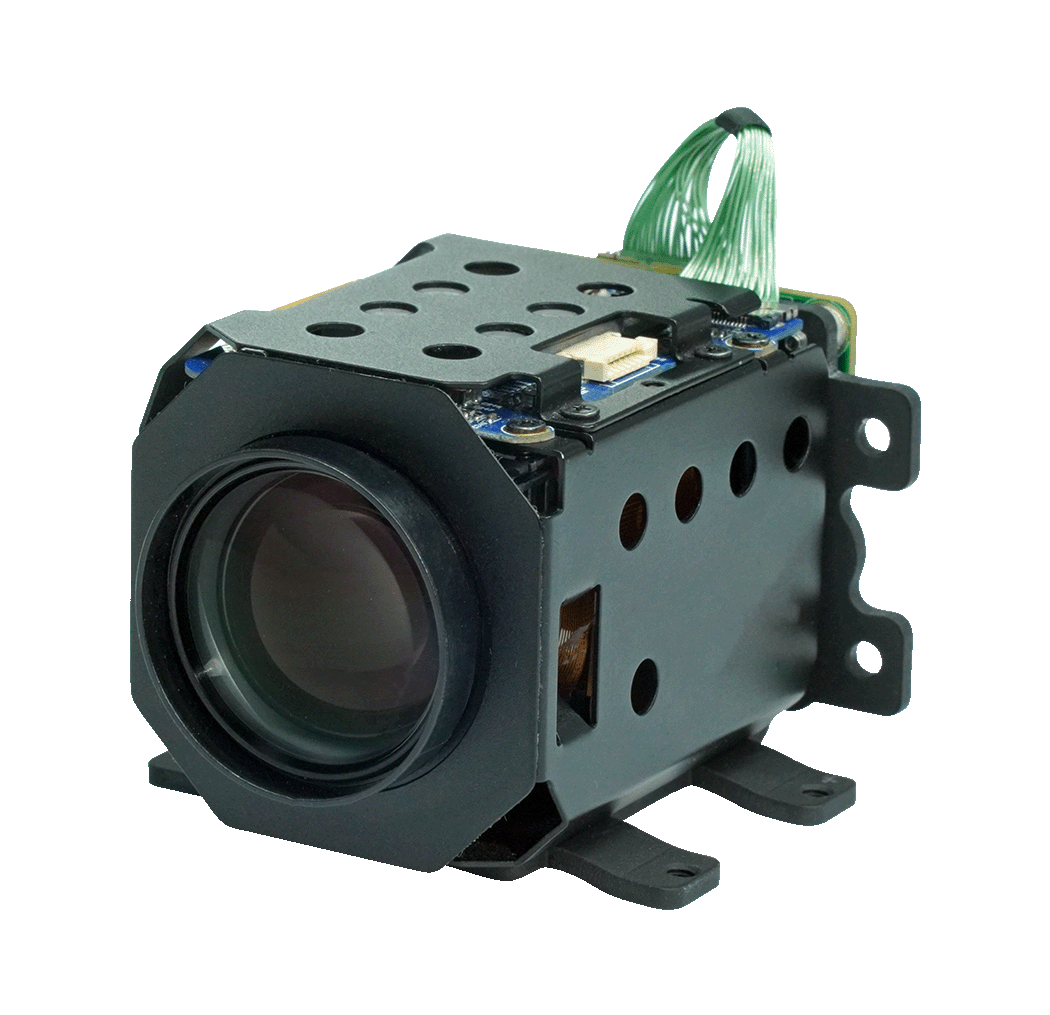

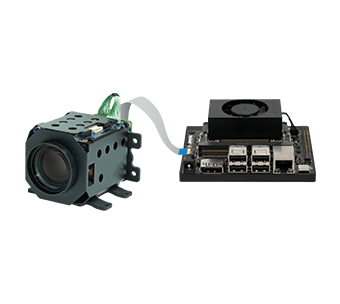

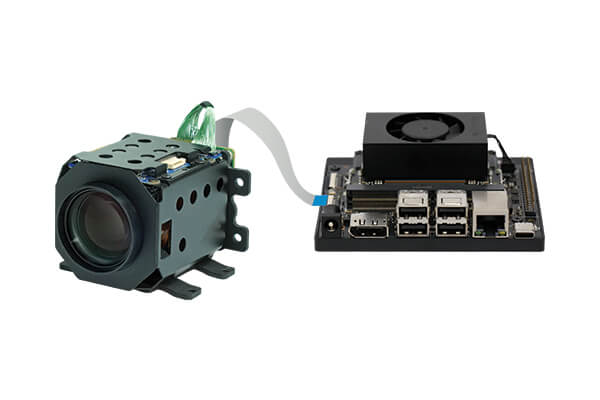

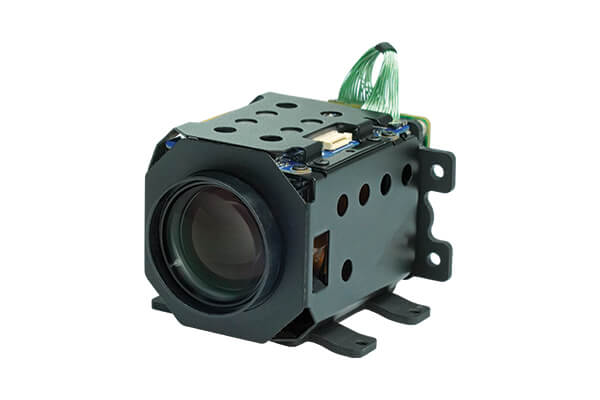

FarVis22 is a Full HD zoom camera equipped with a Sony STARVIS IMX462 CMOS image sensor, featuring 10x optical zoom and 32x digital zoom for detailed shots from a distance, along with autofocus capabilities. It is ideal for a range of imaging applications such as sports broadcasting and analytics, smart surveillance, intelligent transportation systems (ITS), and parking lot management. The FarVis22 camera solution includes a camera module and an adapter board that seamlessly integrates with Jetson Orin NX™/Nano™ development kits through 4-lane MIPI CSI through J21 connectors.

Refer Datasheet  for complete frame rate details.

Specifications

Key features:
- Frame Rate: 1920x1080 @ 60FPS
  Refer Datasheet  for complete frame rate details.
- Output format: UYVY
- Lightweight, versatile, and portable design
- Field of View (FOV) angle varies with preview resolutions
Interface:
- Interface: MIPI CSI
- Connector: 22-pin FFC connector (CN1)
- Cable Length: 15 cm
Module Features:
- Sensor: Sony® Starvis IMX462
- Focus Type: Auto Focus
- Sensor Resolution: 2MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/2.8"
- Output Format: UYVY
- Pixel Size: 2.9μm x 2.9μm
- Active Pixels:: 1920 (H) x 1080 (V)
- Zoom: Optical 10x & Digital 32x
- Lens Type: 10x Optical Zoom Lens
Electrical & Mechanical:
- Operating Voltage: 9V to 15V DC
- Operating temperature: -10°C to 50°C
- Typical power consumption: 2.4W
- Size in mm:
  - Camera: 43(W) x 44 (H) x 60.6 (D)
  - Adapter Board: 40(W) x 40 (H)
- Weight: 112 grams
Miscellaneous:
- RoHS

Software

Linux camera driver:

FarVis22 is a 4-lane MIPI CSI-2 camera and it requires a custom camera driver for NVIDIA® Jetson Orin Nano™ / NVIDIA® Jetson Orin™ NX

Supported Jetpack & L4T Version:
- NVIDIA® Jetson™ ORIN™ NX / Orin™ nano - JetPack 5.1.2 L4T35.4.1
V4L2 Linux driver for MIPI CSI-2 camera module:
- Video preview
- Still Image capture
Sample application with source Code for Linux:
- Video Preview
- Still Image capture at selected resolutions
Controls:
- Zoom
  - Optical Zoom: Max 10x
  - Digital Zoom: Max 32x
- Gain
- Sharpness
- Focus (Auto & Manual)
- White Balance (both manual and automatic)
- BLC (Back Light Compensation)
- Day&Night (ICR) mode
- Freeze
- Defog
Please contact sales@e-consystems.com for any customization requirements.

Documents

Customization

FarVis22_ONX_MIPI_10X – Customization

Support for other NVIDIA® Jetson™platforms as well as carrier boards from other vendors built using NVIDIA platforms.
Support for various processor platforms like Qualcomm, NXP, ect..
Camera and features customization based on specific requirements
PTZ (pan-tilt-zoom) customization is available to meet specific application needs.
