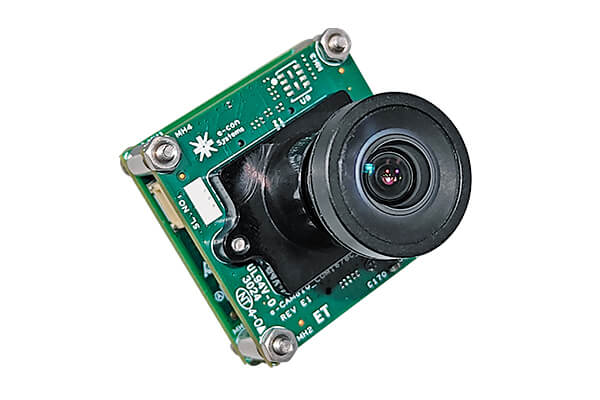

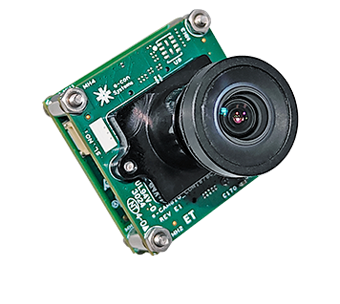

e-CAM86_CUONX - 8MP Sony® Starvis 2 IMX678 Camera for NVIDIA® Jetson Orin NX / Orin Nano

Highlights:

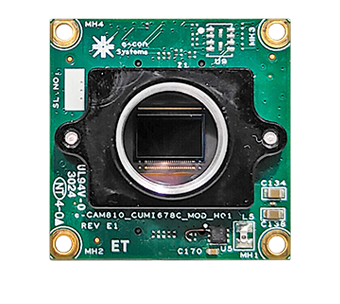

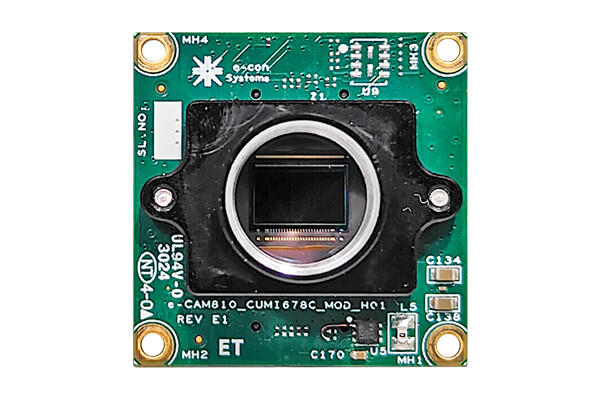

  • Houses e-CAM810_CUMI678C_MOD - 8MP Sony® STARVIS2 IMX678 Camera Module
  • Enhanced Low light performance
  • Superior NIR sensitivity

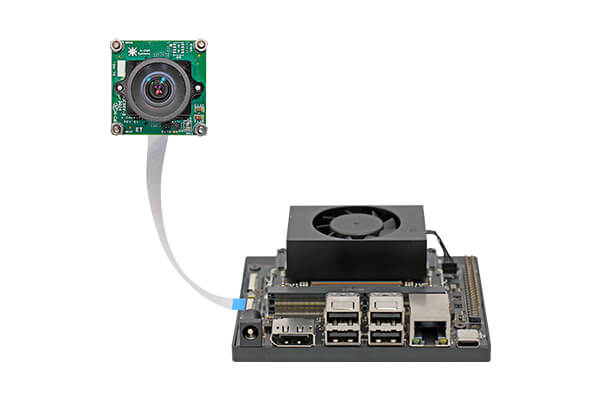

  • Plugs into NVIDIA® Jetson ORIN NX / ORIN NANO developer kits
  • Uses NVIDIA® Internal Image Signal Processor (ISP) for image processing
  • High-speed MIPI CSI-2 interface to connect with the CPU

Sample Price

USD 149

Documents

Excluding Shipment Charges

Supported Platforms,

e-CAM86_CUONX is a 8MP ultra-low-light MIPI CSI-2 camera built around the Sony STARVIS 2 IMX678 CMOS image sensor, designed to deliver superior imaging performance in both visible and low-light conditions. This advanced 4K camera is specifically engineered for seamless integration with NVIDIA® Jetson Orin™ NX/Orin Nano™ development kits. It utilizes NVIDIA's on-board Image Signal Processor (ISP), fine-tuned by e-con Systems®, to achieve excellent image quality.

The e-CAM86_CUONX camera's enhanced near-infrared (NIR) sensitivity ensures superior performance in low-light environments. This camera is ideal for applications such as sports broadcasting and analytics, biometrics, and smart surveillance.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate:
      • Full HD @ 72 fps & 8MP (4K) @ 72 fps
      Refer pdfDatasheet for complete frame rate details.
    • YUV (NV12) Streaming
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: MIPI CSI-2
    • Connector: FPC flex cable
    • Cable Length: 15cm
  • Module features:
    • Sensor: Starvis2 IMX678 from Sony®
    • Focus Type: Fixed focus
    • Sensor Resolution: 8.4MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/1.8"
    • Output Format: RAW Bayer 10/12-bit
    • Pixel Size: 2.0 μm x2.0 μm
    • Sensor Active Area: 3840 (H) x 2160 (V)
    • Holder: S-Mount
    • FOV: 120° (D), 104° (H), 58.7° (V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 3.3V +/- 5%
    • Operating Temperature Range: -30°C to 70°C
    • Power requirements: 0.759W
    • Size in mm (l x b x h): 30mm x 30mm
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
Linux camera driver:

The e-CAM86_CUONX is a 2-lane and 4-lane MIPI CSI-2 camera and it requires a custom camera driver for NVIDIA® Jetson Orin Nano™ / NVIDIA® Jetson Orin™ NX Developer Kit. e-con Systems™ provides the camera driver along with the camera board.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson™ ORIN NX / Orin nano - JetPack 6.0 L4T36.3.0
  • V4L2 Linux driver for MIPI CSI-2 camera module:
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
  • Camera Controls:
    • Exposure Time Range
    • Gain Range
    • ISP Digital Gain Range
    • Sensor Mode Index
    • Frame Rate
    • De-Noise Mode
    • De-Noise Strength
    • Edge Enhance Mode
    • Edge Enhance Strength
    • Auto Exposure (AE) Antibanding Mode
    • Auto White Balance (AWB) Mode
    • Exposure Compensation
    • AE Lock
    • AWB Lock
    • Output Size
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download Full HD GMSL2 Camera Documents

  • e-CAM810_CUMI678C_MOD - Ultra low-light MIPI camera module with lens
  • Adaptor board
  • Flex Cable (15 cm)
  • Linux Driver & Sample Application
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
e-CAM86_CUONX - Customization for other Application Processor platforms:

e-con provides customization for e-CAM86_CUONX on any application platform as per customer requirements.

e-CAM86_CUONX Customization:

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization
  • For C/CS mount lens holder
  • Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX ORIN/Xavier, ORIN NX/Nano, and any other processor
  • Please contact camerasolutions@e-consystems.com for customization requirements.
