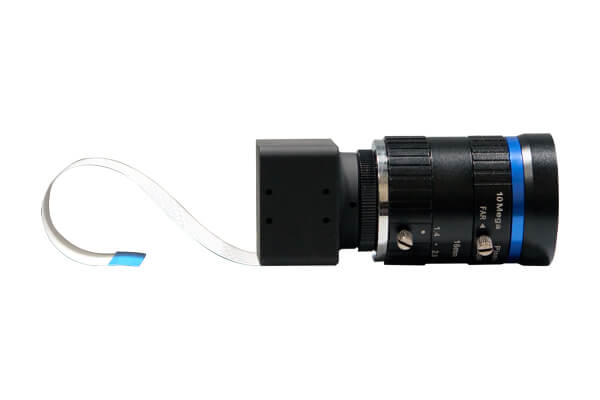

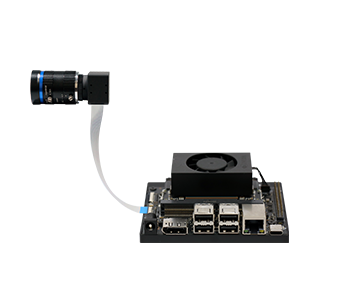

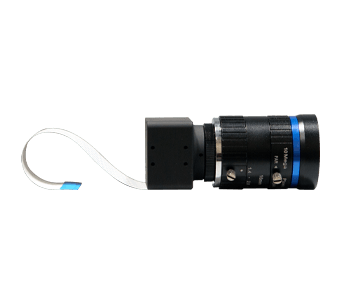

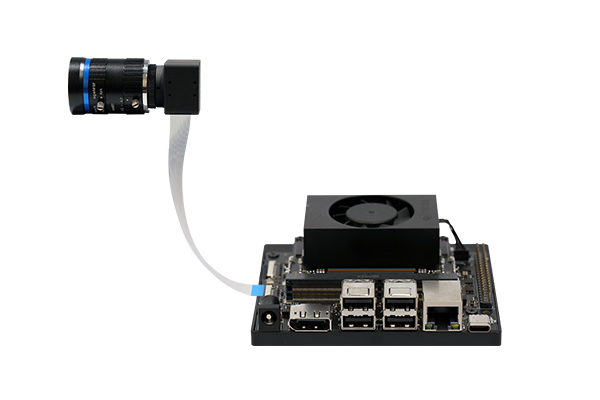

e-CAM82_CUONX - 4K Sony® STARVIS™ IMX485 Camera for NVIDIA® Jetson Orin NX / Orin Nano

• Key features:
• • Frame Rate:

    • Full HD @ 90 fps & 8MP (4K) @ 60 fps
    Refer Datasheet for complete frame rate details.
  • Standard CS lens holder for use with customized optics or lenses for various applications
  • Lightweight, versatile, and portable design
• Interface:
• • Interface: MIPI CSI-2
  • Connector: FPC flex cable
  • Cable Length: 15cm
• Sensor features:
• • Sensor: IMX485 from Sony® Starvis
  • Focus Type: Fixed focus
  • Sensor Resolution: 8.4 MP
  • Chroma: Color
  • Shutter Type: Electronic Rolling Shutter
  • Optical Format: 1/2"
  • Output Format: RGB RAW 10/12-bit
  • Pixel Size: 2.9μm x 2.9μm
  • Sensor Active Area: 3864(H) x 2180(V)
  • Array Size: : 3864(H) x 2200(V)
  • Holder: CS-Mount
  • FOV: 33°(D), 29°(H), 15°(V) (with the lens provided by e-con)
• Electrical & Mechanical:
• • Operating Voltage: 3.3 V +/- 5%
  • Operating Temperature Range: -30°C to 70°C
  • power consumption: 0.7W
  • Size in mm (l x b x h): 35 x 35 x 29.25mm (With enclosure)
• Miscellaneous:
• • Compliance: RoHS
• Launched on:

Linux camera driver:

The e-CAM82_CUONX is a 2-lane and 4-lane MIPI CSI-2 camera and it requires a custom camera driver for NVIDIA® Jetson Orin Nano™ / NVIDIA® Jetson Orin™ NX Developer Kit. e-con Systems™ provides the camera driver along with the camera board.

• Supported Jetpack & L4T Version
• • NVIDIA® Jetson™ ORIN NX / Orin nano - Jetpack 5.1.2 L4T35.4.1
• V4L2 Linux driver for MIPI CSI-2 camera module:
• • Video preview
  • Still Image capture
  • Camera controls via IOCTLs
• Sample application with source Code for Linux:
• • Video Preview
  • Still Image capture at selected resolutions
• Camera Controls:
• • Exposure Time Range
  • Gain Range
  • ISP Digital Gain Range
  • Sensor Mode Index
  • Frame Rate
  • De-Noise Mode
  • De-Noise Strength
  • Edge Enhance Strength
  • Auto Exposure (AE) Antibanding Mode
  • Auto White Balance (AWB) Mode
  • Exposure Compensation
  • AE Lock
  • AWB Lock
  • Output Size
• Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.

• e-CAM84_CUMI485C_MOD - Ultra low-light MIPI camera module
• Adaptor board
• FPC Flex Cable (15 cm)
• CS-Mount to C-Mount converter (Optional)
• Lens (optional)
• Metal enclosure
• Linux Driver & Sample Application
• Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.

e-CAM82_CUONX - Customization for other Application Processor platforms:

e-con provides customization for e-CAM82_CUONX on any application platform as per customer requirements.

e-CAM82_CUONX - Customization

e-con provides customization for the following requirements:

• PCB form-factor customization for any shape, connector and orientation
• Lens holder customization
• For C/CS mount lens holder
• Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX ORIN/Xavier, ORIN NX/Nano, and any other processor
• Support for other processor platforms
• Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
