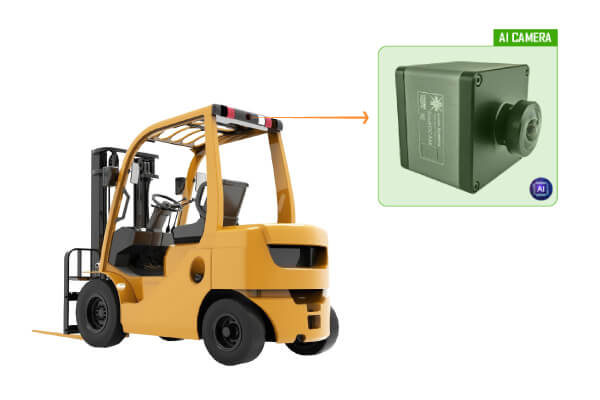

ForkVista is a rugged 2MP GigE camera with an onboard NPU for AI processing. This features the Onsemi AR0234 Global Shutter sensor, which captures images in high-speed environments. Designed for near-field detection, the ForkVista detects pedestrians around forklifts and immediately alerts the drivers to such hazards, significantly reducing the possibility of collision in areas like warehouses, factories, Construction sites, and logistics centers. Equipped with an NPU SDK and supporting ONVIF, for assured image and data transfer over wired LANs, it enables better safety, driver confidence, productivity, lesser downtime, and workplace safety.
- Key features:
-
- Frame Rate: HD @ 60 fps & FullHD @ 60fps
- Output format: Compressed MJPEG, H.264, H.265
- Shielded Cat5e or Cat6 ethernet cable for transmission of both power and data for long distance (up to 100m)
- Cloud connect - FCAPS, Firmware Upgrade, Video streaming
- Auto Exposure & Auto White Balance
- Unique ID for each camera
- Lightweight, versatile, and portable design
- Frame Rate: HD @ 60 fps & FullHD @ 60fps
- Interface:
-
- Interface: GigE
- Connector: M12
- Cable length: 3m
- Camera features :
-
- Sensor: AR0234CS from onsemi®
- Focus Type: Fixed focus
- Sensor Resolution: Full HD
- Chroma: Color
- Shutter type: Global Shutter
- Optical Format: 1/2.6"
- Output Format: Uncompressed UYVY and Compressed MJPEG
- Pixel size: 3μm x 3μm
- Sensor Active Area: 1920(H) x 1200(V)
- Array Size: 1920(H) x 1200(V)
- Responsivity: 56 Ke-/luxsec
- SNR: 38 dB
- Dynamic Range: 71.4 dB
- Holder: M12 (S-Mount)
- FOV: 140°(D),120.5°( H),67.38°(V) (with the lens provided by e-con)
- Electrical & Mechanical:
-
- Operating Voltage: TBD
- Operating Temperature Range: 30°C to 70°C
- Power requirements: TBD
- Size in mm (l x b x h) : TBD
- Miscellaneous:
-
- Compliance: FCC, RoHS
-
- Supported OS - Windows, Linux
- Supported Profiles - ONVIF supported Profiles S & T
- Supported Streaming formats - MJPEG, H.265, and H.264
- Ethernet IP Configuration - DHCP
- Features of RouteCAM Viewer Application
- Automated IP Discovery & Streaming
- Support for Camera Controls
- Provision for changing resolution and format available in Linux.
- Linux Socket Application for extended Camera features
- OTA (Over-The-Air) Upgrade *
- Software controls:
-
- Brightness
- Contrast
- Color Saturation
- WDR
- WDR Contrast
- Color
- Color Suppression
- Sharpness
- Exposure
Please contact camerasolutions@e-consystems.com for more details.
* - Not available with the off-the-shelf version. Please contact camerasolutions@e-consystems.com for more details.
-

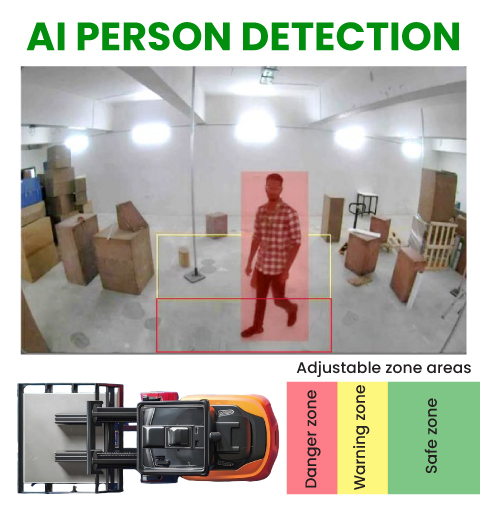

- Human Recognition
- Differentiates humans from objects and obstacles.
- Object Classification
- Classifies detected entities to reduce false alarms.
- Advanced Algorithms
- Uses sophisticated AI to analyze visual data effectively.
- Minimal False Alarms
- Optimized to alert only when necessary,improving efficiency.
- Human Recognition
ForkVista - Customization:
- Do you need a different lens to meet your FOV and other requirements?
- Do you need a lens with motorized control?
- Do you want a different form factor?
- Do you need LED flash?
- Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
