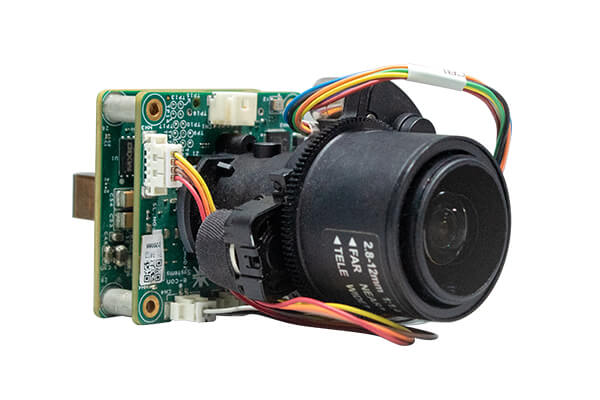

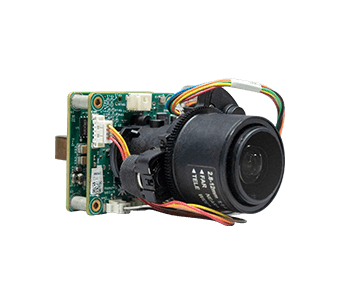

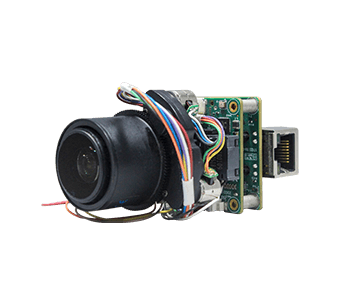

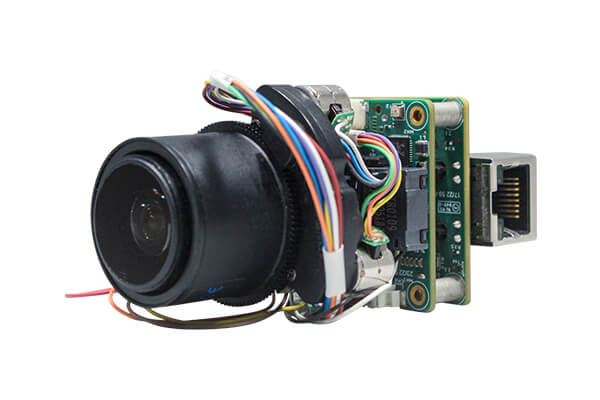

FarVis22_GigE is a 2MP Power over Ethernet (PoE) 5x optical zoom camera with Autofocus feature. It is based on Sony® STARVIS™ IMX462 and it comes with a pixel size of 2.9um and an active-pixel array of 1937(H) x 1097(V). This is an ONVIF-supported ethernet Gigabit camera that can reliably send images and control data over a wired LAN network.
The camera comes with the HDR (High Dynamic Range) feature making it possible to deliver high-quality images in challenging lighting conditions. Superior low light and NIR sensitivity are two of its key differentiators. The GigE interface of this camera enables the transfer of video data with a maximum cable length of up to 100m.
- Key features:
-
- Frame Rate: Full HD @ 60 fps & VGA @ 60 fps
- Output format: Compressed MJPEG, H.264, H.265
- Ethernet interface with RJ45 connector
- Shielded Cat5e or Cat6 ethernet cable for transmission of both power and data for long distance (up to 100m)
- Auto Exposure & Auto White Balance
- Motorised lens control
- Unique ID for each camera
- Lightweight, versatile, and portable design
- Frame Rate: Full HD @ 60 fps & VGA @ 60 fps
- Interface:
-
- Interface: GigE
- Connector: RJ45 cable
- Cable length: 3m
- Module Features:
-
- Sensor: IMX462 from Sony® Starvis
- Focus Type: Single shot auto focus
- Sensor Resolution: Full HD
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/2.8"
- Output Format: Compressed MJPEG, H.264, H.265
- Pixel Size: 2.9μm x 2.9μm
- Sensor Active Area: 1937H x 1097V
- Array Size: 1937 x 1097 Pixels
- Holder: M12 (S-Mount)
- FOV: TBD
- Electrical & Mechanical:
-
- Operating Voltage: 44V to 57V (PoE Standard IEEE802.3af standard)
- Operating Temperature Range: 0 to 50°C
- Power requirements: 2.2W
- Size in mm: 48mm x 48mm x 41.9mm (Without Lens)
- Miscellaneous:
-
- Compliance: FCC, RoHS
- * - Not available with the off-the-shelf version. Please contact camerasolutions@e-consystems.com for more details.
- ** - For PTP network sync support, please contact camerasolutions@e-consystems.com.
- Supported OS - Windows, Linux
- Supported Profiles - ONVIF supported Profiles S & T
- Supported Streaming formats - H.264/H.265
- Ethernet IP Configuration - DHCP
- Features of RouteCAM Viewer Application
-
- Automated IP Discovery & Streaming
- Support for Camera Controls
- Provision for changing resolution and format available in Linux.
- Linux Socket Application for extended Camera features
- OTA (Over-The-Air) Upgrade *
- Software controls:
-
- Exposure (Auto/Manual)
- WhiteBalance (Auto/Manual)
- Brightness
- Saturation
- Contrast
- Sharpness
- Gain
- HDR
- Zoom (upto 4.3x)
- Please contact camerasolutions@e-consystems.com for any customization requirements.
FarVis22_GigE – Customization
- Do you need a lens with motorized control?
- Do you want a different form factor?
- Support for various processor platforms like NVIDIA, Qualcomm, NXP, etc..
- Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
