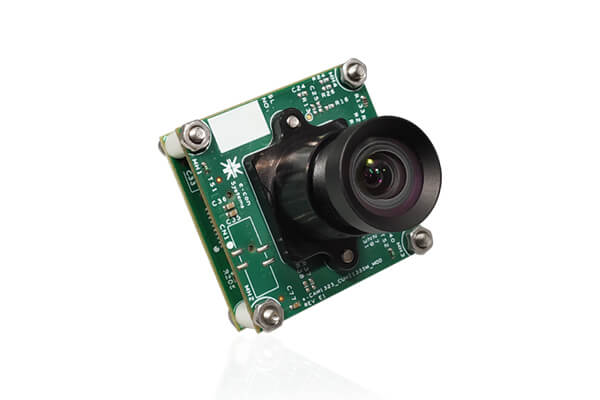

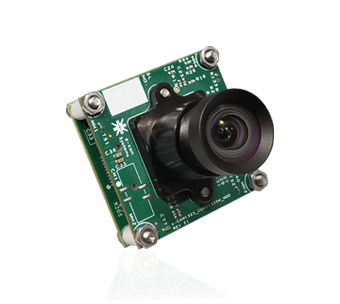

NileCAM130M is a 13MP GMSL 2 camera based on a 1/3.2 inch AR1335 CMOS image sensor with advanced 1.1μm pixel BSI technology from onsemi™.This camera supports Global Reset Mode (Global Reset Release GRR), which helps to capture moving objects without motion blur/rolling shutter artifacts Also, this 13MP camera has an M12 lens holder which offers customers an opportunity to use the lens of their choice. NileCAM130M is a GMSL2 camera which can be connected to Qualcomm® Robotics RB5 Core Kit with Vision Mezz package.
This GMSL camera streams high frame rate uncompressed video data of 13MP @ 20fps, 4K @ 30fps up to a distance of 15 meters with very low latency.
Refer
Datasheet for complete frame rate details.
- Key features:
-
- Frame Rate: Streams 13MP @ 20 fps & 4K @ 30fps
- 2 cameras can be connected to Qualcomm® Robotics RB5 Vision Kit
- Uses Qualcomm QRB5165 ISP for Auto Exposure, Gamma, Denoising, etc.
- Output format: Y8 & Y16
- S-mount lens holder for flexibility to choose a lens as per application requirements
- Lightweight, versatile, and portable design
- Frame Rate: Streams 13MP @ 20 fps & 4K @ 30fps
- Interface:
-
- Interface: GMSL2
- Connector: FAKRA connector

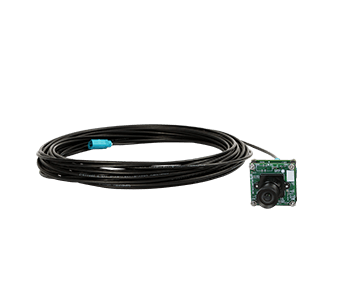

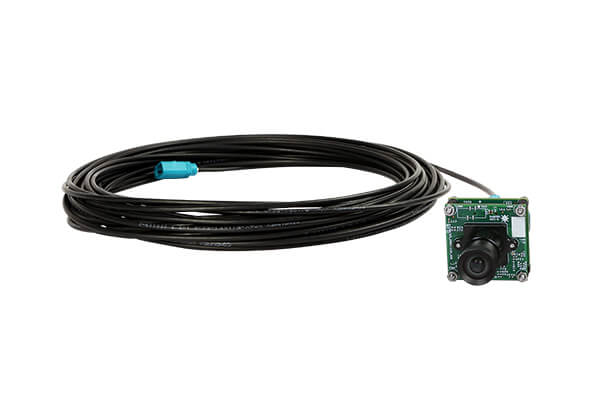

- Cable Length: 15m
- Sensor features:
-
- Sensor: AR1335 from onsemi®
- Focus Type: Fixed focus
- Sensor Resolution: 13MP
- Chroma: Monochrome
- Shutter Type: Electronic Rolling Shutter with Global Reset Release GRR #
- Optical Format: 1/3.2"
- Output Format: Y8 & Y16
- Pixel Size: 1.1μm x 1.1μm
- Sensor Active Area: 4208 (H) x 3120 (V)
- Array Size: 4208 (H) x 3120 (V) Pixel
- Responsivity: 8000 e-/lux-sec
- SNR: 37 dB
- Dynamic Range: 69 dB
- FOV: 66.8°(D), 55.6°(H), 42.8°(V) (with the lens provided by e-con)
- Electrical & Mechanical:
-
- Operating Voltage: 5 to 15V with +/- 5% tolerance
- Operating Temperature Range: -30°C to 70°C
- Typical power consumption: 1.13W
- Size in mm (l x b): 30 x 30 mm
- Miscellaneous:
-
- Compliance: RoHS
- Launched on:
- # - Rolling shutter is supported in the default firmware. Customized firmware/hardware is required to use a rolling shutter with Global reset mode. Please contact camerasolutions@e-consystems.com.
| Product Code | Supported Platforms | SAMPLE PRICE (1 Unit) |
|---|---|---|
NileCAM130M_CUQRB5 Kit Contents
|
Qualcomm® Robotics RB5 Vision Kit |
|
| ARM Based Solution |
|
|
NileCAM130M - Customization for other Application Processor platforms:
e-con Systems® provides camera driver development, customization and porting services for NileCAM130M on any application platform as per customer requirements.
NileCAM130M - Customization:
e-con provides customization, development and porting services for the following requirements:
- IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
- Length of the cable
- Change of lens to meet your FOV and other requirements
- Support for other processor platforms
- Camera and feature customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
