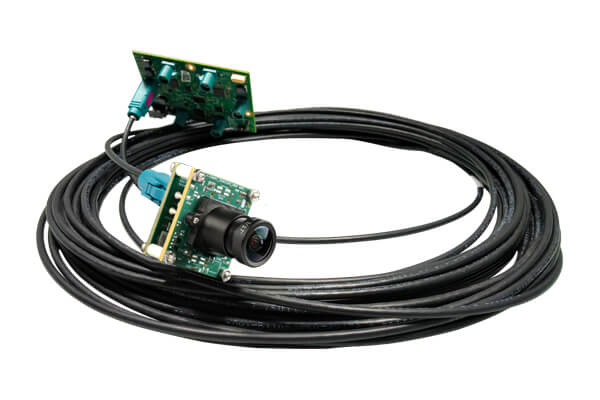

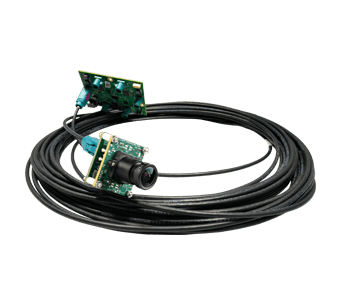

NileCAM210 - 2MP Sony® Starvis™ IMX462 GMSL2 Camera Module (15m cable support)

NVIDIA AGX Orin Cameras | GMSL Cameras

Highlights:

  • Houses Sony® Starvis™ IMX462 Camera Module with S-mount lens holder
  • Ultra low light sensitivity
  • Superior near-infrared performance
  • Gigabit Multimedia Serial Link 2 (GMSL2) interface with FAKRA connector
  • Shielded coaxial cable to transmit power and data up to 15m

Sample Price

buy now

Excluding Shipment Charges

Documents

Download Document

Evaluate NileCAM210 with,

NileCAM210 is a 2 MP low-light camera module based on an IMX462 sensor from Sony®. It comes with a 1/2.8" optical form factor and 2.9 μm pixel size which ensure low light sensitivity in night vision applications.

This low-light camera module uses GMSL2 interface to stream video data of FHD at 60 fps, that too with low latency. It also supports Wide Dynamic Range (WDR) to improve overall imaging performance.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate - Streams Full HD @ 60fps and HD @ 60fps
      Refer pdfDatasheet for complete frame rate details.
    • Output format: RAW 12-bit
    • S-mount lens holder for flexibility to choose a lens as per application requirements
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GMSL2
    • Connector: FAKRA connector
    • Cable Length: 15m
  • Sensor features:
    • Sensor: IMX462 sensor from SONY® Starvis
    • Focus Type: Fixed focus
    • Sensor Resolution: 2MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/2.8"
    • Output Format: RAW 12-bit
    • Pixel Size: 2.9μm x 2.9μm
    • Sensor Active Area: 1945H x 1097V
    • Array Size: 1945H x 1097V
    • G Sensitivity: 2.376V at 12-bit HCG mode, 0.921V at 12-bit LCG mode
    • Holder: M12 (S-Mount)
    • FOV: 132°(D), 113°(H), 61°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 5 to 15V with +/- 5% tolerance
    • Operating Temperature Range: -30°C to 70°C
    • Typical power consumption: 7.488W
    • Size in mm (l x b) : 30 x 30 mm
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
 Bullat Arrow  Datasheet

Download Full HD USB Camera Documents

Part No Supported Platforms Sample Price
(1 Unit) 		Purchase
NileCAM210_CUQRB5
Kit Contents
  • NileCAM210 - 2MP IMX462 GMSL2 Camera
  • Deserializer board
  • Three meters coaxial cable
 Qualcomm® Robotics RB5 Vision Kit
buy e-con camera
NilecAM210_CUOAGX
Kit Contents
  • NileCAM210 - 2MP IMX462 GMSL2 Camera
  • Deserializer board with 6 camera connectors
  • 15 meters coaxial cable
 NVIDIA® Jetson AGX Orin™ / AGX Xavier™ Dev Kit
-		 ContactUs

NileCAM210_CUQRB5-Qualcomm® Robotics RB5 Vision Kit

Sample Price (1 Unit)-

buy e-con camera

NileCAM210_CUOAGX-NVIDIA® Jetson AGX Orin™ / AGX Xavier™ Dev Kit

Sample Price (1 Unit)

ContactUs



NileCAM210 - Customization for other Application Processor platforms:

e-con Systems® provides camera driver development, customization, and porting services for NileCAM210 on any application platform as per customer requirements.

NileCAM210 - Customization

e-con provides customization, development and porting services for the following requirements:

  • IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other NVIDIA® Jetson® platforms as well as carrier boards from other vendors built using NVIDIA platforms
  • Support for other processor platforms
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
