Nile3CAM85_CUOAGX - SONY® STARVIS™ IMX715 GMSL3 Camera for NVIDIA® Jetson AGX Orin™/ AGX Xavier™

Highlights:

  • Houses Nile3CAM85 - 8MP Sony® Starvis™ IMX715 Camera Module (supports upto 15 meters)
  • Plugs into NVIDIA® Jetson AGX Orin™ / AGX Xavier™ developer kits
  • Ultra low light sensitivity
  • Gigabit Multimedia Serial Link 3 (GMSL3) interface with FAKRA connector supports up to 12 Gbps
  • Shielded coaxial cable to transmit power and data up to 15m

Sample Price

ContactUs

Documents

Download Document

Supported Platforms,

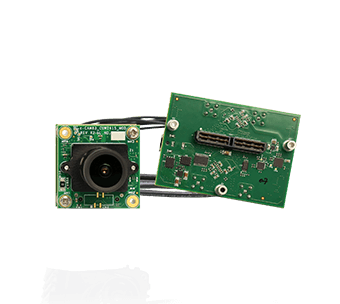

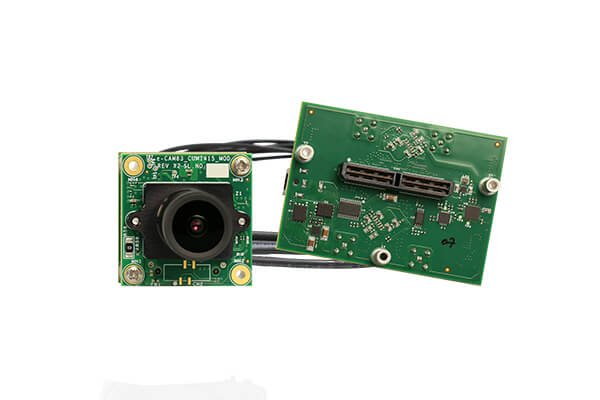

Nile3CAM85_CUOAGX is an 8 MP ultra-low light GMSL3 camera for NVIDIA® Jetson Xavier™ / Orin™ development kit. It houses Nile3CAM85 - a 1/2.8" Sony® Starvis™ IMX715 camera module.

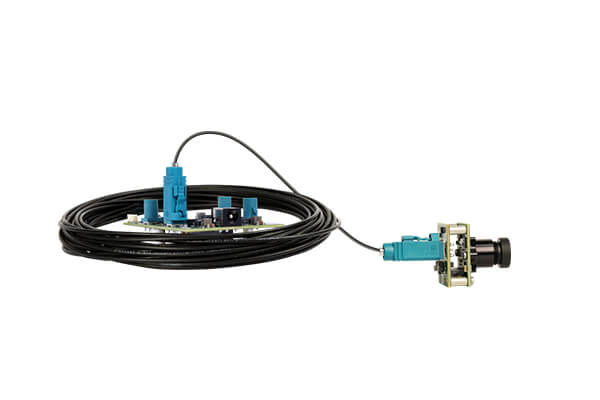

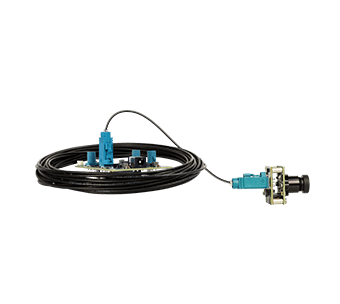

With a coaxial cable length of up to 15m and data transfer of up to 12 Gbps, Nile3CAM85_CUOAGX with Gigabit Multimedia Serial Link 3 (GMSL3) offers greater flexibility to place the cameras in mechanically challenging designs.

The flexibility of coaxial cable and the ability to carry video data of HD @ 132fps, Full HD @ 90fps, and 4K @ 90fps, control data, and power in a single cable makes Nile3CAM85_CUOAGX camera fast (low latency), flexible and yet reliable.

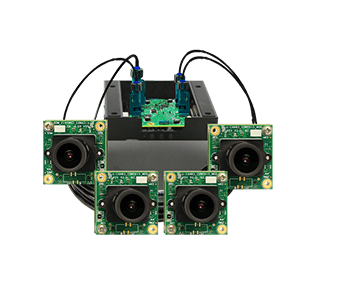

Also, this multi-camera solution connects up to four 8 MP custom lens camera modules with the Jetson Xavier™/ Orin™ development kit. Nile3CAM85_CUOAGX is also backward compatible with GMSL2. SW2 switch is used for selecting GMSL3 or GMSL2 mode.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate:
      • Streams HD @ 132fps, Full HD @ 90fps, and 4K @ 90fps
      Refer pdfDatasheet for complete frame rate details.
    • Output format: Uncompressed GBRG RAW10/RAW12 format
    • High-speed MIPI CSI-2 interface to connect with the CPU
    • Control for individual cameras
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GMSL3 (12Gbps)
    • Connector: FAKRA connector
    • Cable Length: 15m
    • Backward compatible with GMSL2 mode (6Gbps)
  • Sensor features:
    • Sensor: IMX715 sensor from SONY® Starvis
    • Focus Type: Fixed focus
    • Sensor Resolution: 8MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/2.8"
    • Output Format: GBRG RAW10/RAW12
    • Pixel Size: 1.45 μm (H) × 1.45 μm (V)
    • Sensor Active Area: 3848(H) x 2168(V)
    • Array Size: 3840(H) x 2160(V)
    • Holder: M12 (S-Mount)
    • FOV: 131° (D), 113° (H), 61° (V)(with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 12V
    • Operating Temperature Range: -30°C to 70°C
    • Typical power consumption: 5.3W
    • Size in mm (l x b):
      • Serializer board - 30 x 30 mm
      • Deserializer board - 75 mm x 55 mm
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
Linux camera driver:

Full-fledged Linux camera driver for Nile3CAM85_CUOAGX with NVIDIA® Jetson AGX Orin™ / AGX Xavier™ developer kit. The camera driver source code can be ported to any NVIDIA AGX Orin platform.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson AGX Orin™ / AGX Xavier™ - Jetpack 5.1 L4T35.2.1
  • V4L2 Linux driver for MIPI CSI-2 camera module:
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture
  • Camera Controls:
    • Exposure (both manual and automatic)
    • Sensor Gain
    • Exposure Time
    • Frame Rate
    • Sensor Mode Index
    • Denoise
    • Edge Enhancement
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
 Bullat Arrow  Datasheet

Download Full HD GMSL2 Camera Documents

Nile3CAM85_CUOAGX - Customization for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for Nile3CAM85_CUOAGX on any application platform as per customer requirements.

Nile3CAM85_CUOAGX - Customization:

e-con provides customization, development and porting services for the following requirements:

  • IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
  • Support for other processor platforms
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
