e-CAM25_CUONX - FHD AR0234 Global Shutter Camera for NVIDIA® Jetson Orin NX / Orin Nano

Highlights:

  • Houses e-CAM217_CUMI0234_MOD - Full HD Camera Module with S-mount lens holder
  • Global Shutter
  • High-speed MIPI CSI-2 interface to connect with the CPU

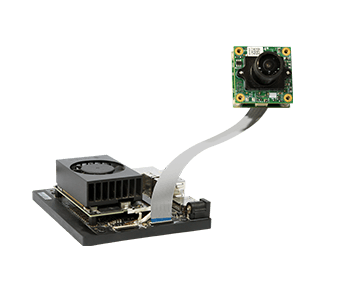

  • Plugs in to NVIDIA® Jetson Orin NX / Orin Nano Developer Kit

Sample Price

buy now

Documents

Download Document

Supported Platforms,

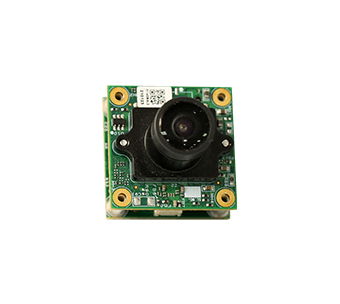

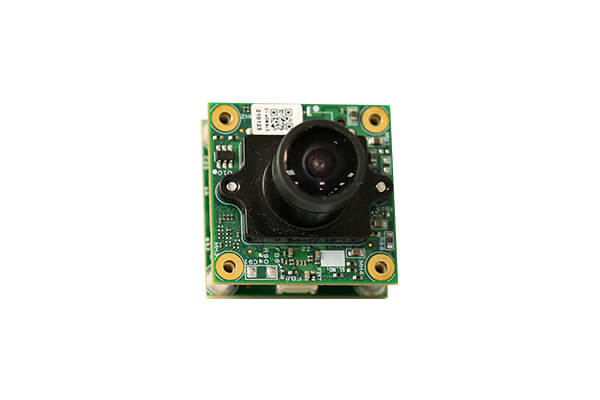

e-CAM25_CUONX is a Full HD MIPI CSI-2 global shutter camera for NVIDIA® Jetson Orin™ NX / Orin Nano platforms. This camera is based on a 1/2.6" AR0234CS global shutter sensor with a fine-tuned image signal processor (ISP).

Its global shutter capability along with a 120 fps frame rate helps to minimize frame-to-frame distortion and reduces motion artifacts while capturing scenes with moving targets.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate:
      • HD @ 120 fps, Full HD @ 70fps & 2.3MP @ 60fps
      Refer pdfDatasheet for complete frame rate details.
    • Uncompressed UYVY streaming
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: MIPI CSI-2
    • Connector: FPC flex cable
    • Cable Length: 15cm
  • Sensor features:
    • Sensor: AR0234 from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: 2.3MP
    • Chroma: Color
    • Shutter Type: Global Shutter
    • Optical Format: 1/2.6"
    • Output Format: Uncompressed UYVY format
    • Pixel Size: 3μm x 3μm
    • SNR: 38 dB
    • Dynamic Range: 71.4 dB
    • Sensor Active Area: 1920H x 1200V
    • Array Size: 1920H x 1200V
    • Holder: M12 (S-Mount)
    • FOV: 128.2°(D), 104.6°(H), 61.6°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 3.3V +/- 5%
    • Operating Temperature Range: -30°C to +70°C
    • Typical power consumption: TBD
    • Size in mm (l x b x h): 30mm x 30mm
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
Linux camera driver:

Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's e-CAM25_CUONX on NVIDIA® Jetson Orin NX / Orin Nano™ developer kit.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson™ ORIN NX / Orin nano - JetPack 6.0.0 L4T36.3.0
  • V4L2 Linux driver for MIPI CSI-2 camera module:
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
  • Camera Controls:
    • Brightness
    • Contrast
    • Saturation
    • White Balance (both manual and automatic)
    • Gamma
    • Gain
    • Horizontal Flip
    • Vertical Flip
    • Sharpness
    • Exposure (both manual and automatic)
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download Full HD Global Shutter Camera Documents

  • e-CAM217_CUMI0234_MOD - Full HD MIPI Camera Module with lens
  • Adaptor board
  • Flex Cable (15 cm)
  • Linux Driver & Sample Application
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
