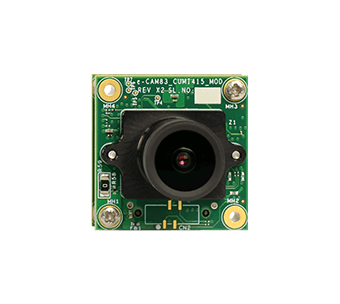

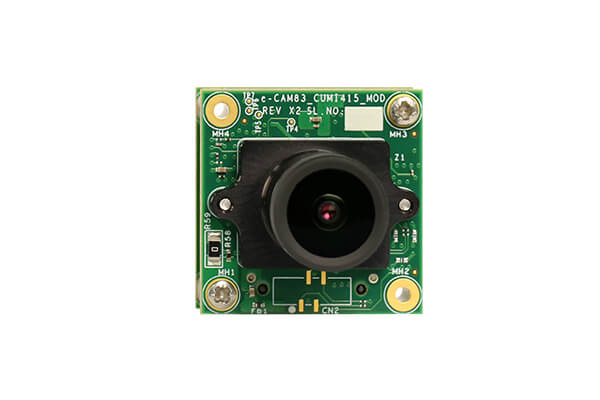

Nile3CAM85 - SONY® STARVIS™ IMX715 GMSL3 Camera Module (15m cable support)

• Key features:
• • Frame Rate: Streams HD @ 132fps, Full HD @ 90fps, and 4K @ 90fps
    Refer Datasheet for complete frame rate details.
  • Output format: Uncompressed GBRG RAW10/RAW12 format
  • S-mount lens holder for flexibility to choose a lens as per application requirements
  • Lightweight, versatile, and portable design
• Interface:
• • Interface: GMSL3 (12Gbps)
  • Connector: FAKRA connector
  • Cable Length: 15m
• Module features:
• • Sensor: IMX715 sensor from SONY® Starvis
  • Focus Type: Fixed focus
  • Sensor Resolution: 8MP
  • Chroma: Color
  • Shutter Type: Electronic Rolling Shutter
  • Optical Format: 1/2.8"
  • Output Format: GBRG RAW10/RAW12
  • Pixel Size: 1.45 μm (H) x 1.45 μm (V)
  • Sensor Active Area: 3848(H) x 2168(V)
  • Array Size: 3840(H) x 2160(V)
  • Holder: M12 (S-Mount)
  • FOV: 131° (D), 113° (H), 61° (V) (with the lens provided by e-con)
• Electrical & Mechanical:
• • Operating Voltage: 12V
  • Operating Temperature Range: -30°C to 70°C
  • Typical power consumption: 5.3W
  • Size in mm (l x b): 30 x 30 mm
• Miscellaneous:
• • Compliance: RoHS
• Launched on:

Part No	Supported Platforms	Sample Price (1 Unit)	Purchase

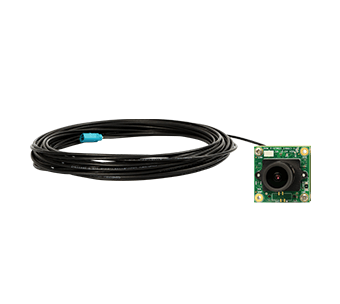

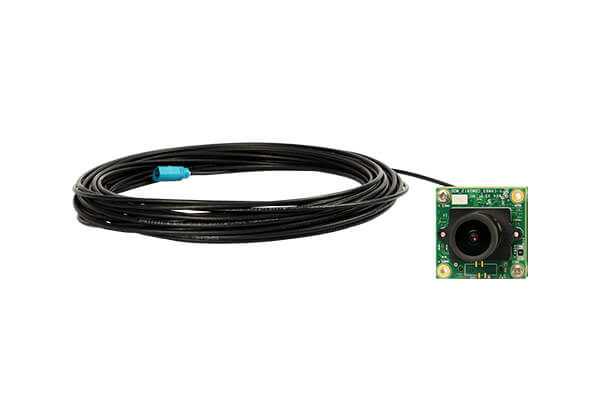

Nile3CAM85_CUOAGX Kit Contents Nile3CAM85 - 8MP Sony IMX715 camera module with lens 15 meter coaxial cable Deserializer board	NVIDIA® Jetson AGX Orin™ / AGX Xavier Dev Kit	-



   Datasheet

Nile3CAM85 - 8MP GMSL3 Camera Module Datasheet

Nile3CAM85 - Customization for other Application Processor platforms:

e-con Systems® provides camera driver development, customization and porting services for Nile3CAM85 on any application platform as per customer requirements.

Nile3CAM85 - Customization

e-con provides customization, development and porting services for the following requirements:

• IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications
• Length of the co-axial cable
• Change of lens to meet your FOV and other requirements
• Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
• Support for other processor platforms
• Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com
