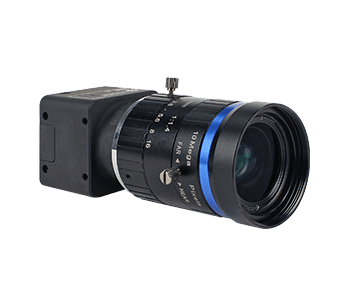

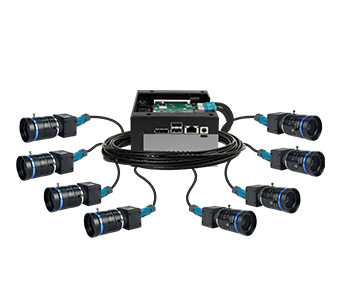

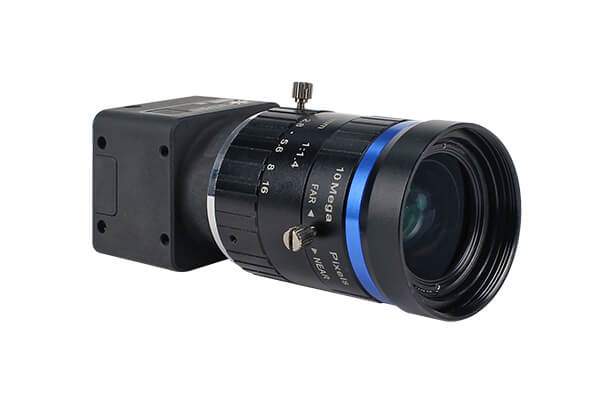

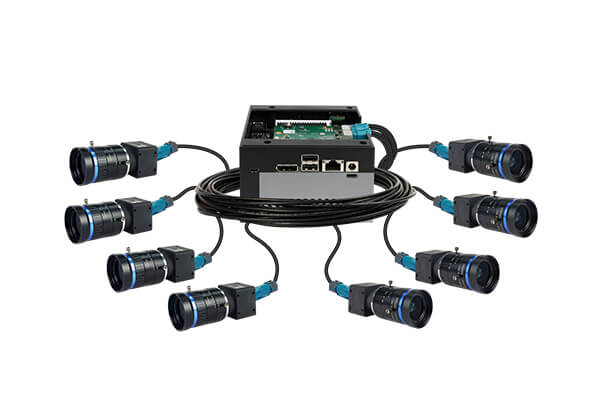

NileCAM87_CUOAGX is a 4K camera module that can be readily integrated with NVIDIA® Jetson AGX Orin™ developer kit. This camera is based on the 1/1.2" IMX585 CMOS sensor from Sony® Starvis™ 2. This 4K camera is ideal for applications that require monitoring a huge area such as Autonomous Mobile Robots, Sports Broadcasting & Analytics, Autonomous Tractors, People Detection, Crowd Analytics Systems, Telehealth Devices, etc. This camera contains NileCAM87 - an 8.4MP color camera module with GMSL serializer, a 15 meter coaxial cable and an GMSL deserializer board with 8 camera connectors.
Refer
Datasheet for complete frame rate details.
- Key features:
-
- Frame Rate:
- Full HD @ 44 fps, 4K @ 44 fps
Datasheet for complete frame rate details.
- High-speed MIPI CSI-2 interface to connect with the CPU
- Lightweight, versatile, and portable design
- Frame Rate:
- Interface:
-
- Interface: GMSL2
- Connector: FAKRA connector
- Cable Length: 15m
- Module features:
-

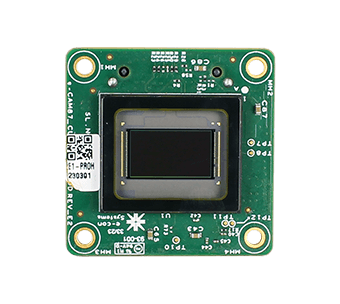

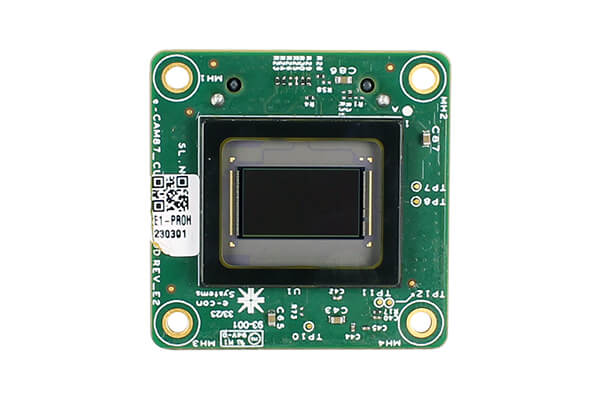

- Sensor: IMX585 from Sony® Starvis™ 2
- Focus Type: Fixed focus
- Sensor Resolution: 8.4MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/1.2"
- Output Format: RGB RAW 10/12-bit
- Pixel Size: 2.9 μm x 2.9 μm
- Sensor Active Area: 3856 (H) x 2180 (V)
- Array Size: 3856 (H) x 2200 (V)
- Holder: C-Mount
- FOV: 33° (D), 29° (H), 15° (V) (with the lens provided by e-con)
- Electrical & Mechanical:
-
- Operating Voltage: 5 to 15V with +/- 5%
- Operating Temperature Range: -30°C to 70°C
- Typical power consumption: 650mW
- Size in mm (l x b):
- Camera module: 30 x 30 mm
- Deserializer board: 80.8 x 55 mm
- Miscellaneous:
-
- Compliance: RoHS
- Launched on:
Linux camera driver:
Full-fledged Linux camera driver for NileCAM87_CUOAGX with NVIDIA® Jetson AGX Orin™ developer kit. The camera driver source code can be ported to any NVIDIA Jetson AGX Orin platform.
- Supported Jetpack & L4T Version
-
- Jetson AGX Orin™ - JetPack 5.1.2 L4T35.4.1
- V4L2 Linux driver for MIPI CSI-2 camera module:
-
- Video preview
- Still Image capture
- Camera controls via IOCTLs
- Sample application with source Code for Linux:
-
- Video Preview
- Still Image capture at selected resolutions
- Camera Controls:
-
- Exposure Time Range
- Gain Range
- ISP Digital Gain Range
- Sensor Mode Index
- Frame Rate
- De-Noise Mode
- De-Noise Strength
- Edge Enhance Mode
- Edge Enhance Strength
- Auto Exposure (AE) Antibanding Mode
- Auto White Balance (AWB) Mode
- Exposure Compensation
- AE Lock
- AWB Lock
- Output Size
- Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
NileCAM87_CUOAGX - Customization and Porting Services for other Application Processor platforms:
e-con Systems™ provides camera driver development, customization and porting services for NileCAM87_CUOAGX on any application platform as per customer requirements.
NileCAM87_CUOAGX - Customization
e-con provides customization, development and porting services for the following requirements :
- IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
- Length of the co-axial cable
- Change of lens to meet your FOV and other requirements
- Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
- Support for other processor platforms
- Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
