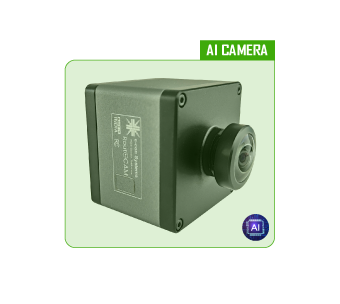

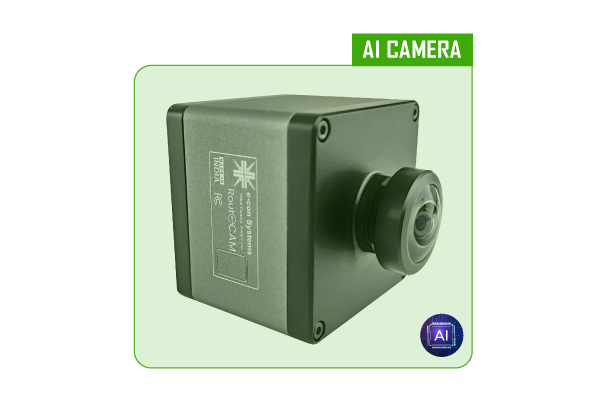

SMARTOdin25_PoE_IP67 - AR0234 Smart AI Global Shutter Camera

Highlights:

  • Power-over-Ethernet camera equipped with AI capabilities
  • Houses Full HD onsemi® AR0234 CS Global Shutter Image Sensor
  • On-board high performance ISP
  • PTP Network Synchronization **
  • On-board NPU - 1.2 TOPS (max)

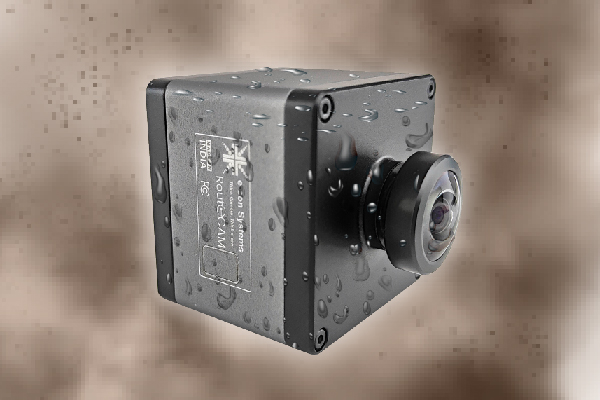

  • IP67 Rated Enclosure
  • Compatible with CloVis Central™ - Device Management Platform
  • Supported AI Models: Face detection, Object detection (Person, Bicycle, Motorcycle, Car, Bus, Truck)

Sample Price

SMARTOdin25_PoE_IP67 is a Full HD GigE camera for accurate and fast capture of moving scenes at 60 fps in full resolution. This global shutter camera captures images at a high frame rate, which helps to minimize frame-to-frame distortion and reduce motion blur while capturing fast-moving objects to produce smoother images with greater scene details. The GigE interface of this camera enables the transfer of video data with a maximum cable length of up to 100m.

This GigE camera comes with an in-built ISP that ensures superior image quality leveraging the auto white balance and auto exposure functions. It also has an M12 lens holder that offers product developers the ability to choose the lens of their choice. Further, it can stream compressed Full HD data at 60 fps in the MJPEG, H.264, and H.265 formats.

  • Key features:
    • Frame Rate: HD @ 60 fps & Full HD @ 60 fps
    • Output format: Compressed MJPEG, H.264, H.265
    • Shielded Cat5e or Cat6 ethernet cable for transmission of both power and data for long distance (up to 100m)
    • Cloud connect - FCAPS, Firmware Upgrade, Video streaming
    • Auto Exposure & Auto White Balance
    • Unique ID for each camera
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GigE

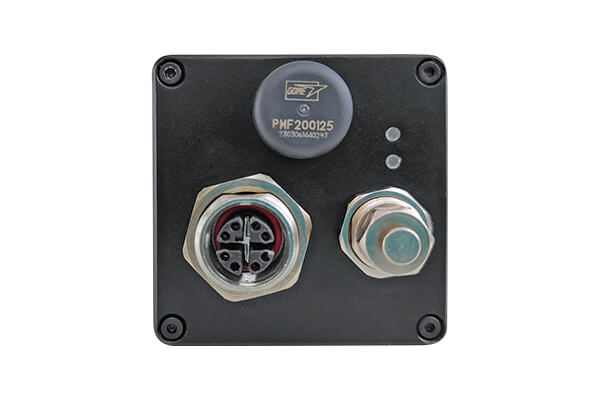

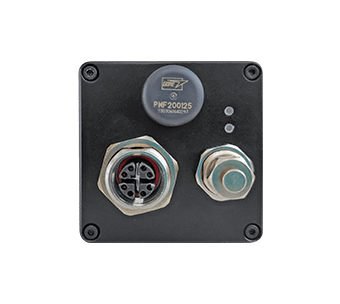

    • Connector: M12
    • Cable length: 3m
  • Camera features :
    • Sensor: AR0234CS from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: Full HD
    • Chroma: Color
    • Shutter type: Global Shutter
    • Optical Format: 1/2.6"
    • Output Format: Uncompressed UYVY and Compressed MJPEG
    • Pixel size: 3μm x 3μm
    • Sensor Active Area: 1920(H) x 1200(V)
    • Array Size: 1920(H) x 1200(V)
    • Responsivity: 56 Ke-/luxsec
    • SNR: 38 dB
    • Dynamic Range: 71.4 dB
    • Holder: M12 (S-Mount)
    • FOV: 128.2°(D), 104.6°(H), 61.6°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: TBD
    • Operating Temperature Range: -30°C to 70°C
    • Power requirements: TBD
    • Size in mm (l x b x h) : TBD
  • Miscellaneous:
    • Compliance: FCC, RoHS

* - Not available with the off-the-shelf version. Please contact camerasolutions@e-consystems.com for more details.

** - For PTP network sync support, please contact camerasolutions@e-consystems.com.

    • Supported OS - Windows, Linux
    • Supported Profiles - ONVIF supported Profiles S & T
    • Supported Streaming formats - MJPEG, H.265 and H.264
    • Supported Protocols - RTSP, RTCP, TCP/IP, UDP, HTTP, NTP, PTP, IPV4 & DHCP
    • Ethernet IP Configuration - DHCP
    • Features of RouteCAM Viewer Application
      • Automated IP Discovery & Streaming
      • Support for Camera Controls
      • Provision for changing resolution and format available in Linux.
    • Linux Socket Application for extended Camera features
    • OTA (Over-The-Air) Upgrade *
    • Cloud connect - FCAPS, Firmware Upgrade, Video streaming
  • Artificial Intelligence(AI) Models:
    • Dedicated NPU SDK
      • Object detection includes Persons, Bicycles, Motorcycles, Cars, Buses, Trucks
      • Face detection
    • Supported Model Architecture
      • mobilenetV2_SSDliteV1
      • mobilenetV2_SSDliteV2
      • mobilenetV2_SSDliteV1_full_rfb**
      • Yolov5s**
      • Yolov7-tiny**
    • To explore Artificial Intelligence(AI) Models, refer here » refer here»
  • Software controls:
    • Brightness
    • Contrast
    • Saturation
    • White Balance
    • Gamma
    • Gain
    • H Flip
    • V Flip
    • Sharpness
    • Exposure
    • Focus (only for liquid lens)
    • ROI size
    • Denoise
    • Exposure Compensation

Please contact camerasolutions@e-consystems.com for more details.

** Deformation of Original architecture

Model Description Explanation

Detects faces in an image
  • Number of Faces Detected
  • Time of Capture
  • Capture Image on Detection
  • Indicates the count of faces identified within the image.
  • Specifies the timestamp when the image containing faces was captured.
  • Triggers the system to capture an image whenever a face is detected.

Vehicle Detection
  • Total Vehicle Detections
  • Time of Capture
  • Breakdown by Category
  • Capture Image on Detection
  • Displays the total count of vehicles detected in the image.
  • Records the timestamp when the image was taken.
  • Classifies detected vehicles into categories such as cars, trucks, or motorcycles.
  • Initiates image capture whenever a vehicle is detected.

Front Vehicle Distance estimation
  • Vehicle Presence (yes/no)
  • Proximity Alert
  • Record Video on Close Proximity
  • Indicates whether there is a vehicle in front (yes) or (no).
  • Alerts if the distance to the front vehicle is too close, indicating a potential collision risk.
  • Activates video recording when the distance to the front vehicle becomes too close.

Perimeter Security
  • Proximity Alert
  • Capture Image on Detection
  • Triggers an alert when a person intrudes into a secured area, indicating a possible security breach.
  • Captures an image when a person intrusion is detected, allowing for visual documentation of the event.
SMARTOdin25_PoE_IP67 - Customization:
  • Do you need a different lens to meet your FOV and other requirements?
  • Do you need a lens with motorized control?
  • Do you want a different form factor?
  • Do you need LED flash?
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
