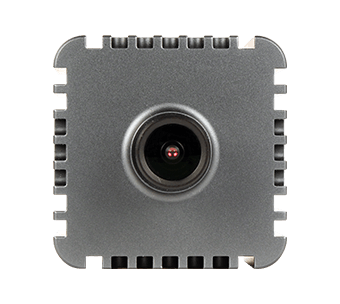

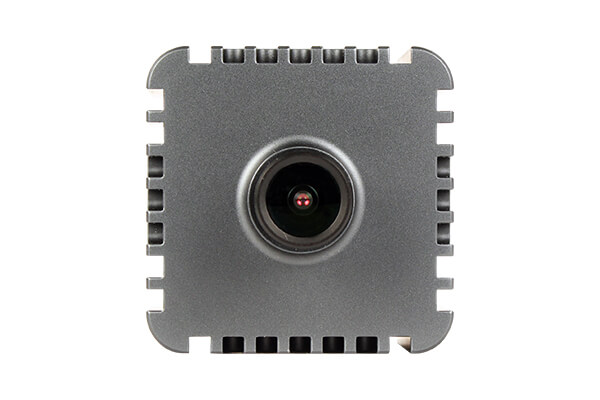

RouteCAM_CU20 - Sony® Starvis™ IMX462 Full HD GigE Camera

• Key features:
• • Frame Rate: Full HD @ 60 fps & VGA @ 60 fps
    Refer Datasheet for complete frame rate details.
  • Output format: Compressed MJPEG, H.264, H.265

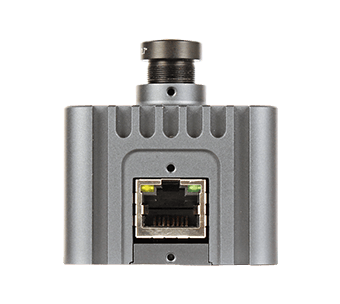

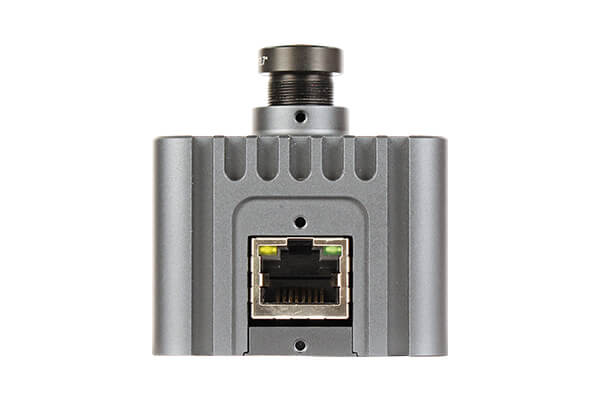

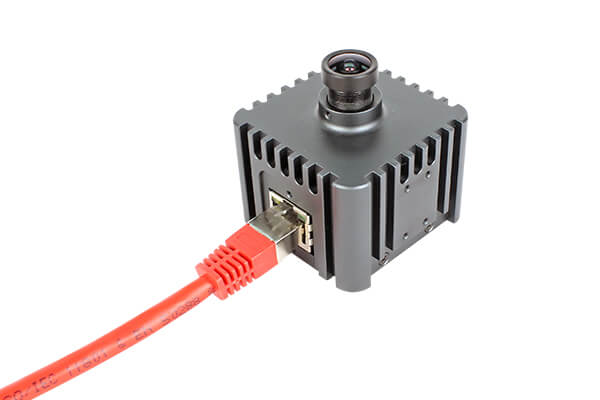

  • Ethernet interface with RJ45 connector
  • Shielded Cat5e or Cat6 ethernet cable for transmission of both power and data for long distance (up to 100m)
  • Can stream up to 4 simultaneous streams
  • Auto Exposure & Auto White Balance
  • Motorised lens control ^*
  • Unique ID for each camera
  • Lightweight, versatile, and portable design
• Module features:
• • Sensor: IMX462 from SONY®
  • Focus Type: Fixed focus
  • Sensor Resolution: 2MP
  • Chroma: Color
  • Shutter type: Electronic Rolling Shutter
  • Optical Format: 1/2.8"
  • Output Format: Compressed MJPEG, H.264, H.265
  • Pixel size: 2.9 μm x 2.9 μm
  • Sensor Active Area: 1937H x 1097V
  • Array Size: 1937 x 1097 Pixels
  • Holder: M12 (S-Mount)
  • FOV: Full HD - 121.35°(D), 102.69°(H), 51.9°(V) (with the lens provided by e-con)
• Electrical & Mechanical:
• • Operating Voltage: 44V to 57V (PoE Standard IEEE802.3af standard)
  • Operating Temperature Range: 0 to 50°C
  • Power requirements: 2.2W
  • Size in mm (l x b x h) :
    • Without lens: 48mm x 48mm x 41.9mm
    • With lens: 48mm x 48mm x 53.1mm
  • Board weight:
    • Without lens: 114 Grams
    • With lens: 120 Grams
• Miscellaneous:
• • Compliance: RoHS, FCC
• Launched on:
• * - Not available with off-the-shelf version. Please contact camerasolutions@e-consystems.com for more details.
• ** - For PTP network time sync support, please contact camerasolutions@e-consystems.com

• Supported OS - Windows and Linux
• Supported Profiles- ONVIF supported Profiles S & T
• Supported Streaming formats - H.264/H.265
• Ethernet IP Configuration - DHCP
• Features of RouteCAM Viewer Application
  • Automated IP Discovery & Streaming
  • Support for Camera Controls
  • Provision for changing resolution and format available in Linux.
• Linux Socket Application for extended Camera features
• OTA (Over-The-Air) Upgrade *
• Software controls:
• • Exposure (Auto/Manual)
  • WhiteBalance (Auto/Manual)
  • Brightness
  • Saturation
  • Contrast
  • Sharpness
  • Gain
  • HDR
• * - Please contact camerasolutions@e-consystems.com for more details.

Customers can order RouteCAM_CU20 with or without PoE Injector / enclosure.

Part No	Description	Sample Price (1 Unit)	Purchase
RouteCAM_P_S1G_CU20_CHLC_BX_H05R3	Full HD PoE camera with lens, with 1m shielded ethernet cable(2 No), with enclosure, and with POE injector
RouteCAM_P_S1G_CU20_CHLC_BX_H04R3	Full HD PoE camera with lens, with 1m shielded ethernet cable, with enclosure and without POE injector	-

In addition to RouteCAM_CU20, the evaluation kit comes with RouteCAMView - Sample application for Video Preview and Still Capture. For more details, please refer to the evaluation kit contents below.

For all enquiries please write to camerasolutions@e-consystems.com for more details.

Kit Contents:

• Hardware:
• • RouteCAM_CU20 - Full HD GigE Camera with M12 Lens (S-Mount) Holder
  • 3meters ethernet cable
  • Metal enclosure (optional)
  • Lens (Optional)
  • PoE Injector, Small ethernet cable, and 48V Power Adaptor (optional)
• Software: (Customers will have to download the software from e-con Developer Resource).
• • Supported OS: Linux
  • RouteCAMView - Video Preview and Still Capture Application
• Documents:
• • RouteCAM_CU20 - Hardware and Software documents
• For all enquiries please write to camerasolutions@e-consystems.com

RouteCAM_CU20 – Customization

• Do you want IP-rated (IP67) enclosure for rugged applications?
• Do you need different lens to meet your FOV and other requirements?
• Do you need a lens with motorised control?
• Do you want a different form factor?
• Do you need LED flash?
• Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
