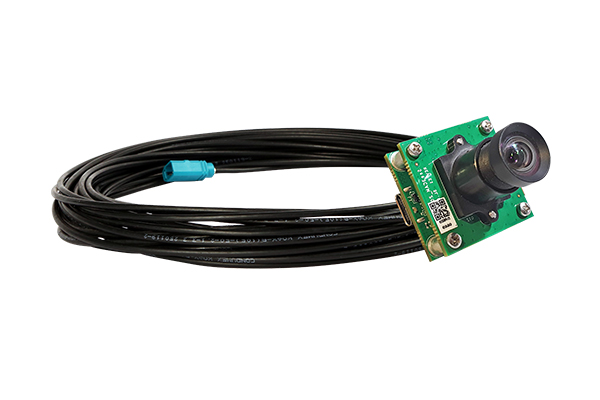

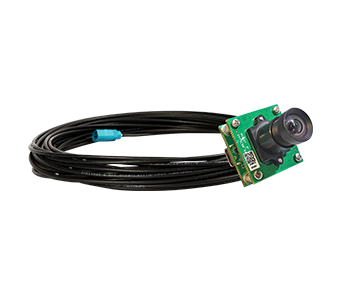

NileCAM29 - 2MP OV2311 Global Shutter Monochrome GMSL2™ Camera with 15m cable support

Tags: GMSL2™ Cameras

Highlights:

  • 2MP Monochrome camera based on the OV2311 sensor
  • Global Shutter
  • Superior low light and IR performance
  • External Trigger support
  • GMSL2™ interface to transmit power and data up to 15m

Samples Available

ContactUs

NileCAM29 is a 2.0 MP global shutter monochrome camera module based on OmniVision's 1/2.9" OV2311 image sensor. Utilizing this image sensor which features 3μm x 3μm OmniPixel® 3-GS technology, this camera excels in capturing detailed images with minimal motion blur, even at high frame rates. Its IR sensitivity helps to produce stunning image quality even in the Near Infrared (NIR) regions.

It has an S-mount (M12) lens holder, allowing customers to choose and use the lens according to their requirements. This GMSL camera is an ideal solution for various applications such as AGV, Driver monitoring systems, and Agricultural robotics.

  • Key features:
    • Frame Rate:
      • 2MP @ 40 fps
    • Output format: Y8 (8-bit)/Y16 (10-bit)
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GMSL2™
    • Connector: FAKRA connector
    • Cable Length: 15m
  • Sensor features:
    • Sensor: OV2311 from OmniVision™
    • Focus Type: Fixed focus
    • Sensor Resolution: 2MP
    • Chroma: Monochrome
    • Shutter Type: Global Shutter
    • Optical Format: 1/2.9"
    • Output Format: Y16 and Y8
    • Pixel Size: 3.0 μm x 3.0 μm
    • SNR: 37.4dB
    • Dynamic Range: 68dB
    • Sensor Active Area: 1600H x 1300V
    • Array Size: 1600 x 1300 Pixels
    • Holder: M12 (S-Mount)
    • DFOV: 71.6° (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 5 to 15V with +/- 5% tolerance
    • Operating Temperature Range: -30°C to +70°C
    • Power requirements: TBD
    • Size in mm (l x b): 30 x 30 mm
  • Miscellaneous:
    • Compliance: FCC, RoHS
 Bullat Arrow  Download NileCAM29 Documents

Documents 13MP GMSL 2 camera

Product Code Supported Platforms Sample Price
(1 Unit)
NileCAM29_CUOAGX
Kit Contents
  • NileCAM29 - 2MP Camera Module with S-mount lens holder
  • 15 meter coaxial cable
  • Deserializer board
 NVIDIA® Jetson AGX Orin / Xavier™ Dev Kit
ContactUs

NileCAM29_CUOAGX-NVIDIA® Jetson AGX Orin™/ AGX Xavier™ Dev Kit

ContactUs



NileCAM29 - Customization for other Application Processor platforms:

e-con Systems® provides camera driver development, customization and porting services for NileCAM29 on any application platform as per customer requirements.

NileCAM29 - Customization:

e-con provides customization for the following requirements:

  • IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
  • Support for other processor platforms
  • Camera and feature customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
