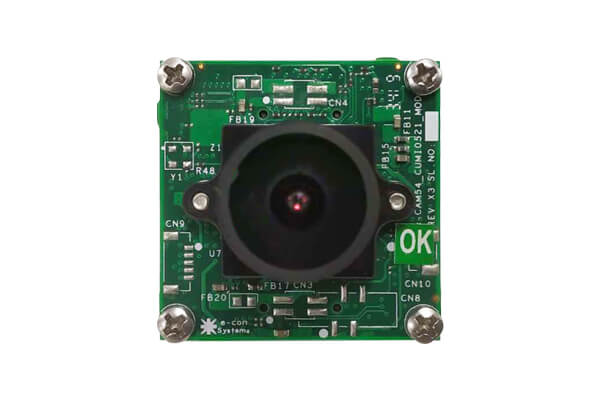

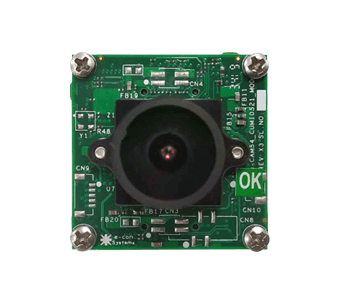

EdgeECAM50_USB - AI Smart USB Camera

• System:
• • Dual Core Processor: ARM Cortex-M7 @ 1 GHz + ARM Cortex-M4 @ 400 MHz
  • Internal RAM: 2 MB SRAM with 512 KB of TCM for Cortex-M7 and 256 KB of TCM for Cortex-M4
  • External SDRAM: 32 MB
  • SPI Flash: 32 MB
• Camera features:
• • Frame Rate: Streams VGA @ 30fps & 960p @ 16fps
    Refer Datasheet  for complete frame rate details.
  • Output format: Uncompressed UYVY & Y8
  • Supported OS: Windows, Linux, Android * and MAC *
  • USB 2.0 device with Mini-B interface connector
  • Unique ID for each camera
  • Lightweight, versatile, and portable design
• Module features:
• • Sensor: AR0521 from Onsemi
  • Focus Type: Fixed focus
  • Sensor Resolution: 5.0 MP
  • Chroma: Color
  • Shutter Type: Electronic Rolling Shutter
  • Optical Format: 1/2.5"
  • Output Format: UYVY and Y8
  • Pixel Size: 2.2μm x 2.2μm
  • Array Size: 2592 (H) x 1944 (V)
  • Holder: M12 (S-Mount)
  • SNR: 40 dB
  • Responsivity: 18.8 ke-/lux*sec
  • Dynamic Range: 74.3 dB
  • FOV: 140.5°(D), 110°(H), 82°(V) (with the lens provided by e-con)
• Electrical & Mechanical:
• • Operating Voltage: 5V +/- 5%
  • Operating Temperature Range: 0°C to 45°C
  • Power Requirements: 2.2W (max)
  • Size in mm (l x b x h): 30 x 30mm
• Miscellaneous:
• • Compliance: FCC, RoHS
• Launched on:
• * - For Android and MAC OS support, please contact camerasolutions@e-consystems.com

• Supported OS - Windows, Linux
• Sample Application:
• Edge-CAMView - Windows / Linux Camera application. Application supports the following
• • ROI Selection / Camera Configuration
  • UVC Settings
  • Model Deployment
  • Model Output Visualization
• Model Pack:
• To make it easy for you to get started with EdgeECAM50_USB, We provide Model Pack which contains sample models, configurations and post processing modules which can be loaded using Edge-CAMView.
The model pack has the following models:
• • Face Detection
  • Age Estimation
  • Gender Classification
  • Person Detection
  • Blood Collection Tube Cap Detection
• You can download the model pack from the Github repo

   Datasheet

 EdgeECAM50_USB Datasheet

 EdgeECAM50_USB Lens Datasheet

 EdgeECAM50_USB Getting Started Manual

Customers who own platforms that support USB 2.0 and are interested in evaluating the AI smart USB camera can directly buy the EdgeECAM50_USB from e‑con Systems™.

Part No	Description	Sample Price (1 Unit)	Purchase

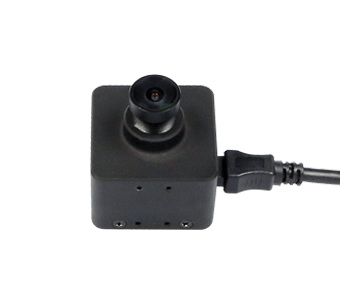

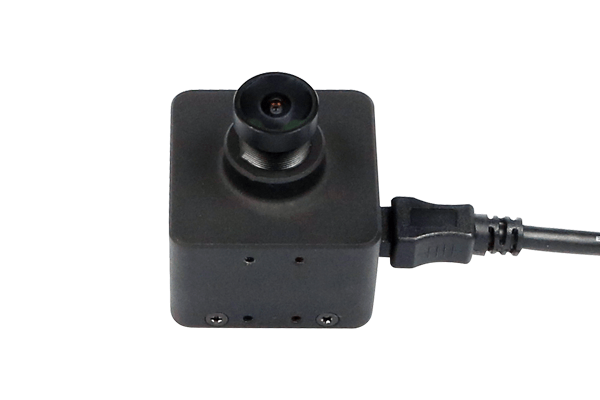

EdgeECAM50_USB	AI smart USB camera with enclosure

For all enquiries please write to camerasolutions@e-consystems.com

Kit Contents:

• Hardware:
• • EdgeECAM50_USB - AI smart USB camera with enclosure
  • USB 2.0 Cable
• Software:(Customers must download the software from e-con Developer Resource)
• • Supported OS: Windows, Linux
  • Edge-CAMView – Windows / Linux Camera application.

EdgeECAM50_USB – Customization

• Do you want a smaller form factor?
• Do you want LED?
• Do you want other customization options?
• Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
