e-CAM84_CUMI485C_MOD - Sony® Starvis™ IMX485 Ultra-Lowlight Camera Module

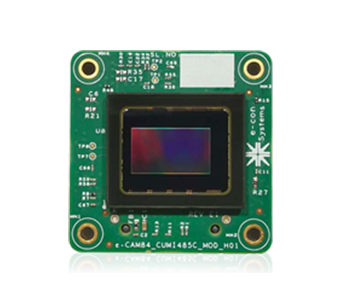

e-CAM84_CUMI485C_MOD is an 8MP ultra low light camera module. This MIPI camera module is based on a SONY® STARVIS™ IMX485 sensor. The high sensitivity of this camera module helps to capture images in extremely low lighting conditions making it possible to detect and capture objects accurately even in dark scenes.

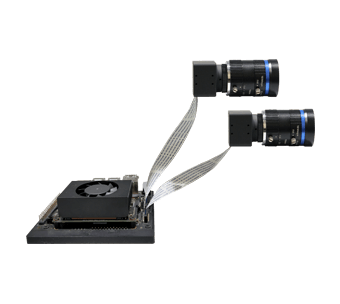

This high sensitivity camera uses MIPI CSI-2 interface to connect with NVIDIA® Jetson development kits. It also utilizes NVIDIA® Jetson's ISP for automatic exposure, white balance controls, and other image processing pipeline.

  • 8MP SONY STARVIS™ camera with MIPI CSI-2 interface
  • 1/1.2" Optical Form-factor
  • RGB RAW 12-bit and 10-bit data per pixel
  • Plugs in to NVIDIA Jetson AGX Orin / Xavier NX / AGX Xavier development kits
  • CS-mount interchangeable lens holder for flexibility to choose a lens as per application requirements *
  • Frame Rate: 4K@60fps, Full HD@90fps
    Refer pdfDatasheet for complete frame rate details.
  • Operating Temperature Range: -30°C to 70°C
  • Power consumption: ~500mW
  • Small form-factor
  • board size in mm (l x b): 30mm x 30mm (Height depends on the Lens)
  • Compliance:
    • RoHS
  • Launched on: launch date
  • * - CS-Mount holder comes with an enclosure. CS-Mount to C-Mount converter is also available.

Sensor:IMX485 from SONY® STARVIS™

Focus Type:Fixed focus

Sensor Resolution:4K

Chroma:Color

Shutter type:Electronic Rolling Shutter

Optical format:1/1.2"

Output Format:RAW Bayer 10/12-bit

Pixel size:2.9 µm x 2.9 µm

Holder:CS-Mount *

Sensor Active Area:3864H x 2180V

Array Size:3864(H) × 2200(V)

DFOV :8MP – 33° (with the lens provided by e-con)

* - CS-Mount holder comes with an enclosure. CS-Mount to C-Mount converter is also available.

Download e-CAM84_CUMI485C_MOD Documents:

pdf 4K Ultra Lowlight MIPI Camera Datasheet
Product Code Supported Platforms Sample Price
e-CAM82_CUOAGX
Kit Contents
  • e-CAM84_CUMI485C_MOD - 4K Ultra-Lowlight MIPI camera module
  • Base board
  • Adaptor board
  • Micro Coaxial Cable
  • Metal enclosure
  • Linux Driver & Sample Application
»  NVIDIA® Jetson AGX Orin™ Dev Kit
e-CAM82_CUNX
Kit Contents
  • e-CAM84_CUMI485C_MOD - 4K Ultra-Lowlight MIPI camera module
  • Adaptor board
  • CS-Mount to C-Mount converter (Optional)
  • Flex Cable (15 cm)
  • Lens (optional)
  • Metal enclosure
  • Linux Driver & Sample Application
»  NVIDIA® Jetson Xavier™ NX Dev Kit Contact US
e-CAM82_CUONX
Kit Contents
  • e-CAM84_CUMI485C_MOD - Ultra low-light MIPI camera module
  • Adaptor board
  • FPC Flex Cable (15 cm)
  • CS-Mount to C-Mount converter (Optional)
  • Lens (optional)
  • Metal enclosure
  • Linux Driver & Sample Application
»  NVIDIA® Jetson Orin NX / Orin Nano Dev Kit Contact US

Other supported Platforms:

  • NVIDIA® Jetson AGX Xavier™ Dev Kit

Customers interested in customizing the same camera module or planning to use a different camera/sensor module can contact sales@e-consystems.com and explain their requirement.

e-CAM84_CUMI485C_MOD - Customization for other Application Processor platforms:

e-con provides customization for this e-CAM84_CUMI485C_MOD on any application platform as per customer requirements.

e-CAM84_CUMI485C_MOD Customization:

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization for C/S mount lens holder
  • Driver development for any OS: Linux, Android
  • Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX Xavier, Nano and any other processor
  • Camera and features customization based on specific requirements

Customers interested in customizing the same camera module or planning to use a different camera/sensor module can contact sales@e-consystems.com and explain their requirement.
