e-CAM31_CUOAGX - SONY ISX031 120dB HDR camera for NVIDIA® Jetson AGX Orin™

HDR Cameras

Highlights

  • Houses 3MP Sony® ISX031 sensor incorporating sub-pixel technology
  • High Dynamic Range (HDR) up to 120dB + LFM
  • High-speed 4-lane MIPI CSI-2 interface to connect with the CPU
  • Plugs into NVIDIA® Jetson AGX Orin™ developer kit

Sample Price

ContactUs

Supported Platforms,

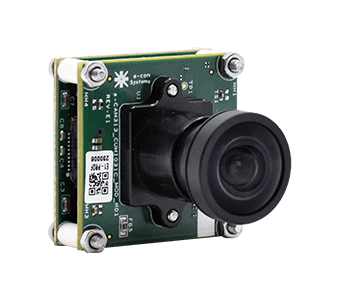

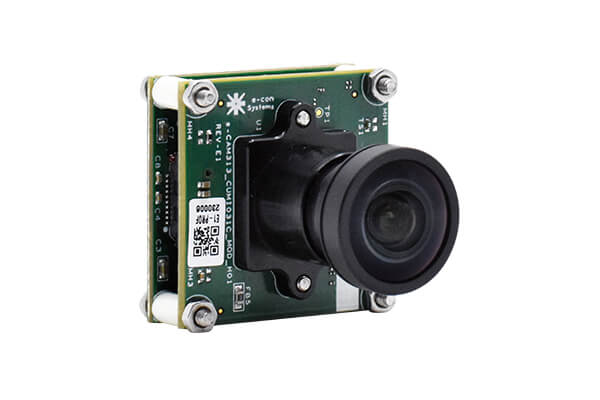

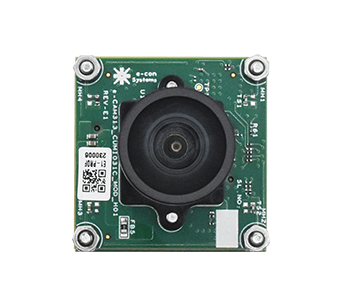

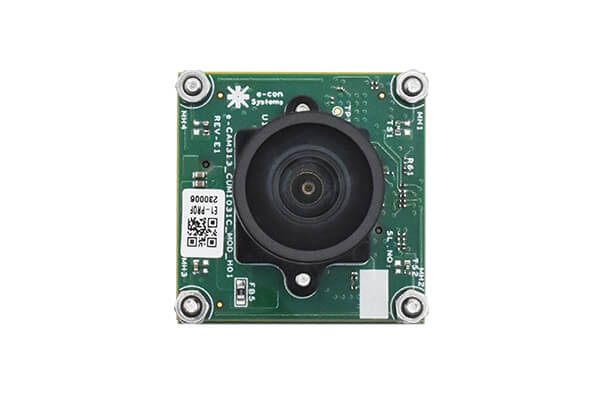

e-CAM31_CUOAGX is a 3 MP MIPI CSI-2 camera for NVIDIA® Jetson AGX ORIN™. This orin camera is based on the Sony ISX031 image sensor.

The subpixel technique in this ISX031 sensor aids in an impressive HDR performance of up to 120 dB which ensures reliable images without motion blur even in challenging outdoor light conditions.

This camera can be directly connected with the NVIDIA® Jetson AGX Orin™ developer kit and is capable of streaming video data of 3MP @ 60fps. It also comes with an S-Mount holder, allowing customers to choose the lens according to their requirements.

  • Key features:
    • Frame Rate
      • Streams 1920 x 1536 @60 fps, 1920 x 1080 @60 fps
    • Output format: YUV
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: MIPI CSI-2
    • Connector: Micro coaxial cable with I-PEX (CN2) connector
    • Cable Length: 30cm (1m*)
  • Module Features:
    • Sensor: ISX031 from Sony®
    • Focus Type: Fixed focus
    • Focus Distance: 1m to Infinity
    • Sensor Resolution: 3MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/2.42"
    • Output Format: YUV
    • Pixel Size: 3μm x 3μm
    • Sensor Active Area: 1937 (H) x 1553 (V)
    • Array Size: 1937 (H) x 1553 (V)
    • Dynamic Range: Max upto 120 dB
    • Lens Holder: M12 (S-Mount)
    • FOV: TBD
  • Electrical & Mechanical:
    • Operating Voltage: 5 to 15V with +/- 5% tolerance
    • Operating Temperature Range: -40°C to 85°C
    • Typical power consumption: TBD
    • Size in mm (l x b): 30mm x 30mm
  • Miscellaneous
    • Compliance:
      • RoHS
  • Launched on: launching date
  • * - 1-meter cable will be available on special request.
  • Linux camera driver:
    • Full-fledged Linux camera driver for e-CAM31_CUOAGX with NVIDIA® Jetson AGX Orin™ developer kit. The camera driver source code can be ported to any NVIDIA AGX Orin platform.
  • Supported Jetpack & L4T Version:
    • Jetson AGX ORIN - Jetpack 5.1.1 L4T 35.3.1
  • V4L2 Linux driver for MIPI CSI-2 camera module:
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video preview
    • Still Image capture
  • Camera Controls:
    • Exposure (both manual and automatic)
    • Sensor Gain
    • Exposure Time
    • Frame Rate
    • Sensor Mode Index

Please contact camerasolutions@e-consystems.com for any customization or porting of the camera driver to your requirements.

  • 3MP ISX031 MIPI Camera Module
  • Adaptor board
  • S-Mount lens (optional)
  • IPEX cable
  • Linux Driver & Sample Application

Please contact camerasolutions@e-consystems.com for any customization or porting of the camera driver to your requirements.
