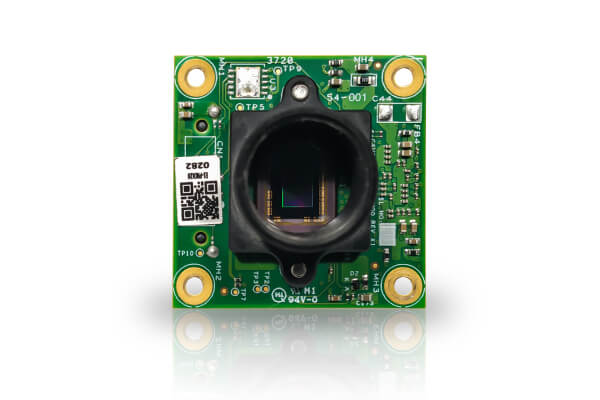

e-CAM27_CUMI290_MOD - 2MP Sony STARVIS® IMX290 ultra-lowlight Camera Module

The e-CAM27_CUMI290_MOD is a 2MP ultra-low light MIPI camera module with a well-tuned Image Signal Processor (ISP). This camera is based on 1/2.8" SONY STARVIS IMX290 Image sensor with 2.9 μm pixel size. The camera's wide dynamic range helps to capture scenes in both very bright and dark areas. Its effective pixel back-illuminated technology with improved sensitivity in the visible-light and near-infrared light enables customers to capture images even in absolute darkness.

Key Features

  • 2MP Colour camera with 4-lane MIPI CSI-2 interface
  • 1/2.8" Optical Form-factor
  • S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements
  • RAW 10/12 bit data per pixel
  • Maximum Image Transfer Rate
  • Resolutions UYVY
    VGA (640 x 480) 30 fps & 60 fps
    HD (1280 x 720) 30 fps & 60 fps
    Full HD (1920 x 1080) 30 fps & 60 fps
  • Temperature Range
    • Functional Temperature Range: -30°C to 85°C
  • Small form-factor
  • 30mm x 30mm size. Height depends on the Lens
  • Compliance
    • FCC
    • RoHS
  • Launched on:launch date

Sensor:1/2.8" Optical format CMOS Image sensor

Focus Type:Fixed focus

Resolution:2.0 MP

Pixel size:2.9 µm x 2.9 µm

Sensor Active Area:1945H x 1097V

G sensitivity:1300mV for HCG mode and 650mV for LCG mode

Output Format:RAW 10/12 bit

Shutter type:Electronic Rolling Shutter

Holder:S-Mount

ISP:External ISP

DFOV :132°(with the lens provided by e-con)

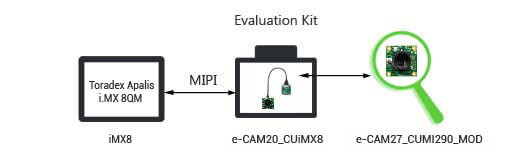

Evaluation Kit:

1. ARM Based Solution (Toradex Apalis i.MX8QM)

e-CAM20_CUiMX8 - 2MP Sony® STARVIS™ IMX290 Ultra-Lowlight Camera (Requires Toradex Apalis i.MX8QM carrier board):

The MIPI Camera daughter card (e-CAM20_CUiMX8) can be bought by customers choosing to evaluate the e-CAM27_CUMI290_MOD camera solution with a direct interface on the Toradex Apalis i.MX 8QM.

2MP Camera board
USD 149
CMOS USB Camera Customization

Customers interested in customizing the same camera module or planning to use a different camera/sensor module can contact sales@e-consystems.com and explain their requirement.

e-CAM27_CUMI290_MOD - Customization for other Application Processor platforms:

e-con provides customization for this e-CAM27_CUMI290_MOD on any application platform as per customer requirements. For any driver customization or porting services or for using this 2MP camera with your application processor platform, please contact sales@e-consystems.com along with your requirements details.

e-CAM27_CUMI290_MOD - Customization

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization for C/CS mount lens holder
  • Driver development for OS: Linux, Android
  • Interfacing with any Application Processor: NVIDIA Jetson Xavier NX, AGX Xavier, Nano and any other processor
  • Additional camera customization based on specific requirement

Please contact sales@e-consystems.com with your customization requirements and we will be glad to work with you!

pdf e-CAM27_CUMI290_MOD Documents

Download 2 MP Ultra Low light Camera Module Documents

SAMPLE PRICE
