e-CAM56_CUQRB5 - 5MP Sony Pregius S IMX568 Global shutter Camera for Qualcomm® Robotics RB5 Development Kit

Tags: Global Shutter Cameras | Qualcomm® RB5 Cameras

Highlights:

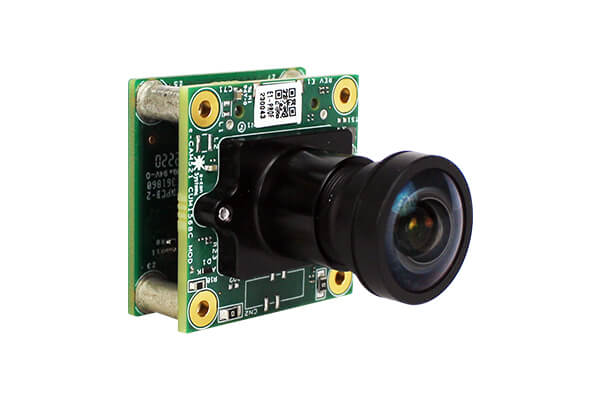

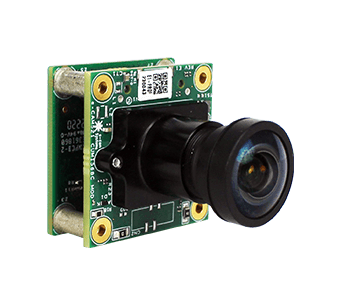

  • Houses e-CAM521_CUMI568C_MOD - 5MP camera based on Sony Pregius S IMX568 sensor
  • Global Shutter
  • High Sensitivity

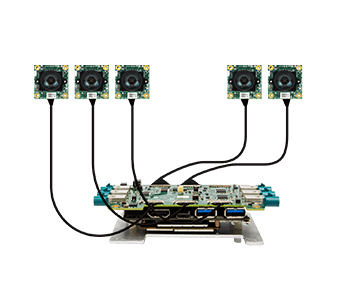

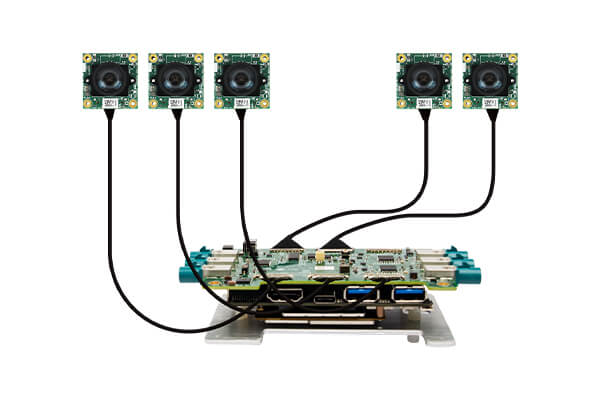

  • Compatible with Qualcomm® Robotics RB5 kit (upto 5 cameras)
  • Uses Qualcomm ® ISP for image processing

Sample Price

ContactUs

e-CAM56_CUQRB5 is a 5 MP MIPI CSI-2 multi-camera that features a 1/1.8" Sony Pregius S IMX568 back-side illuminated image sensor. This camera is designed to seamlessly integrate with Qualcomm® Robotics RB5 development kit and delivers best-in-class image output in uncompressed YUV format.

With a global shutter function, this multi-camera enables distortion-free image capture of moving objects and ensures a high frame rate of 90fps. So, it is ideal for applications like traffic monitoring, factory automation, conveyor monitoring, and Automatic Number Plate Recognition (ANPR). It can support up to six camera modules and comes with a standard M12 lens holder for customers to use customized optics or lenses – depending on their applications.

  • Key features:
    • Frame Rate: 5MP @ 90 fps
    • High-speed MIPI CSI-2 interface
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: MIPI CSI-2
    • Connector: Micro coaxial cable with I-PEX (CN2) connector
    • Cable Length: 30cm (1m*)
  • Sensor features:
    • Sensor: IMX568 from Sony Pregius S
    • Focus Type: Fixed focus
    • Sensor Resolution: 5MP
    • Chroma: Color
    • Shutter Type: Global Shutter
    • Optical Format: 1/1.8"
    • Output Format: RAW Bayer
    • Pixel Size: 2.74 μm x 2.74 μm
    • Sensor Active Area: 2472 (H) x 2064 (V)
    • Array Size: 2472 (H) x 2128 (V)
    • Lens Holder: M12 (S-Mount)
    • DFOV: TBD
  • Electrical & Mechanical:
    • Operating Voltage: 3.3V +/- 5%
    • Operating Temperature Range: -30°C to 70°C
    • Typical power consumption: TBD
    • Size in mm (l x b x h): 30mm x 30mm
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
  • * - 1-meter cable will be available on special request.
  • gstreamer based camera application for:
    • Camera streaming over Ethernet and WIFI (H.264 encoded)
    • HDMI streaming (NV12)
    • Snapshot image capture in JPEG and RAW Bayer
    • H.264 and H.265 encoded video recording
  • Camera Controls:
    • Gamma
    • Denoise
    • Gain
    • Exposure etc.
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
  • e-CAM521_CUMI568C_MOD - 5.0 MP MIPI Camera Module with lens
  • Adaptor board
  • Baseboard
  • Micro coaxial cable
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
e-CAM56_CUQRB5 - Customization for other Application Processor platforms:

e-con provides customization for this e-CAM56_CUQRB5 on any application platform as per customer requirements.

e-CAM56_CUQRB5 Customization:

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization for C/S mount lens holder
  • Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX ORIN/Xavier, ORIN NX/Nano, and any other processor
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.

Targeted Applications

  • Traffic Monitoring

  • Factory Automation

  • Conveyor Monitoring Cameras

  • Automatic Number Plate Recognition (ANPR)
