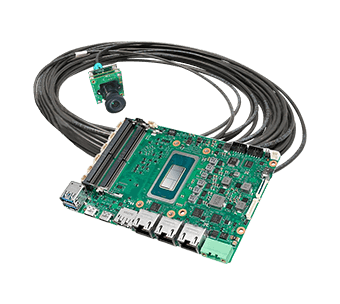

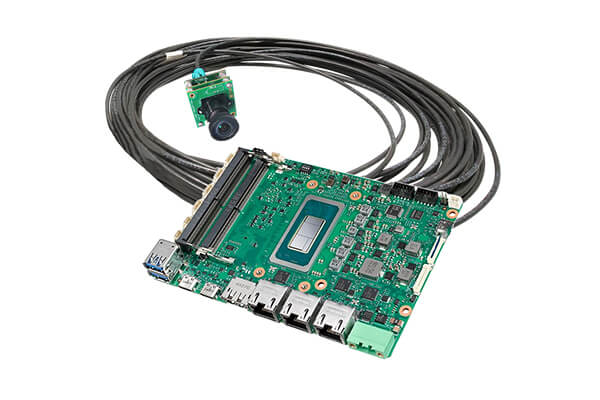

NileCAM81_CUR360 is an 8MP GMSL2 HDR camera solution for the Advantech AFE-R360 Dev kit development kit. This camera is based on the 1/2" AR0821 CMOS image sensor from onsemi® and comes with an inbuilt ISP to produce exceptional image quality in challenging lighting conditions.
This multi-board solution uses the GMSL2 interface to connect to the Advantech AFE-R360 Dev kit development kit. It provides throughputs capable of streaming uncompressed UYVY video data of HD @ 30 fps, Full HD @ 30 fps, and 8MP @ 16fps. This camera also supports still capture at the resolutions HD and FHD.
With a GMSL coaxial cable length of up to 15m, NileCAM81_CUR360 offers great flexibility for product developers and engineers to meet the complex design requirements of autonomous mobile robots, smart traffic devices, fleet management systems, etc.
- Key features:
-
- Frame Rate: Streams 8MP @ 16 fps & Full HD @ 30 fps
- Output format: Uncompressed UYVY format
- High-speed MIPI CSI-2 interface to connect with the CPU
- Lightweight, versatile, and portable design
- Frame Rate: Streams 8MP @ 16 fps & Full HD @ 30 fps
- Interface:
-
- Interface: GMSL2
- Connector: FAKRA connector
- Cable Length: 15m
- Module features:
-
- Sensor: AR0821 from onsemi®
- Focus Type: Fixed focus
- Sensor Resolution: 8MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/2"
- Output Format: Uncompressed UYVY
- Pixel Size: 2.1μm x 2.1μm
- Sensor Active Area: 3848H x 2168V
- Array Size: 3848H x 2168V
- Responsivity: 15.4 ke-/lux-sec
- SNR: 41.8 dB
- Dynamic Range: Max upto 100 dB
- Holder: M12 (S-Mount)
- FOV: 120°(D), 104.8°(H), 58.7°(V) (with the lens provided by e-con)
- Electrical & Mechanical:
-
- Operating Voltage: 3.3V with +/- 5% tolerance
- Operating Temperature Range: - 30°C to 70°C
- Typical power consumption: 1.13W
- Size in mm (l x b): 30 x 30 mm
- Miscellaneous:
-
- Compliance: RoHS, FCC
- gstreamer based camera application for:
-
- Camera streaming over Ethernet and WIFI (H.264 encoded)
- H.264 and H.265 encoded video recording
- Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
NileCAM81_CUR360 - Customization for other Application Processor platforms:
e-con Systems™ provides camera driver development, customization and porting services for NileCAM81_CUR360 on any application platform as per customer requirements.
NileCAM81_CUR360 - Customization
e-con provides customization, development and porting services for the following requirements:
- IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications
- Length of the co-axial cable
- Change of lens to meet your FOV and other requirements
- Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
- Support for other processor platforms
