e-CAM22_CURB - Sony® STARVIS™ IMX462 Ultra Low-Light Camera for Raspberry Pi 4

Raspberry Pi Cameras | Low-light Cameras

Highlights:

  • Houses Full HD Sony Starvis™ Camera Module with S-mount lens holder
  • High-speed MIPI CSI-2 interface to connect with the CPU
  • Compatible with Raspberry Pi 4 kit
  • Ultra low light sensitivity

Sample Price

ContactUs

Documents

Download Document

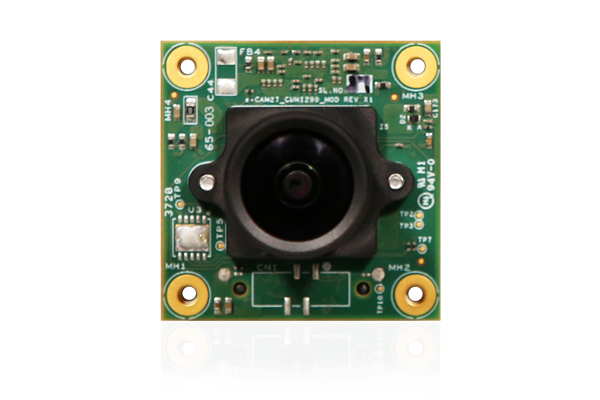

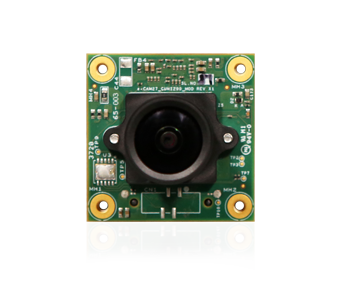

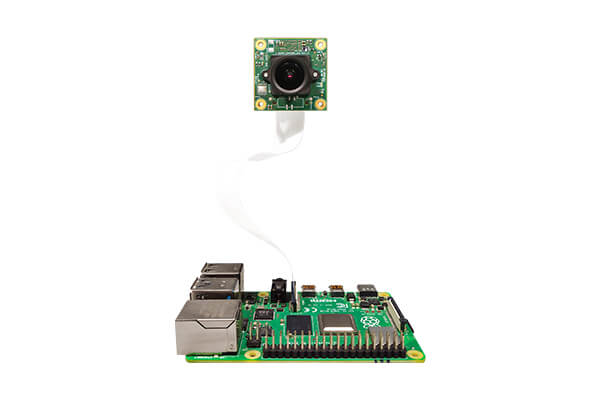

e-CAM22_CURB, is a 2 MP IMX462 camera solution for Raspberry Pi 4. The e-CAM22_CURB camera can be directly connected to the MIPI CSI-2 interface on the Raspberry Pi 4 development kit. This Full HD custom lens camera module is based on the Sony STARVIS® IMX462 CMOS image sensor.

Its interchangeable M12(S-mount) lens allows customers to choose a lens of their choice according to their application needs. The high sensitivity of this camera helps to capture images in extremely low lighting conditions as 0 lux, which makes it suitable for night vision applications and medical microscopes.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate: Streams Full HD @ 30fps & HD@60fps
      Refer pdfDatasheet for complete frame rate details.
    • Uncompressed UYVY streaming
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: MIPI CSI-2
    • Connector: FPC flex cable
    • Cable Length: 15cm
  • Module features:
    • Sensor: IMX462 sensor from SONY® Starvis
    • Focus Type: Fixed focus
    • Sensor Resolution: 2MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/2.8"
    • Output Format: RAW 12-bit
    • Pixel Size: 2.9μm x 2.9μm
    • Sensor Active Area: 1920H x 1080V
    • Array Size: 1937H x 1097V
    • Holder: M12 (S-Mount)
    • FOV: 132.0° (D), 113° (H), 61° (V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 3.3V +/- 5%
    • Operating Temperature Range: - 30°C to 70°C
    • Typical power consumption: TBD
    • Size in mm (l x b x h): 30mm x 30mm
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
Linux camera driver:

The e-CAM22_CURB is a MIPI 2-lane camera and it requires a custom camera driver for Raspberry Pi 4. e-con Systems™ provides the camera driver along with the camera board.

  • V4L2 Linux driver for MIPI CSI-2 camera module:
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
    • yocto build support with econ camera driver and user space application integrated
  • Camera Controls:
    • Brightness
    • Contrast
    • Saturation
    • White Balance (both manual and automatic modes)
    • Gamma
    • Gain
    • Sharpness
    • Exposure (Manual, Automatic)
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download Full HD Camera Documents

e-CAM22_CURB
  • Hardware
    • 2.0 MP MIPI Camera module
    • Adaptor board
    • FPC cable
  • Software
    • Linux
      • Prebuilt images for out of the box evaluation
      • V4L2 - Linux driver source code
      • prebuild yocto and Raspbian images for out of the box Evalution
