e-CAM25_CURZH - Full HD AR0234 Global Shutter Camera for Renesas® RZ/V2H

Highlights

  • Houses e-CAM217_CUMI0234_MOD - Full HD Camera Module with S-mount lens holder
  • Global Shutter
  • Plugs directly into the Renesas® RZ/V2H development kit
  • On-board high performance ISP

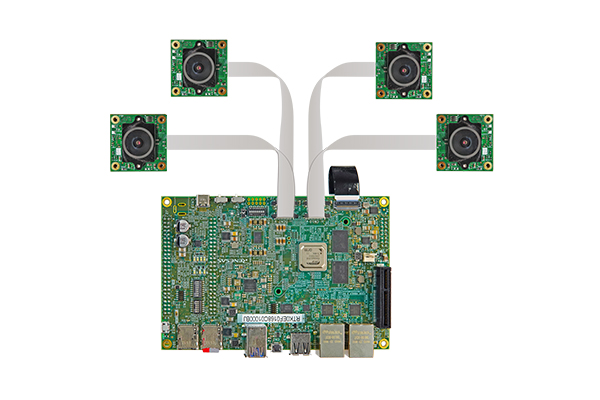

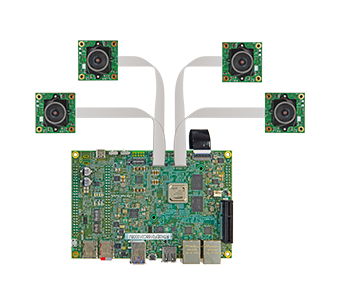

  • Multicamera support for RZ/V2H (upto 4 cameras)

Sample Price

Contact Us

Documents

Download Document

The e-CAM25_CURZH is a Full HD MIPI CSI-2 global shutter camera designed for the Renesas® RZ/V2H development kit. It utilizes a 1/2.6" AR0234CS global shutter sensor, equipped with a fine-tuned image signal processor (ISP).

The e-CAM25_CURZH connects via any one of the connectors (CN7 to CN10) of the Renesas® RZ/V2H development kit. Its global shutter capability, combined with a 120 fps frame rate, minimizes frame-to-frame distortion and reduces motion artifacts, making it ideal for capturing scenes with moving targets.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate:
      • Frame Rate: Streams HD @ 120 fps & Full HD @ 65 fps
      Refer pdfDatasheet for more details.
    • Output format: Uncompressed UYVY
    • High speed 4-lane MIPI CSI-2 interface
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable multi-board solution
  • Interface:
    • Interface: 4-Lane MIPI CSI-2
    • Connector: 22pin FPC connector (Opposite side )
    • Cable length: 15cm
  • Module features:
    • Sensor: AR0234 from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: 2.3MP
    • Chroma: Color
    • Shutter Type: Global Shutter
    • Optical Format: 1/2.6"
    • Output Format: Uncompressed UYVY
    • Pixel Size: 3μm x 3μm
    • SNR: 38 dB
    • Dynamic Range: 71.4 dB
    • Sensor Active Area: 1920H x 1200V
    • Array Size: 1920H x 1200V
    • Holder: M12 (S-Mount)
    • FOV: 128.2°(D), 104.6°(H), 61.6°(V) (with the lens provided by e-con)
  • Electrical and Mechanical:
    • Operating voltage: 3.3V +/- 5%
    • Operating temperature: -30°C to 70°C
    • Typical power consumption - TBD
    • Size in mm (l x b): 30 x 30 mm
  • Miscellaneous:
    • Compliance: RoHS
  • Supported Kernel Version:
    • RZ/V2H AI SDK v5.00 / Kernel 5.10
  • Linux camera driver:
    • V4L2 Linux driver for MIPI CSI-2 camera module:
      • Video preview
      • Still Image capture
      • Camera controls via IOCTLs

Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.

 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download Full HD Camera Documents

Kit Contents
  • e-CAM217_CUMI0234_MOD - Full HD MIPI Camera Module with lens
  • Adaptor board
  • FPC cable (15cm)
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
