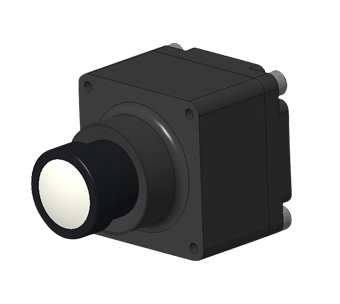

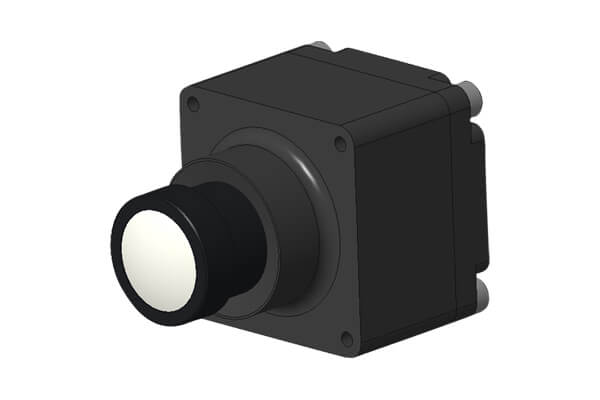

STURDeCAM31 - 3MP Sony® ISX031 120dB HDR Camera for Autonomous Mobility

• Key features:
• • Frame Rate - Streams 1920 x 1536 @60 fps, 1920x1536 @30 fps
    Refer Datasheet for complete frame rate details.
  • Output format: UYVY
  • S-mount IP69K compliant lens focused and glued at factory
  • Lightweight, versatile, and portable design
  • Small form factor
• Interface:
• • Interface: GMSL2™
  • Connector: FAKRA connector
  • Cable Length: 3m by default, Please contact camerasolutions@e-consystems.com for 15m cable
• Sensor features:
• • Sensor: ISX031 from Sony®
  • Focus Type: Fixed focus
  • Focus Distance : 1.28 m to Infinity
  • Sensor Resolution: 3MP
  • Chroma: Color
  • Shutter Type: Electronic Rolling Shutter
  • Optical Format: 1/2.42"
  • Output Format: UYVY
  • Pixel Size: 3μm x 3μm
  • Sensor Active Area: 1937 (H) x 1553 (V)
  • Dynamic Range: Max upto 120 dB
  • Holder: M12 (S-Mount)
  • FOV:
    • 54.04°(H), 42.86°(V), 70.17°(D) (Default lens provided by e-con)
    • 128.7°(H), 98.7°(V), 170.1°(D) (Please contact e-con)
• Electrical & Mechanical:
• • Operating Voltage: 5 to 15V with +/- 5% tolerance
  • Operating Temperature Range: -40°C to 85°C
  • Typical power consumption: 1.324W
  • Size in mm (l x b):
    • Camera With enclosure - 25 x 25 mm
  • Board weight : 40 Grams (with lens)
• Standards and Compliance:
• • FCC Class-B, RoHS
  • For application specific standards, refer here » refer here»
  • IP69K Certified (Dust tight with protection against close-range high pressure, high temperature spray downs)
• Launched on:

Emission standards:

Note: The product has been qualified for above standards with simulated control unit. Final Certification to be performed with targeted system & application.

Part No	Kit Contents	Sample Price (1 Unit)	Purchase
STURDeCAM31_CUOAGX_CXLC_AT_1H03R2	One * STURDeCAM31 - ISX031 3MP GMSL2 HDR camera with IP69K Enclosure One * 70° DFOV Lens One * 3 meters coaxial cable One * Deserializer board with 2 x quad Fakra connectors
STURDeCAM31_CXLC_AT_H03R2	One * STURDeCAM31 - ISX031 3MP GMSL2 HDR camera with IP69K Enclosure One * 70° DFOV Lens One * 3 meters coaxial cable
STURDeCAM31_CXLW_AT_H03R2 *	One * STURDeCAM31 - ISX031 3MP GMSL2 HDR camera with IP69K Enclosure One * 70° DFOV Lens

Please contact camerasolutions@e-consystems.com for information about the customization options, including the 170° wide-angle lens, 15-meter cable and Jetson AGX Xavier platform support.

Note: The new deserializer board with this kit is a must for the camera. Old deserializer boards are not compatible. Refer GMSL cable connection guide to connect the camera with the deserializer board.

* - The IP69K rating is applicable only when the customer utilizes the appropriate IP69K validated GMSL cable with this specific part number.

STURDeCAM31 - Customization and Porting Services for other Application Processor platforms:

e-con Systems® provides camera driver development, customization and porting services for STURDeCAM31 on any application platform as per customer requirements. For any driver customization or porting services or for using this Full HD camera with your application processor platform

STURDeCAM31 - Customization

e-con provides customization, development and porting services for the following requirements:

• Change of lens to meet your FOV and other requirements
• Support to other NVIDIA Jetson platforms from other vendors
• To support other processor platforms
• Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
