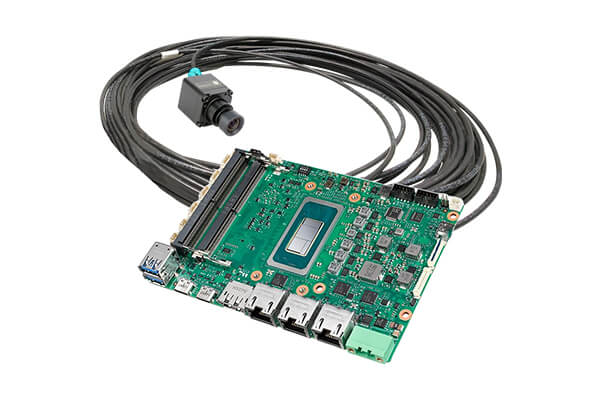

STURDeCAM31_CUR360 - 3MP Sony® ISX031 120dB HDR Camera for Advantech AFE-R360

• Key features:
• • Frame Rate - Streams 1920 x 1536 @60 fps, 1920x1536 @30 fps

  • Output format: UYVY
  • S-mount IP69K compliant lens focused and glued at factory
  • Lightweight, versatile, and portable design
  • Small form factor
• Interface:
• • Interface: GMSL2
  • Connector: FAKRA connector
  • Cable Length: 3m by default, Please contact camerasolutions@e-consystems.com for 15m cable
• Sensor features:
• • Sensor: ISX031 from Sony®
  • Focus Type: Fixed focus
  • Focus Distance : 40cm to Infinity
  • Sensor Resolution: 3MP
  • Chroma: Color
  • Shutter Type: Electronic Rolling Shutter
  • Optical Format: 1/2.42"
  • Output Format: UYVY
  • Pixel Size: 3μm x 3μm
  • Sensor Active Area: 1937 (H) x 1553 (V)
  • Dynamic Range: Max upto 120 dB
  • Holder: M12 (S-Mount)
  • FOV:
    • 54.04°(H), 42.86°(V), 70.17°(D) (Default lens provided by e-con)
    • 128.7°(H), 98.7°(V), 170.1°(D) (Please contact e-con)
• Electrical & Mechanical:
• • Operating Voltage: 5 to 15V with +/- 5% tolerance
  • Operating Temperature Range: -40°C to 85°C
  • Typical power consumption: 1.324W
  • Size in mm (l x b):
    • Camera With enclosure - 25 x 25 mm
  • Board weight : 40 Grams (with lens)
• Miscellaneous:
• • Compliance: Refer to all the supported Standards & Compliance here Standards & Compliance here
  • IP69K Certified (Dust tight with protection against close-range high pressure, high temperature spray downs)

S.No	Certification	Test Specifications
Immunity standards
1	EN 61000-4-2:2011	EN 61000-4-2:2011 Electrostatic Discharge test, (contact: (+/-8kV) Criterion B, air: (+/-15kV)) Criteria B
2	EN 61000-4-3:2020	Radiated, Radiofrequency, electromagnetic field immunity tests (80 - 6000MHz) @ 3V/m intensity
3	EN 61000-4-4:2013	Signal level Electrical Fast Transient/Burst immunity tests, +/-4kV, Criteria B
Road vehicle standards
4	ISO 11452-4:2005 Clause No.7, Road vehicles ISO 11452-2:2004 Clause No. 7, Road vehicles	Component test methods for electrical disturbances from narrowband radiated electromagnetic energy Part 4: Harness excitation methods Part 2: Absorber-lined shielded enclosure
5	ISO 16750-4 Road vehicles ISO 16750-3 Road vehicles	Environmental conditions and testing for electronic equipment. Part 4: Climatic test methods Part 3: Mechanical loads
6	CISPR25:2008-03	Emission according to Road vehicle standards: Vehicles, boats, and internal combustion engines - Radio disturbance characteristics - Limits and methods of measurement for the protection of on-board receivers, 30 MHz to 1000 MH
7	ISO 20653 — 2013	Degrees of protection provided by enclosures IP69K
Emission standards
8	FCC Part 15, Subpart B, Class-B	Test done according to Federal Communications Commission's (FCC) regulations for electronic devices under subpart B
9	CE & ROHS

• gstreamer based camera application for:
• • Camera streaming over Ethernet and WIFI (H.264 encoded)
  • H.264 and H.265 encoded video recording
• Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.

STURDeCAM31_CUR360 - Customization and Porting Services for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for STURDeCAM31_CUR360 on any application platform as per customer requirements. For any driver customization or porting services or for using this Full HD camera with your application processor platform

STURDeCAM31_CUR360 - Customization

e-con provides customization, development and porting services for the following requirements:

• Change of lens to meet your FOV and other requirements
• Support to other NVIDIA Jetson platforms from other vendors
• To support other processor platforms
• Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
